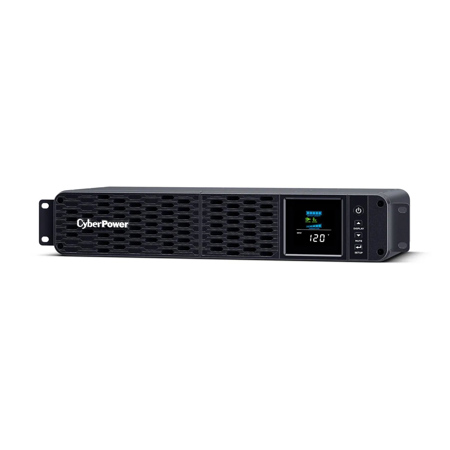

Used CyberPower CP1500PFCRM2U 1500VA/1000W Rackmount PFC Sinewave UPS, 8x NEMA 5-15R

SKU: CUXCY1500PFC

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

CyberPower CP1500PFCRM2U Specifications

General

General

Jump to...
  • Active PFC Compatible

    Yes

  • Energy Saving

    GreenPower UPS Bypass Technology

  • Energy Star Certified

    Yes

  • UPS Topology

    Line Interactive

  • Circuit Breaker

    15 A

  • Cord Length

    6' (1.8m)

  • Input Frequency Range

    57 Hz - 63 Hz

  • Input Plug Type

    NEMA 5-15P

  • Input Voltage Range

    88 VAC - 144 VAC

  • Nominal Input Voltage

    120 VAC

  • Plug Style

    Right Angle - 45 Degree Offset

  • Automatic Voltage Regulation

    Single Boost

  • On AC WaveForm

    Sine Wave

  • On Battery Frequency

    60 Hz +/- 1%

  • On Battery Voltage

    120 VAC +/- 5%

  • On Battery Waveform

    Sine Wave

  • Outlet Type

    8 - NEMA 5-15R

  • Outlets - Battery & Surge Protected

    8

  • Outlets - Total

    8

  • Outlets - Widely Spaced

    2

  • Output Power Factor

    0.7

  • Overload Protection

    Internal Circuitry Limiting

  • Typical Transfer Time

    4 ms

  • Under/Over-Voltage Correction

    0.11

  • VA

    1500 VA

  • Watts

    1000 W

Surge Protection & Filtering

Jump to...
  • EMI/RFI Filtration

    Yes

  • Network Protection RJ45

    1-in / 1-Out (10/100/1000)

  • Surge Suppression (Joules)

    1500 J

Management & Communications

Jump to...
  • Audible Alarms

    Battery Mode
    Low Battery
    Overload
    Fault

  • HID Compliant USB Port

    Yes

  • LCD

    Multifunction LCD

  • LED Indicators

    Wiring Fault

  • Management Cable

    USB Cable

  • SNMP / HTTP Remote Monitoring

    Yes - with optional RMCARD205

  • Serial Port

    1 Dry Contact

  • Software (Free Download)

    PowerPanel Business

Environmental

Jump to...
  • AC Mode Thermal Dissipation

    52 BTU/hr

  • Operating Elevation

    0 - 10000' (0 - 3048m)

  • Operating Relative Humidity

    0 - 95 % (non-condensing)

  • Operating Temperature

    32 - 104 Degree F (0 - 40 Degree C)

  • Storage Elevation

    0 - 50000' (0 - 15239m)

  • Storage Temperature

    5 - 113 Degree F (-15 - 45 Degree C)

Certifications

Jump to...
  • Environmental

    RoHS Compliant

  • Safety

    UL1778
    FCC DOC Class B

Battery

Jump to...
  • Battery Size

    12 V / 9 Ah

  • Battery

    Sealed Lead-Acid Battery

  • Hot Swappable

    Yes

  • Replacement Battery Cartridge

    RB1290X2D

  • Replacement Battery Cartridge Quantity

    1

  • Runtime at Full Load

    3.1 min

  • Runtime at Half Load

    10.2 min

  • Typical Recharge Time

    8 Hours

  • User Replaceable Battery

    Yes

  • Battery Info

    Required, included

  • Battery Material

    Lead acid

  • Battery Type

    Non-universal

  • Battery Quantity

    2

Physical

Jump to...
  • Color

    Black

  • Form Factor

    Rackmount

  • Material

    Plastic

  • Rack Height

    2U

  • Dimensions (W x H x D)

    17 x 3.4 x 10.5" (43.18 x 8.64 x 26.67cm)

  • Weight

    26.8 lbs (12.16kg)

About CyberPower CP1500PFCRM2U 1500VA/1000W Rackmount PFC Sinewave UPS, 8x NEMA 5-15R

Just imagine a reliable and high-performance backup power solution that not only ensures uninterrupted operation of your critical electronic equipment but also offers superior surge protection and EMI/RFI filtration. The CP1500PFCRM2U 1500VA/1000W Rackmount PFC Sinewave UPS is precisely that solution.

Designed for security systems, audio/visual equipment, and networking devices requiring active PFC power source compatibility, this robust UPS system boasts a high capacity of 1500VA and 1000W. It's a durable and efficient choice for those seeking longer backup power periods and space-saving benefits in server rooms or data centers.

This rackmount UPS features Automatic Voltage Regulation (AVR), a technology that corrects minor power fluctuations without switching to battery power, thereby conserving battery life and maintaining a safe voltage level. It also comes with a multifunction control panel with a color LCD, allowing you to quickly confirm status and alerts at a glance.

The CP1500PFCRM2U is not just about power backup; it's also about protecting your equipment. Its surge protection feature diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage. The EMI/RFI noise filter maintains clean power for connected equipment, improving picture and sound quality.

The rackmount design of this UPS system is ideal for installations where space is at a premium. At only 10.5 inches in depth, it fits comfortably in short-depth rack installations. Moreover, it accommodates transformer-sized plugs without blocking other outlets, thanks to its widely spaced outlets.

This UPS system is an ENERGY STAR certified model, a testament to its energy efficiency. It also features the GreenPower UPS Bypass Design, a patented design that allows utility power to bypass the UPS transformer when AC power is stable, reducing energy consumption, noise, and heat buildup.

The CP1500PFCRM2U also comes with PowerPanel Business Software, providing IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality, making it a versatile choice for modern IT environments.

In conclusion, the CP1500PFCRM2U 1500VA/1000W Rackmount PFC Sinewave UPS is a reliable, durable, high-performance, efficient, and robust power backup solution. It's designed to keep your critical electronic equipment running smoothly and safely, even in the event of power disruptions.

CyberPower CP1500PFCRM2U 1500VA/1000W Rackmount PFC Sinewave UPS, 8x NEMA 5-15R Features

  • Capacity: 1500VA / 1000W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 120Vac +/- 5%
  • Runtime (half/full): 10.2 minutes / 3.1 minutes
  • Plug type & cord: NEMA 5-15P, 6' cord
  • Outlets: 8 surge + battery backup
  • Outlet types: 8 x NEMA 5-15R
  • Communication: USB, SNMP
  • Data line protection: Network
  • Management software: PowerPanel Business
  • Remote management: Yes, with optional RMCARD205
  • ENERGY STAR certified: Yes
  • Connected Equipment Guarantee: $500,000

Key Features

  • Ensure uptime with this 1500VA CyberPower UPS, perfect for rackmount servers and critical devices.
  • Pure sine wave output safeguards sensitive electronics; ideal UPS backup for PFC power supplies.
  • Get 1000W power protection with 8 NEMA 5-15R outlets; keep your devices running during outages.
  • This line interactive UPS boasts GreenPower UPS Bypass tech for energy savings and efficiency.
  • Enjoy remote monitoring via optional SNMP/HTTP; manage your UPS system with ease and confidence.
  • Replace batteries easily with hot-swappable design; minimizes downtime for critical power systems.
