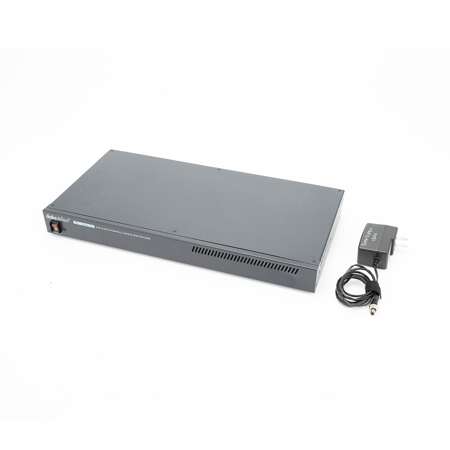

Used Datavideo SE-1200MU 6 Input HD Digital Video Switcher with SDI and HDMI Inputs

The SE-1200MU is a cutting-edge 6 input HD switcher from Datavideo that is specifically designed for remote switching and dual-Chroma keying. This is the first switcher in the world that is capable of streaming the multi-view as well as controlling it via Ethernet network. Producing city council meetings, worship seminars and corporate conferences without having to physically be on location is now possible. It is housed in a 1 RU rack chassis allowing you to install it in a rack with the rest of your production equipment.

SE-1200MU includes 4 SDI and 2 HDMI inputs and supports 1080i and 720p resolutions with embedded audio. Internal frame synchronizers on the SE-1200MU allow you to use sources without gen-lock such as consumer HDMI cameras or even computers for live PowerPoint presentations. Also included are 2 assignable SDI and 2 HDMI outputs for connecting an HD recorder, monitor and a streaming encoder, plus two Balanced XLR audio inputs for connecting external audio mixers. Other features include dual Chroma key, Lumakey, DSK, PIP, still stores, audio delay, tally and an RJ-45/RS-232 remote control interface.

Whether you are filming a seminar or conference, conducting a live broadcast or shooting inside a production studio, the Datavideo SE-1200MU HD video switcher enables you to switch seamlessly between video sources and mix high-quality digital content on the fly.

Motion JPEG Multi-view Streaming
Remote streaming of multi-view output using built-in Motion JPEG encoder

Upstream Keyer
2 upstream keyers, supporting dual-Chroma key and linear/luma key

Downstream Keyer
2 downstream keyers, supporting linear and luma key modes

Wipe Generator
32 wipe patterns, including circle & heart, borders & softness control

Transitions
Wipe, mix and cut transitions

M/E Previewing
Full M/E preview function

Picture-in-Picture
1 PiP (assignable to any of the 4 keyers)

Assignable Outputs
Each sdi output can be switched in the menu as: program (w/ dsk), clean program (w/o dsk), clean preview (w/o dsk), multiscreen, input 1-6

XPT
Cross Point Assignment

Frame/Still Store
Any input can be used as a frame store. Up to 24 images stored on SD card

PC & Tablet Control
PC & tablet control also available

Tally
Tally output

GPI
GPI output

Rack-Mountable
1U rack mount.
