Used Datavideo TC-200 & CG-200 HD/SD Character Generator Kit for Windows 7/8, Includes Power Supply, Installation Disc
SKU: US1736499
This item is no longer available.
Recommended Items
Share:
Overview
Compare
Specs
Protection
About Datavideo TC-200 & CG-200 HD/SD Character Generator Kit for Windows 7/8, Includes Power Supply, Installation Disc
Datavideo's CG-200 and TC-200: an innovative HD CG system for mobile broadcasting, live conferences and dynamic video presentations. Using a standard laptop, it enables users to create and deliver attractive on-screen graphics and titles in real-time. It is easy to operate, designed to be intuitive and responsive under the pressure of a live event.
CG-200 and TC-200 works with standard Windows laptops with an HDMI interface and supports vision mixers with and without a DSK. Until now, real-time PC titling software has required an additional SDI adapter card to be fitted into a desktop PC. For live programming on location, a computer-based character generator can be problematic, in terms of the physical bulk of the PC, the need for an additional screen and the power requirement. CG-200 and TC-200 makes professional CG on the run a reality.
DSK mode
As software only, CG-200 and TC-200 can work with a vision mixer equipped with a DSK. In this mode, CG-200 and TC-200 can be set up as the key source or fill source. It can work with any vision mixer (such as the Datavideo SE-2800 and SE-3000) that has a downstream keyer (DSK).
Overlay mode

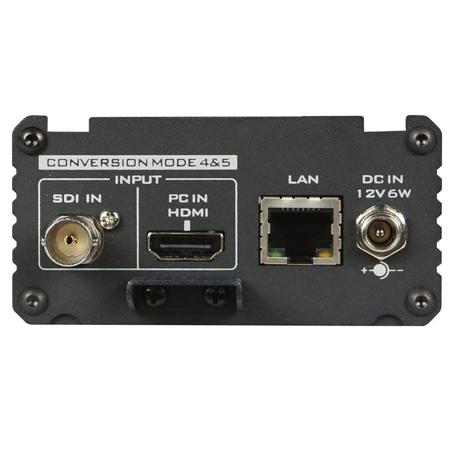

The Title Overlay mode overcomes the lack of a DSK in the vision mixer. Using the small external TC-200 hardware unit, The HDMI output from the laptop is embedded with the SDI output from a camcorder, VTR or vision mixer.
• Live Title Generator
• No additional PCI card required SDI overlay function (with optional TC- 200)
• Support HD/SD SDI input and output in Overlay mode
• Supports HD video with 1080i 50/ 59.94/60; 720p 50/59.94/60
• Supports SD video: 576i/480i
• Title editing on laptop
• Compatible with Windows 7/8
• Supports all Windows fonts
• Multi-language support
• Supports animation including JPG, TAG, GIF, BMP, PNG
• Supports scrolling
• Title editing patterns include Slide, Reveal,etc.
• Easy logo set up
• TC-200 working voltage is 7-15V. It can be used with 7.2V & 14.4V batteries
