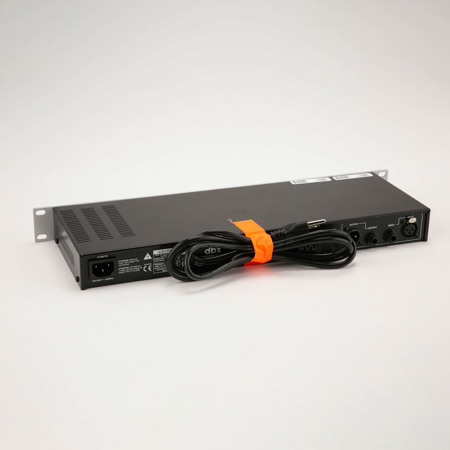

Used DBX 131s Single Channel 31-Band Graphic Equalizer

SKU: US1669076

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

DBX 131s Graphic Equalizer Specifications

  • Input: Connector

    1/4" TRS, female XLR (pin 2 hot)

  • Input: Type

    Electronically balanced/unbalanced, RF filtered

  • Input: Impedance

    Balanced 40k ohm, unbalanced 20k ohm

  • Max Input Level

    >+21dBu balanced or unbalanced

  • Input: CMRR

    >40dB, typically >55dB at 1kHz

  • Output: Connector

    1/4" TRS, male XLR (pin 2 hot)

  • Output: Type

    Impedance-balanced/unbalanced, RF filtered

  • Output: Impedance

    Balanced 100 ohm, unbalanced 50 ohm

  • Max Output Level

    >+21dBu balanced/unbalanced into 2k ohm or greater+18dBm balanced/unbalanced (into 600 ohm)

  • Bandwidth

    20Hz to 20kHz, +0.5/-1dB

  • Frequency Response

    <10Hz to >50kHz, +0.5/-3dB

  • Dynamic Range

    Typically >112dB

  • Signal-to-Noise

    Typically >95dB

  • THD + Noise

    <0.003%

  • Interchannel Crosstalk

    <-90dB, 20Hz to 20kHz

  • EQ Bypass

    Bypasses the graphic equalizer section in the signal path

  • Low Cut

    Activates the 50Hz 12dB/octave high-pass filter

  • Range

    Selects either +/- 6dB or +/-12dB slider boost/cut range

  • Operating Voltage

    100-240VAC 50/60Hz

  • Power consumption

    15W

  • Mains Connection

    IEC receptacle

  • Dimensions (H x D x W)

    1.75" x 6" x 19" (4.4 x 15.24 x 48.26 cm)

  • Weight

    4.8 lbs.(2.2 kg)

About DBX 131s Single Channel 31-Band Graphic Equalizer - SKU#1669076

Where professional sound quality and precision control meet, you'll find the dbx 131s Single Channel 31-Band Graphic Equalizer. This high-quality audio device offers a broad frequency response from 10 Hz to 50 kHz, ensuring a comprehensive range for sound equalization. With its 31-band single channel configuration, it provides advanced control over your audio, allowing for meticulous adjustments to each frequency band.

The dbx 131s features 1/3-octave equalization and a switchable +/-6 dB or +/-12 dB boost/cut range, giving you the power to fine-tune your sound to perfection. The 20mm nonconductive sliders offer smooth, precise control, while the intuitive user interface makes operation a breeze, even for the most complex audio setups.

In addition to its powerful features, the dbx 131s Graphic Equalizer boasts an impressive 110 dB dynamic range, ensuring that your sound maintains its quality across all volume levels. The device's rugged reliability and high-quality componentry are hallmarks of the dbx brand, promising long-lasting durability and exceptional performance.

Whether you're a professional sound engineer or an audiophile seeking the best in audio equipment, the dbx 131s Single Channel 31-Band Graphic Equalizer delivers the precision, control, and high-quality sound you need to always sound your best.

DBX 131s Single Channel 31-Band Graphic Equalizer - SKU#1669076 Features

  • Single 31-band, 1/3-octave Constant Q frequency bands
  • Switchable boost/cut ranges of +/-6 or +/-12dB
  • 12dB per octave, 3dB down @ 50Hz low-cut filter
  • Front panel bypass switch
  • +/-12 dB input gain range
  • 4-segment LED ladders for monitoring output levels
  • XLR and TRS Inputs and Outputs
  • Frequency Response of less than 10Hz to more than 50kHz
  • Dynamic range of greater than 108dB

What's in the box:

  • dbx 131s Single Channel 31-Band Graphic Equalizer
  • Power Cable
