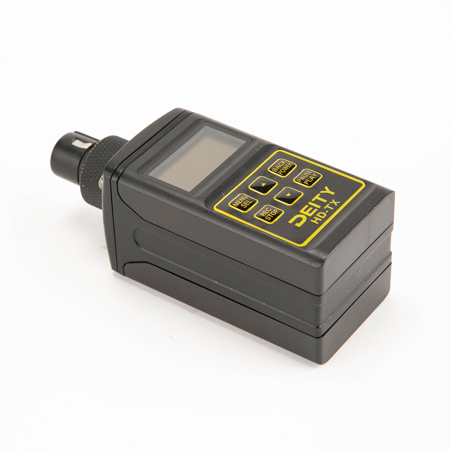

Used Deity Microphones HD-TX XLR Transmitter and Audio Recorder

Do More, Carry Less
We wanted to create a transmitter that would combine several critical tools that we all carry in our sound kits into the ultimate multi-tool. There have been transmitters with recorders built-in, but none have ever allowed you to monitor the recording and files using headphones plugged into the device.

You wouldn't use a camera without a monitor, why would you record audio if you can't hear it?

Record Safely
We know data loss is a huge deal. That is why we added three safeguards to help prevent you from losing your valuable recorded audio files. The first safeguard we built into the HD-TX a built in battery. This eliminates the fear of sudden power failure from a battery door being opened or the use of mislabeled batteries. Secondly the HD-TX can predict the internal lithium battery's power depletion curve so it knows when the battery is about to die, automatically saving the current recording before powering down the unit. Lastly we made it so that even if the power button is pressed in the middle of a recording the unit will stop the recording, save the file to the micro SD card, and then power down. Using the HD-TX screen and button lock can prevent even this last type of user error.

• Max Card Size - 128Gb
• Card Type - microSD
• Card Format - FAT32, exFAT
• Max File Size - 2Gb automatically keeps recording and creates new file
• File Type - 24bit/48kHz Uncompressed PCM WAV File

Internal testing gave us +10Hrs of run time when transmitting at 50mW, recording, and having phantom power enabled to power a Deity S-Mic 2S.

On-Board File Management
The HD-TX allows you to playback files, rename them, and delete takes.

File names are determined by the USER ID assigned to the HD-TX so if multiple units are being used file management in post production will be easier to keep organized.
