DJI Goggles Integra

Picture does not represent the actual item
See what's in the box

See all DJI items

Used DJI Goggles Integra

SKU: US1729821
(3)

This item is no longer available.

Recommended Items

DJI Foam Padding: Picture 1 regular
DJI Foam Padding for Goggles Integra
$25.00
DJI Goggles 3: Picture 1 regular
DJI Goggles 3
$590.00
DJI Goggles N3: Picture 1 regular
DJI Goggles N3
$229.00
Overview
Compare
Learn
Specs
Protection

Reviews about this item

Review Summary

2023-08-17T15:37:28

Rated 5 out of 5

Great value

Love this setup

JOE B.

2023-05-24T17:14:44

Rated 5 out of 5

Satisfied

It is exactly what I ordered but with my drone it is a little difficult to set up but I'll figure it out eventually cool beans

RENATO G.

2023-05-10T01:41:53

Rated 4 out of 5

Almost perfect

So I've used many headset over the years. This one is replacing a V2 goggle. Imagine quality is amazing with minimal latency. They are light and battery pack balances out the overall weight and feel. If the foam used was better then I would have given it a 5 star. The padding is poor but nothing an aftermarket foam pad can't fix. I would highly recommend this headset

MAURICIO S.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

DJI Goggles Integra Specifications

Goggles

Goggles

Jump to...

  • Model

    RCDS13

  • Screen Size (single screen)

    0.49" (12.44mm)

  • Resolution (single screen)

    1920 x 1080

  • Refresh Rate

    Up to 100 Hz

  • IPD Range

    56-72mm

  • FOV (single screen)

    44 Degree

  • Video Recording Format

    MOV

  • Supported Video Playback Formats

    MP4, MOV (video formats: H.264, H.265; audio formats: AAC, PCM)

  • Operating Temperature

    14 Degree to 104 Degree F (-10 Degree to 40 Degree C)

  • Power Input

    Built-in battery

  • Supported SD Cards

    microSD (up to 512GB)

  • Recommended microSD Cards

    SanDisk Extreme U3 V30 A1 32GB microSDXC
    SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
    Lexar 1066x U3 V30 A2 64GB microSDXC
    Lexar 1066x U3 V30 A2 128GB microSDXC
    Lexar 1066x U3 V30 A2 256GB microSDXC
    Lexar 1066x U3 V30 A2 512GB microSDXC
    Kingston Canvas Go! Plus U3 V30 A2 64GB microSDXC

  • Recommended microSD Cards (Contd.)

    Kingston Canvas Go! Plus U3 V30 A2 128GB microSDXC
    Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
    Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
    Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
    Samsung EVO Plus U3 V30 A2 512GB microSDXC

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions (L x W x H)

    With antennas folded: 6.69 x 4.09 x 2.93" (170 x 104 x 74.44mm)
    With antennas unfolded: 8.07 x 4.09 x 4.09" (205 x 104 x 104mm)

  • Weight

    Battery included: 14.46 oz (410g) (Approx.)

Video Transmission

Jump to...

  • Video Transmission

    When used with different aircrafts, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft.
    DJI Avata: O3+

  • Operating Frequency

    2.4000-2.4835 GHz
    5.725-5.850 GHz
    The 5.8 GHz frequency band is currently banned in certain countries or regions. For details

  • Transmitter Power (EIRP)

    2.4000-2.4835 GHz:
    < 30 dBm (FCC)
    < 20 dBm (CE/SRRC/MIC/KC)
    5.725-5.850 GHz:
    < 30 dBm (FCC)
    < 23 dBm (SRRC)
    < 14 dBm (CE/KC)

  • Transmission Latency

    1080p/100fps: as low as 30 ms
    1080p/60fps: as low as 40 ms
    Measured in an open outdoor environment without interference. Actual data varies with different aircraft models.

  • Max Transmission Distance

    When used with different aircraft, the goggles will automatically select the corresponding firmware to match the video transmission specification of the aircraft.

    DJI Avata:
    12 km (FCC)
    6 km (CE/SRRC/MIC)
    DJI O3 Air Unit:
    10 km (FCC)
    2 km (CE)
    6 km (SRRC)
    Measured in an open outdoor environment without interference. Actual data varies with operating environment.

  • Max Video Bitrate

    50 Mbps
    Measured in an open outdoor environment without interference. Actual data varies with operating environment.

Battery

Jump to...

  • Capacity

    2450 mAh

  • Voltage

    5.6-8.4 V

  • Type

    Li-ion

  • Chemical System

    LiNiMnCoO2

  • Energy

    17.64 Wh

  • Charging Temperature

    41 Degree to 113 Degree F (5 Degree to 45 Degree C)

  • Max Charging Power

    15 W (charging when powered off)

  • Operating Time

    Approx. 2 hours
    Measured with an ambient temperature of 77 Degree F (25 Degree C), screen brightness at 4, connection to DJI Avata, the video transmission mode set to 1080p/100fps, head tracking off, and the goggles' battery fully charged and not supplying power to external devices such as smartphones.

  • Dimensions (L x W x H)

    4.72 x 1.92 x 2.79" (120 x 48.8 x 71mm)

  • Weight

    Headband included: 6.52 oz (185g) (Approx.)

Related Articles & Videos

DJI Avata FPV Drone

DJI Avata FPV Drone

Read more

About DJI Goggles Integra

FEATURED REVIEWS

Great value

By JOE B.

Love this setup

Satisfied

By RENATO G.

It is exactly what I ordered but with my drone it is a little difficult to set up but I'll figure it out eventually cool beans

DJI Goggles Integra
Soak up the sky with DJI Goggles Integra, and extend your experience with DJI Avata and DJI RC Motion 2 for acute control and immersive, first-person flight.

Combined for Convenience
The lightweight DJI Goggles Integra adopts an integrated design that combines headband and battery into one, getting rid of pesky cables and allowing you to effortlessly take the goggles on and off.

The built-in battery headband feels lightweight, balanced, and comfortable to wear.

DJI Goggles Integra can be used while charging and will stay powered through several full-battery drone flights. So you can keep soaring all day.

• Total Weight Approx. 410 g
• Antenna Design Foldable
• Max Operating Time Two hours

HD Display
DJI Goggles Integra is equipped with two HD Micro-OLED screens to deliver true-to-life colors and highlight-shadow details. The high screen refresh rate presents the fun of flight in a smoother and more fantastic manner.

• Display Technology Micro-OLED
• Screen Resolution 1080p
• Max Brightness 700 nits
• Max Screen Refresh Rate 100 Hz
• Supported CODEC Formats H.264 and H.265

TUV Rheinland Low Blue Light Certification
DJI Goggles Integra presents HD display quality while protecting your eyes with a comfortable experience.

Ultra-Low Latency, Smooth, and Stable Video Transmission
DJI Goggles Integra is equipped with DJI O3+ video transmission, boasting latency as low as 30 ms. The goggles automatically switch between 2.4GHz and 5.8GHz frequency bands to keep a stable signal for a fluid, immersive HD viewing experience with minimal interference.

New SyncSmooth technology produces smooth, fluent video transmission for high-speed aerial photography. The tracking effect of the goggles display frame aligning with the video transmission frame is optimized to cut down video transmission latency and fluctuations. Viewing footage with DJI Goggles Integra is also easier on the eyes, effectively reducing visual fatigue and dizziness.

• Lowest Video Transmission Latency 30 ms
• Auto Frequency Band Selection 2.4 GHz or 5.8 GHz

Share the Sky
Connect DJI Goggles Integra with the DJI Fly app on your smartphone to display a real-time camera view to your goggles and smartphone simultaneously. Share the view with friends to enjoy stunning and immersive flight together.

DJI Goggles Integra Features

  • Lightweight and Portable
  • Integrated Design
  • Micro-OLED Screens
  • DJI O3+ Video Transmission
  • HD Low-Latency

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

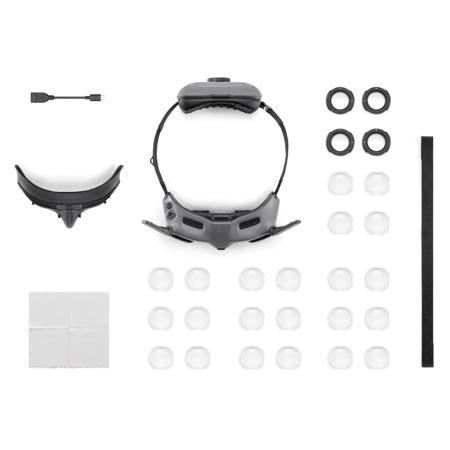

What's in the box:

  • DJI Goggles Integra
  • Battery
  • USB-C OTG Cable
  • 4x Goggles Integra Eyeglass Frames
  • 22x Goggles Integra Corrective Lenses
  • Goggles Integra Top Headband
  • Original Box
  • Item Note: Missing Lens Cleaning Cloth
