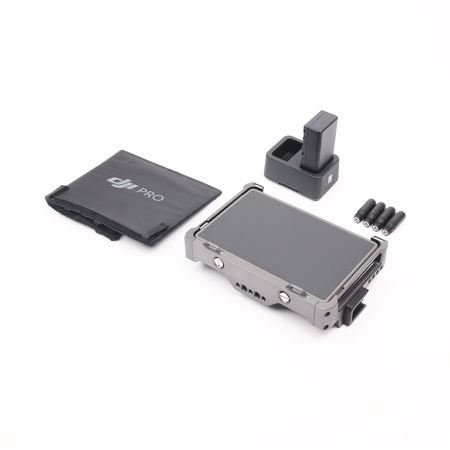

Used DJI High-Bright Remote Monitor for Ronin 4D

SKU: VDMDJIHBRMMO
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

DJI Remote Monitor Specifications

General

General

Jump to...
  • Compatibility

    Ronin 4D

Display

Jump to...
  • Panel Type

    LCD

  • Size

    7" (17.78cm)

  • Resolution

    1920 x 1200

  • Maximum Brightness

    1500 cd/sq. m

Input/Output

Jump to...
  • USB

    1x USB Type-C (USB 3.1 / 3.2 Gen 1) Integrated Male Input/Output

  • Video

    1x HDMI Type A Input

  • Audio

    1x 1/8" (3.5mm) Output

  • Media/Memory Card Slot

    Single Slot: microSD/microSDHC

Environmental

Jump to...
  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -4 to 140 Degree F (-20 to 60 Degree C)

  • Power Source

    Battery

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Mounting

    Multiple x 1/4"-20

  • Dimensions

    Includes Cage: 8.5 x 6.5 x 2.3" (216 x 166 x 58mm)

About DJI High-Bright Remote Monitor for Ronin 4D

You can elevate your filmmaking vision with the DJI High-Bright Remote Monitor, a high-quality, durable, and portable device specifically designed for the Ronin 4D setup. This advanced monitor is your key to collaborative filmmaking, providing instant access to live footage, remote focus capabilities, and precise gimbal adjustments.

Experience an impeccable visual display on a 7" screen that perfectly balances handheld convenience with high-resolution clarity. With a remarkable resolution of 1920 x 1200, every frame is distinct and detailed. The monitor's impressive 1500 nits brightness ensures optimal viewing in both bright outdoor settings and subdued indoor environments.

Stay powered up with the monitor's versatile power options. Harness energy directly from the gimbal with a dedicated power cable, or utilize the reliable DJI WB37 battery. An additional L-series adapter offers further flexibility, ensuring you're always ready for action.

Enjoy unmatched video transmission with the monitor's superior capabilities. It supports two distinct modes: Broadcast mode, which accommodates an unlimited number of receivers for larger crew setups, and Control mode, designed for synchronized operation of two receivers.

Seamlessly connect the monitor to a range of devices, including the Ronin 4D handgrips, DJI Master Wheels, DJI Force Pro, or the innovative DJI Three-Channel Follow Focus. This monitor is not just for viewing; it's a control hub. From remote focusing to camera adjustments and motion control via the built-in gyro sensor, you can command every move of the Ronin 4D gimbal.

The DJI High-Bright Remote Monitor is packed with features that revolutionize filmmaking. Its 7" wide color gamut touchscreen display supports both HDMI and SDI signal outputs. Utilize the Mirror Control Mode for synchronized operations and remote parameter settings. The customizable LUT, paired with an independent LUT for real-time monitoring, enhances visual accuracy. With focus and exposure assistance tools and independent monitoring of HDMI input, this monitor is a beacon for next-generation cinematography.

Join the cinematic evolution with the DJI High-Bright Remote Monitor, a tool that promises to transform every shoot and fulfill the needs of filmmakers.

DJI High-Bright Remote Monitor for Ronin 4D Features

  • Optimized for Ronin 4D setup with seamless wireless feed integration
  • 7" compact design with 1920 x 1200 high-resolution clarity
  • Stellar 1500 nits brightness for versatile indoor and outdoor usage
  • Direct power option via gimbal or through DJI WB37 battery compatibility
  • L-series battery utilization with provided adapter
  • Advanced video transmission with Broadcast and Control modes
  • Compatibility extends to DJI Master Wheels, DJI Force Pro, and the latest DJI Three-Channel Follow Focus
  • In-built gyro sensor for converting the monitor into a Ronin 4D gimbal remote motion controller

Key Features

  • Experience crystal-clear visuals on the 7" DJI monitor with its impressive 1920x1200 resolution.
  • The High-Bright Remote Monitor's 1500 cd/sq. m brightness ensures vibrant images, even outdoors.
  • Seamlessly connect via HDMI for high-quality video input on this Ronin 4D video monitor.
  • Enjoy flexible mounting options with multiple 1/4"-20 threads for diverse shooting scenarios.
  • This monitor includes a reliable battery, so you're always ready to capture the perfect shot.
  • Operate confidently in various conditions; this video monitor functions from 32 to 104°F.
