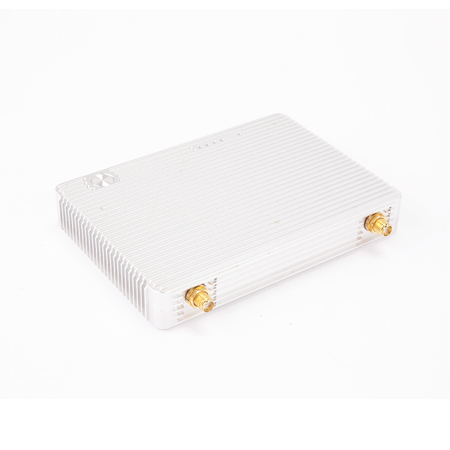

DJI Lightbridge: Picture 1 thumbnail
DJI Lightbridge: Picture 2 thumbnail
DJI Lightbridge: Picture 3 thumbnail
DJI Lightbridge: Picture 4 thumbnail
DJI Lightbridge 2.4G Full Hd Video Downlink 1.7Km Transmission Distance #1543249

Picture does not represent the actual item
See what's in the box

See all DJI items

Used DJI Lightbridge 2.4G Full HD Video Downlink, 1.7Km Transmission Distance, 100mW EIRP

SKU: US1543249
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

DJI Lightbridge Specifications

  • Transmission Dist (Outdoor & Unobstruct)

    1.7Km

  • EIRP

    100mW

  • Receiver Sensitivity(1%PER)

    -101dBm +/-2dBm

  • Working Frequency

    2.4GHz ISM

  • Air System Antennas Gain

    2.0+/-0.7dBi at 2450MHz

  • Ground System Antennas Gain

    5.0+/-0.7dBi at 2450MHz

  • Operating Temperature

    -10-50deg.C

  • Flight Controller

    Professional Aerial Creation: A2, WooKong-M
    Intermediate Or FPV Flying: Naza-M V2

  • Flying Platform

    Professional Aerial Creation: S800 EVO, S1000
    Intermediate Or FPV Flying: Flame Wheel F450/F550, Phantom 2

  • Gimbal System

    Professional Aerial Creation: Zenmuse Z15-BMPCC, Z15-5D, Z15-GH3
    Intermediate Or FPV Flying: Zenmuse H3-2D, Zenmuse H3-3D

  • Antenna Connector

    MMCX Male (air system), SMA Male (ground system)

  • Air System Operating Voltage

    3S-6S

  • Ground System Operating Voltage

    3S-6S

  • Air System Operating Amperage

    700mA +/-20mA( at 12V)

  • Ground System Operating Amperage

    600mA +/-10mA( at 12V)

  • Video Input Format

    AV
    PAL25
    NTSC30

  • HDMI

    720p50
    720p60
    1080i50
    1080i60
    1080p25
    1080p30
    1080p50
    1080p60

  • Recommended Mobile Device

    Samsung Galaxy Note3 QCOM, N9005, N9006
    Samsung Galaxy Note3 Exynos, N900
    Samsung Galaxy S4
    Samsung Galaxy Mega
    Optimus G Pro
    LG Electronics
    LG Electronics G2
    Sony Xperia Z (L36h)
    Sony Xperia Z Ultra (XL36h)

  • Dimension (L x W x H)

    Air System: 68 x 48 x 21mm / 2.67 x 1.88 x 0.82"
    Ground System: 125 x 90 x 20mm / 4.92 x 3.54 x 0.78" (No Antennas)

  • Gross Weight

    Air System: 71g / 2.5oz
    Ground System: 295g / 10.4oz (No Antennas)

About DJI Lightbridge 2.4G Full Hd Video Downlink 1.7Km Transmission Distance #1543249

The DJI Lightbridge is an all new revolutionary 2.4G Full HD digital video downlink. The DJI Lightbridge offers extremely powerful equipment packed into a small and light-weight form factor. By offering 1920 x 1080p at 30fps video data transmission from up to 1.7km (1.05miles) away, it's the ideal solution for the professional aerial photographer and FPV users.

Dual Video Input Support
DJI Zenmuse HD gimbal input support. Simultaneous HDMI and AV input support allows pilot monitoring and camerawork at the same time using just one system.

Advanced Security
Encryption ensures only authorized devices receive data. Encryption can be set up through the Lightbridge app. Multiple downlinks can be connected for parallel streaming. Each can work independently without interference.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • DJI Ground System
  • 2x Ground System Antennas
  • Charger
  • 2x International Plugs
  • 2x Remote Controller Cables
  • 2x Rectangle Headed Training Port Cables
  • 2x Air System Panel Antennas
  • Gimbal Cable
  • HDMI Cable
  • Air System Power & CAN Cable
  • Original Box
  • Item Note: Dead internal battery; No Power; May have additional issues; Cosmetic Condition is Average; SOLD AS-IS; FOR PARTS ONLY; FINAL SALE
