Used DJI Mavic 3 Enterprise Thermal Drone

SKU: US2010108 MFR: CB.202509033389
Earn VIP Reward Points

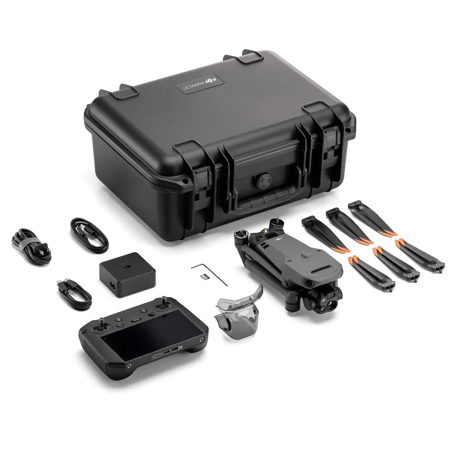

What`s in the box:

    See more

    Key Features

    • Capture stunning visuals with the DJI Mavic 3 Thermal Drone's 4K video resolution
    • Utilize thermal imaging for inspections & search operations with this enterprise drone
    • Fly farther with a max transmission range of 15km, ensuring reliable drone control
    • Experience extended air time with a 45-minute maximum flight time for drone missions
    • Navigate complex environments confidently using advanced obstacle avoidance systems
    • Get crystal-clear images with the 48MP camera, perfect for detailed drone surveys
    See More Product Details

    INCLUDES FREE WARRANTY

    • This used item comes with a free 1-year warranty. ?
    Overview
    Compare
    Specs
    Protection

    Reviews about this item

    Review Summary

    DJI MAVIC 3 ENTERPRISE Specifications

    General

    General

    Jump to...
    • Number of Rotors

      4

    • Configuration

      Drone Kit

    • Edition

      Thermal

    • FAA Registration (Non-Commercial Usage)

      Required

    • Features

      Thermal Camera, Camera Included

    • Kit Style

      Base

    • Model

      DJI Mavic 3 Thermal

    • Skill Level

      Enterprise

    Aircraft

    Jump to...
    • Color

      Black

    • Maximum Flight Time

      45 minutes

    • Takeoff Weight

      2.31 lbs (1.05kg)

    • Max Ascent/Decent Speed

      Ascent:
      6m/s (Normal Mode)
      8m/s (Sport Mode)

      Descent:
      6m/s (Normal Mode)
      6m/s (Sport Mode)

    • Max Horizontal Speed

      47 mph / 75.6 km/h

    • Max Wind Speed Resistance

      12m/s

    • Max Takeoff Altitude

      19685.04' (6000m) (without payload)

    • Max Hovering Time

      38 minutes

    • Max Tilt Angle

      30 Degree (Normal Mode)
      35 Degree (Sport Mode)

    • Max Flight Distance

      32km

    • Max Angular Velocity

      200 Degree /s

    • Global Navigation Satellite System

      Drone:
      GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)

      RC Pro Enterprise:
      GPS+Galileo+GLONASS

    • Hovering Accuracy Range

      Vertical: +/-0.1m (with Vision System); +/-0.5m (with GNSS); +/-0.1m (with RTK)
      Horizontal: +/-0.3m (with Vision System); +/-0.5m (with High-Precision Positioning System); +/-0.1m (with RTK)

    • Operating Temperature

      14 Degree to 104 Degree F (-10 Degree to 40 Degree C)

    • Internal Storage

      RC Pro Enterprise:
      64GB

    • Recommended microSD Cards

      Remote Controller:
      SanDisk Extreme PRO 64GB V30 A2 microSDXC
      SanDisk High Endurance 64GB V30 microSDXC
      SanDisk Extreme 128GB, 256GB, 512GB V30 A2 microSDXC
      Lexar 667x 64GB V30 A2 microSDXC
      Lexar High-Endurance 64GB, 128GB V30 microSDXC
      Lexar 667x 256GB V30 A2 microSDXC
      Lexar 512GB V30 A2 microSDXC
      Samsung EVO Plus 64GB, 128GB V30 microSDXC

    Remote Controller

    Jump to...
    • Operating Temperature

      14 Degree to 104 Degree F (-10 Degree to 40 Degree C)

    • Remote Controller

      with Remote Controller

    • Max Operating Time

      Approx. 3 hours

    • Camera Still Resolution

      12 MP, 48 MP

    • Video Resolution

      4K

    • Image Sensor

      Wide Camera:
      1/2" CMOS, Effective pixels: 48 MP

      Tele Camera:
      1/2" CMOS, Effective pixels: 12 MP

      Thermal Camera:
      Vanadium Oxide (VOX) Sensor

    • Lens

      Wide Camera:
      FOV: 84 Degree
      Format Equivalent: 24mm
      Aperture: f/2.8
      Focus: 1m to Infinite

      Tele Camera:
      FOV: 15 Degree
      Format Equivalent: 162mm
      Aperture: f/4.4
      Focus: 3m to Infinite

      Thermal Camera:
      DFOV: 61 Degree
      Format Equivalent: 40 mm
      Aperture: f/1.0
      Focus: 5 m to Infinite

    • ISO Range

      100-25600

    • Shutter Speed

      Wide Camera:
      Electronic Shutter: 8-1/8000s

      Tele Camera:
      Electronic Shutter: 8-1/8000s

    • Max Image Size

      Wide Camera:
      8000 x 6000

      Tele Camera:
      4000 x 3000

    • Still Photography Modes

      Wide Camera:
      Single: 12 MP/48 MP
      Timed: 12 MP/48 MP
      JPEG: 2/3/5/7/10/15/20/30/60 s
      Panorama: 12 MP (raw image); 100 MP (stitched image)
      Smart Low-light Shooting: 12 MP

      Tele Camera:
      Single: 12 MP
      Timed: 12 MP
      JPEG: 2/3/5/7/10/15/20/30/60 s
      Smart Low-light Shooting: 12 MP

      Thermal Camera:
      Single: 640 x512
      Timed: 640 x512
      JPEG: 2/3/5/7/10/15/20/30/60 s

    • Photo Format

      Wide Camera:
      JPEG

      Tele Camera:
      JPEG

      Thermal Camera:
      JPEG (8-bit)
      R-JPEG (16-bit)

    • Video Format

      MP4 (MPEG-4 AVC/H.264)

    • Max Video Bitrate

      Wide Camera:
      4K: 85 Mbps
      FHD: 30 Mbps

      Tele Camera:
      4K: 85 Mbps
      FHD: 30 Mbps

      Thermal Camera:
      6 Mbps

      Speaker:
      16 Kbps/32 Kbps

    • Supported File System

      Wide Camera: exFAT

    • Digital Zoom

      Tele Camera:
      8x (56x hybrid zoom)

      Thermal Camera:
      28x

    • Gimbal Option

      3-Axis Gimbal

    • Stabilization

      3-axis (tilt, roll, pan)

    • Mechanical Range

      Tilt: -135 Degree to 45 Degree
      Roll: -45 Degree to 45 Degree
      Pan: -27 Degree to 27 Degree

    • Controllable Range

      Tilt: -90 Degree to 35 Degree
      Pan: Not controllable

    • Max Control Speed (tilt)

      100 Degree /s

    • Angular Vibration Range

      +/-0.007 Degree

    Sensing

    Jump to...
    • Sensing Type

      Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft.

    • Forward

      Measurement Range: 0.5-20 m
      Detection Range: 0.5-200 m
      Effective Sensing Speed: Flight Speed <=15m/s
      FOV: Horizontal 90 Degree , Vertical 103 Degree

    • Backward

      Measurement Range: 0.5-16 m
      Effective Sensing Speed: Flight Speed <=12m/s
      FOV: Horizontal 90 Degree , Vertical 103 Degree

    • Lateral

      Measurement Range: 0.5-25 m
      Effective Sensing Speed: Flight Speed <=15m/s
      FOV: Horizontal 90 Degree , Vertical 85 Degree

    • Upward

      Measurement Range: 0.2-10 m
      Effective Sensing Speed: Flight Speed <=6m/s
      FOV: Front and Back 100 Degree , Left and Right 90 Degree

    • Downward

      Measurement Range: 0.3-18 m
      Effective Sensing Speed: Flight Speed <=6m/s
      FOV: Front and Back 130 Degree , Left and Right 160 Degree

    • Operating Environment

      Forward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15)
      Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15)

    Video Transmission

    Jump to...
    • Video Transmission System

      DJI O3 Enterprise Transmission

    • Live View Quality

      Remote Controller: 1080p/30fps

    • Operating Frequency

      2.400-2.4835 GHz
      5.725-5.850 GHz

    • Transmitter Power (EIRP)

      Video Transmission: 2.4GHz: <33dBm (FCC), <20dBm (CE/SRRC/MIC)
      5.8GHz: <33dBm (FCC), <30dBm (SRRC), <14dBm (CE)

      RC Pro Enterprise: 2.4GHz: <33dBm (FCC), <20dBm (CE/SRRC/MIC)
      5.8GHz: <33dBm (FCC), <14dBm (CE), <23dBm (SRRC)

      Wi-Fi Transmitter Power (EIRP): 2.4GHz: <26dBm (FCC), <20dBm (CE/SRRC/MIC)
      5.1GHz: <26dBm (FCC), <23dBm (CE/SRRC/MIC)
      5.8GHz: <26dBm (FCC/SRRC), <14dBm (CE)

      Bluetooth Tx Power (EIRP): <10dBm

    • Max Transmission Distance

      Max Transmission Distance:
      FCC: 15 km
      CE: 8 km
      SRRC: 8 km
      MIC: 8 km (Unobstructed, free of interference)

      Max Transmission Distance (Obstructed):
      Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC)
      Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC)
      Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)

    • Lowest Latency

      Approx. 200 ms (depending on environmental conditions and mobile device)

    Battery

    Jump to...
    • Capacity

      5000 mAh

    • Voltage

      Battery:
      15.4 V

      Remote Controller:
      7.2 V

    • Battery Material

      Lithium ion

    • Energy

      77 Wh

    • Battery Quantity

      1

    Physical

    Jump to...
    • Dimensions

      Drone: Folded (w/o propellers): 8.7 x 3.8 x 3.5" (221 x 96.3 x 90.3mm); Unfolded (w/o propellers): 13.7 x 11.1 x 4.2" (347.5 x 283 x 107.7mm)

      RC Pro Enterprise: Antennas folded & sticks unmounted: 7.2 x 5.4 x 1.8" (183.2 x 137.4 x 47.6mm); Antennas unfolded & sticks mounted: 7.2 x 8 x 2.3" (183.2 x 203.3 x 59.8mm)

      RTK Module: 1.9 x 1.6 x 2.6" (50.2 x 40.2 x 66.2mm)

      Speaker: 4.5 x 3.2 x 2.1" (114.1 x 82 x 54.61mm)

    • Weight

      Drone:
      With propellers, without accessories: 32.27 oz (915g)
      Max Takeoff: 2.31 lbs (1.05kg)

      RC Pro Enterprise:
      Approx. 23.98 oz (680g)

      Battery:
      11.83 oz (335.5g)

      RTK Module:
      0.84 oz (24g) ( +/-2g)

      Speaker:
      2.99 oz (85g) ( +/-2g)

    About DJI Mavic 3 Enterprise Thermal Drone

    From professional mapping to search and rescue missions, the DJI Mavic 3 Enterprise Thermal Drone is a game-changer in the world of compact commercial drones. This advanced drone features a mechanical shutter, a powerful 56x zoom camera, and an RTK module for precise, centimeter-level accuracy, setting new industry standards for efficiency and performance.

    The Mavic 3 Enterprise Series is designed for both novice and experienced pilots, offering a compact and streamlined design that can be easily carried and deployed at a moment's notice. The drone's wide equivalent focal length of 24mm, 48MP zoom equivalent focal length of 162mm, and a thermal DFOV of 61 degrees ensure high-quality imaging for a variety of applications.

    The Mavic 3 Enterprise Thermal Drone is equipped with a 12MP zoom camera, supporting up to 56x max hybrid zoom, allowing you to capture essential details from a distance. The drone's thermal camera boasts a resolution of 640 x 512 and supports point and area temperature measurement, high-temperature alerts, color palettes, and isotherms, making it an invaluable tool for firefighting, night operations, and inspection tasks.

    The drone's exceptional operational efficiency is further enhanced by its 45-minute flight duration, allowing you to survey up to 2 square kilometers in a single flight. The drone's batteries are optimized for endurance and can be quickly charged using a 100W charging hub or directly with 88W fast charging.

    The Mavic 3 Enterprise Thermal Drone features a next-generation image transmission system with a quad-antenna O3 Enterprise Transmission for stable connections in complex environments. Its omnidirectional sensing capabilities ensure safe flying with zero blind spots, and its advanced RTH automatically plans the optimal route home, saving power, time, and hassle.

    The drone comes bundled with the DJI RC Pro Enterprise, a portable remote controller with a 1,000-nit high-brightness screen for clear visibility in direct sunlight, a built-in microphone for clear communication, and 1.5-hour 65W fast charging. Additional accessories include a loudspeaker for broadcasting messages from above and an RTK module for achieving centimeter-level accuracy.

    The Mavic 3 Enterprise Thermal Drone is also equipped with a full software suite, including DJI Pilot 2 for improved piloting efficiency and flight safety, DJI Flight Hub 2 for efficient drone operations management, DJI Terra for comprehensive mapping, and DJI Thermal Analysis Tool 3.0 for detecting temperature abnormalities in inspections.

    The drone also prioritizes user data security with features like local data mode, one-tap clear all device data, AES-256 video transmission encryption, and cloud API.

    DJI Mavic 3 Enterprise Thermal Drone Features

    • Elevate your aerial photography with a remarkable 3-axis gimbal stabilized camera system boasting a 20MP wide-angle camera, a 12MP telephoto camera, and a high-resolution 640x512 thermal camera for capturing stunning imagery from every angle
    • Immerse yourself in a world of cinematic beauty as you record breathtaking 5.1K videos at up to 30fps, accompanied by an impressive 100Mbps bitrate, ensuring unparalleled clarity and detail in your footage
    • Experience the freedom to control your drone from incredible distances, with a maximum control range of 15km powered by the advanced DJI O3 Enterprise Transmission technology, enabling you to explore vast landscapes and capture awe-inspiring shots
    • Unleash the power of extended flight time as you soar through the skies for up to an astounding 46 minutes, giving you ample opportunity to capture breathtaking footage and cover more ground during your aerial adventures
    • Embrace worry-free flights with the assurance of omnidirectional obstacle avoidance sensors, which ensure that your drone navigates safely and effortlessly around any obstacles, allowing you to focus solely on capturing your perfect shot
    • Attain unparalleled precision and accuracy with the built-in RTK module, providing centimeter-level positioning accuracy that empowers you to capture precise data and create highly detailed maps or models with ease
    • Illuminate the night with unparalleled clarity and sharpness, as the mechanical shutter enhances low-light performance, enabling you to capture remarkable images even in challenging lighting conditions
    • Unlock the full potential of thermal imaging with advanced features such as high-temperature alerts, customizable color palettes, and precise isotherms, allowing you to detect and analyze thermal patterns with unparalleled accuracy and convenience
    • Take complete control and elevate your piloting experience with the RC Pro Enterprise controller, designed to provide enhanced control and viewing capabilities, ensuring seamless and intuitive flight maneuvers while offering an immersive drone operation experience
    • Enhance your aerial toolkit with a wide array of versatile accessories, including a reliable thermal lens guard, a convenient landing pad, and a stylish shoulder bag, allowing you to customize your setup and carry your drone and accessories in style and comfort
