2018-02-15T17:34:48

Rated 5 out of 5

Over 5 Hours of Recording Off a Single P4 Drone Battery

Ideal way to use the Osmo+ for continuous recording, where weight is not an issue, keeping in mind that there is also a 29 minute maximum before needing to restart a recording (codec licensing limitation), and a 2.5 hour recording limit to each 64GB microSD card. A P4 drone battery hooked up to this device will last for well over 5 hours of recording, eliminating the other limitation of the roughly 1 hour limit of each of the tiny internal batteries that this replaces. I record an entire round of golf with the Osmo+ mounted onto my push cart with a bike mount and using a Z-axis for stabilty over rough ground on the course. Golf push cart makes a great video dolly!

Phillip E.

2017-03-31T08:41:24

Rated 2 out of 5

Need a better solution.

I've never liked DJI batteries because they just don't last long enough and this one isn't any different but it's the only one out there for now. We should be getting at least 1 hour and don't.

EDMUND R.

DJI External Battery Extender Specifications

  • Compatibility

    Osmo Gimbal and Camera

  • Supported Charger

    PH4C100 (Phantom 4 - 100W Charger)
    ADE019 (Phantom 3 - 100W Charger)
    A14-057N1A (Phantom 3 - 57W Charger)
    ADE018 (Inspire 1 - 180W Charger)
    A14-100P1A (Inspire 1 - 100W Charger)

  • Supported Car Charger

    C4S90-4 (Phantom 4 Car Charger)
    C4S90 (Phantom 3 Car Charger)
    C6S90 (Inspire 1 Car Charger)

  • Supported Intelligent Battery

    PH4-5350mAh-15.2V (Phantom 4 Intelligent Flight Battery)
    PH3-4480mAh-15.2V (Phantom 3 Intelligent Flight Battery)
    TB47/TB48 (Inspire 1 Intelligent Flight Battery)
    844297-4350mAh-15.2V (Ronin Intelligent Battery)
    824380-3400mAh-14.8V (Ronin Intelligent Battery)
    423496-1580mAh-14.4V (Ronin-M Intelligent Battery)

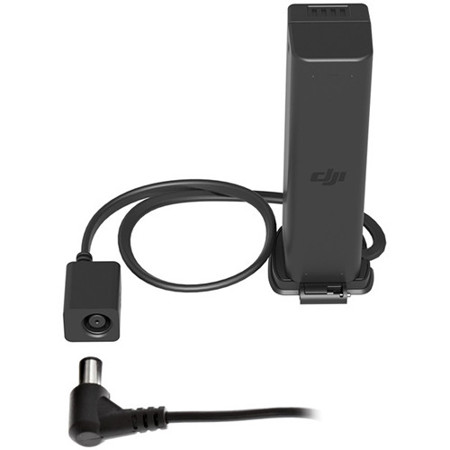

About DJI Part 49 External Battery Extender for Osmo Gimbal and Camera

The Osmo external battery extender is designed to prolong the operating time of the Osmo by connecting to external power sources such as a dedicated DJI charger or Intelligent Battery. It is ideal for using the Osmo in extended period operations such as timelapse.

Note:

If using a DJI Intelligent Battery as the power supply, a Battery (10 PIN-A or 2 PIN) to DC Power Cable is required.
