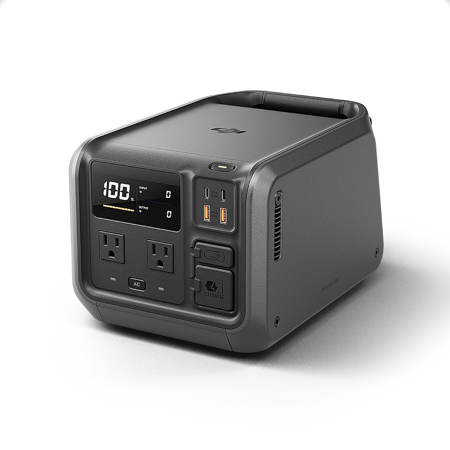

Used DJI Power 500 Portable Power Station

SKU: US1876371 MFR: CP.DY.00000079.01

This item is no longer available.

Overview
Compare
Accessories
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-12-10T11:59:51

Rated 5 out of 5

DJI Power 500, perfect portable power source

The power 500 is very easy to operate. Buttons are intuitive and connection points are obvious. I especially like the pass through power/charge feature. It works very well and is handy for use as an uninterrupted power source if needed. I also like the display showing wattage draw and input, the times available for discharge use time based on current draw and charge time remaining. This allows you to plan ahead to either use or charge. Perfect for routine or emergency field or home use.

Thomas U.

DJI Power Station Specifications

General

General

Jump to...
  • Capacity

    512 Wh

  • Number of Ports

    2x AC Output
    2x USB-C
    2x USB-A
    1x SDC Lite
    1x AC Input

  • Max Operating Altitude

    3000m

  • AC Output

    DYM500L: AC 100-120 V, 50/60 Hz, max continuous output: 1000 W
    DYM500H: AC 220-240 V, 50/60 Hz, max continuous output: 1000 W

  • AC Output (Bypass Mode)

    DYM500L: AC 100-120 V, max 1000 W
    DYM500H: AC 220-240 V, max 1000 W

  • USB-A Output

    5 V, 3 A
    9 V, 2 A
    12 V, 2 A
    Max output power per channel: 24 W

  • USB-C Output

    5 V, 5 A
    9 V, 5 A
    12 V, 5 A
    15 V, 5 A
    20 V, 5 A
    Max output power per channel: 100 W (device being charged should support PD 3.0 protocol)

  • SDC Lite Output

    SDC Lite: 9-27 V, max output power: 240 W

  • AC Input

    DYM500L: AC 100-120 V, 540 W (recharging), 1000 W (Bypass mode)
    DYM500H: AC 220-240 V, 540 W (recharging), 1000 W (Bypass mode)

  • SDC Lite Input

    DC 22.4-29.2 V, max 300 W, 10 A

  • USB-C Input

    DC 5-20 V, max 100 W (the charger should support PD 3.0 protocol)
    Supports simultaneous power input with two USB-C ports at a max 200 W.

Operating Temperature

Jump to...
  • Power Supply Temperature

    14 Degree to 113 Degree F (-10 Degree to 45 Degree C)

  • Recharging Temperature

    32 Degree to 113 Degree F (0 Degree to 45 Degree C)

  • Storage Temperature

    14 Degree to 113 Degree F (-10 Degree to 45 Degree C)

Battery

Jump to...
  • Cell Chemistry

    LFP (lithium Ferro phosphate)

  • Cycle Life

    Maintains over 70% capacity after 4000 cycles

  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions (L x W x H)

    12 x 8.14 x 6.96" (305 x 207 x 177mm)

  • Weight

    16.09 lbs (7.3kg) (Approx.)

8 Accessories for DJI Power 500 Portable Power Station

  • All Accessories (8)
  • Power Supply & Accessories (2)
  • Cables & Adapters (6)

About DJI Power 500 Portable Power Station

FEATURED REVIEWS

DJI Power 500, perfect portable power source

By Thomas U.

The power 500 is very easy to operate. Buttons are intuitive and connection points are obvious. I especially like the pass through power/charge feature. It works very well and is handy for use as an uninterrupted power source if needed. I also like the display showing wattage draw and input, the times available for discharge use time based on current draw and charge time remaining. This allows you to plan ahead to either use or charge. Perfect for routine or emergency field or home use.

Power Your World

DJI Power 500 provides stable power supply to common household devices.

The compact and portable DJI Power 500 has a battery capacity of 512 Wh to provide a max output power of 1000 W. It can also fast charge DJI drone batteries to unleash your aerial content creation.

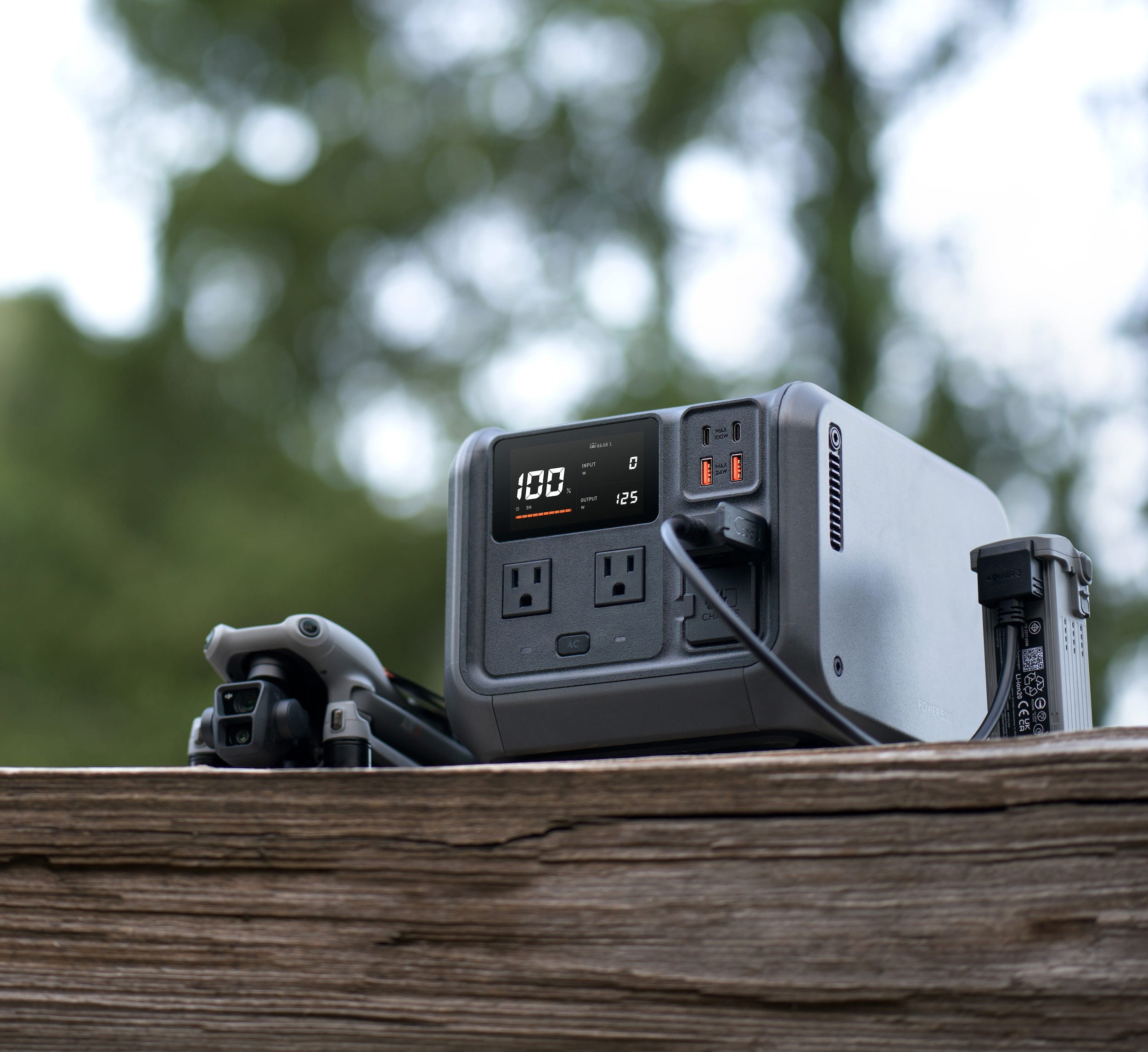

Fast Charges DJI Drones

With the aid of separately-sold charging cables, you can fast charge select DJI drone batteries with the DJI Power SDC super-fast charge function, and be up in the air within approximately 30 mins. With three drone batteries and a DJI portable power station, you can enjoy an entire day of worry-free flight and creation.

Fast Charges DJI Drones

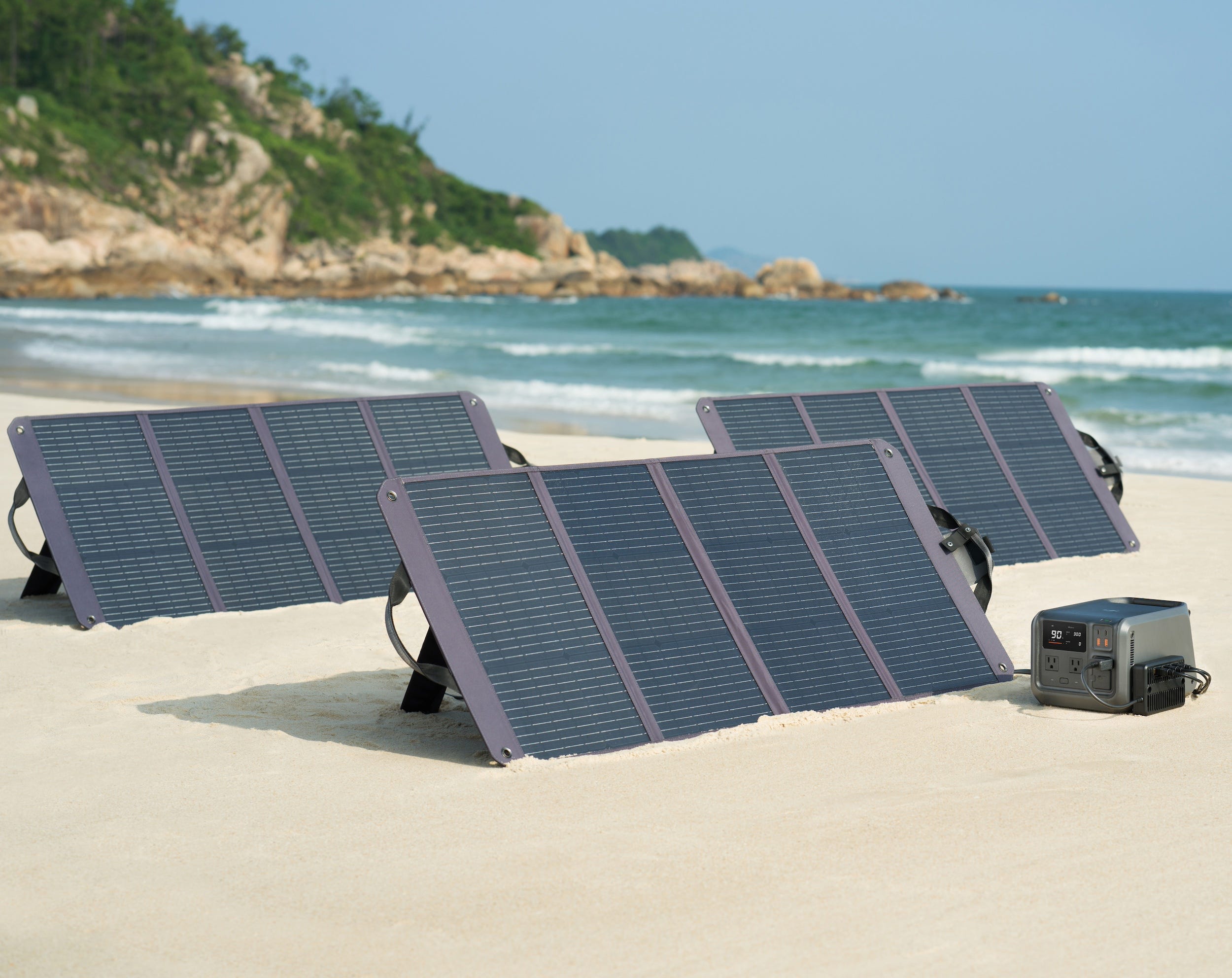

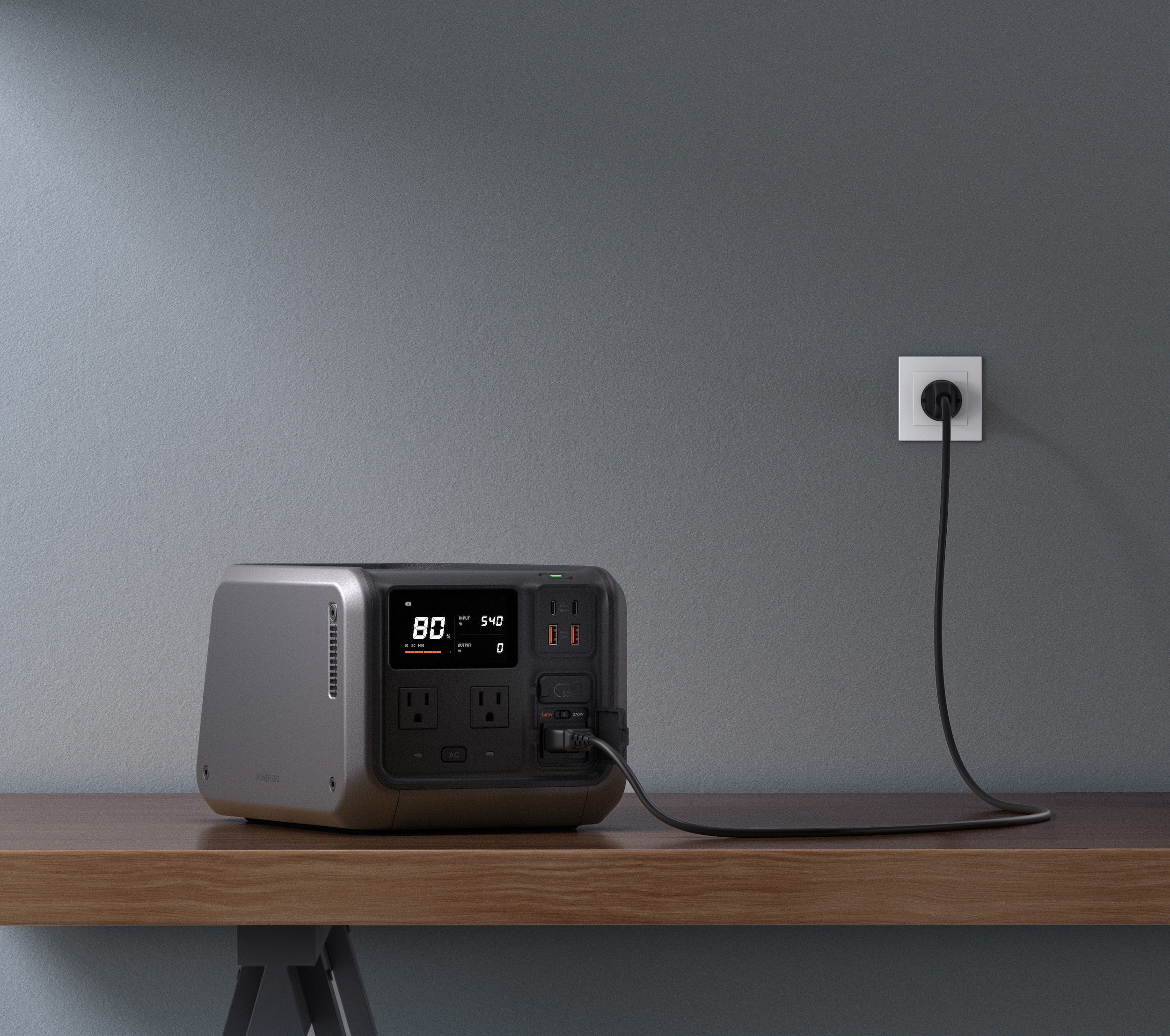

Multiple Recharging Options

DJI Power 500 can be recharged in four ways: grid power, USB-C, solar power, and car power. Whether indoors or on the road, you can flexibly choose the recharging method that works for you.

Multiple Recharging Options

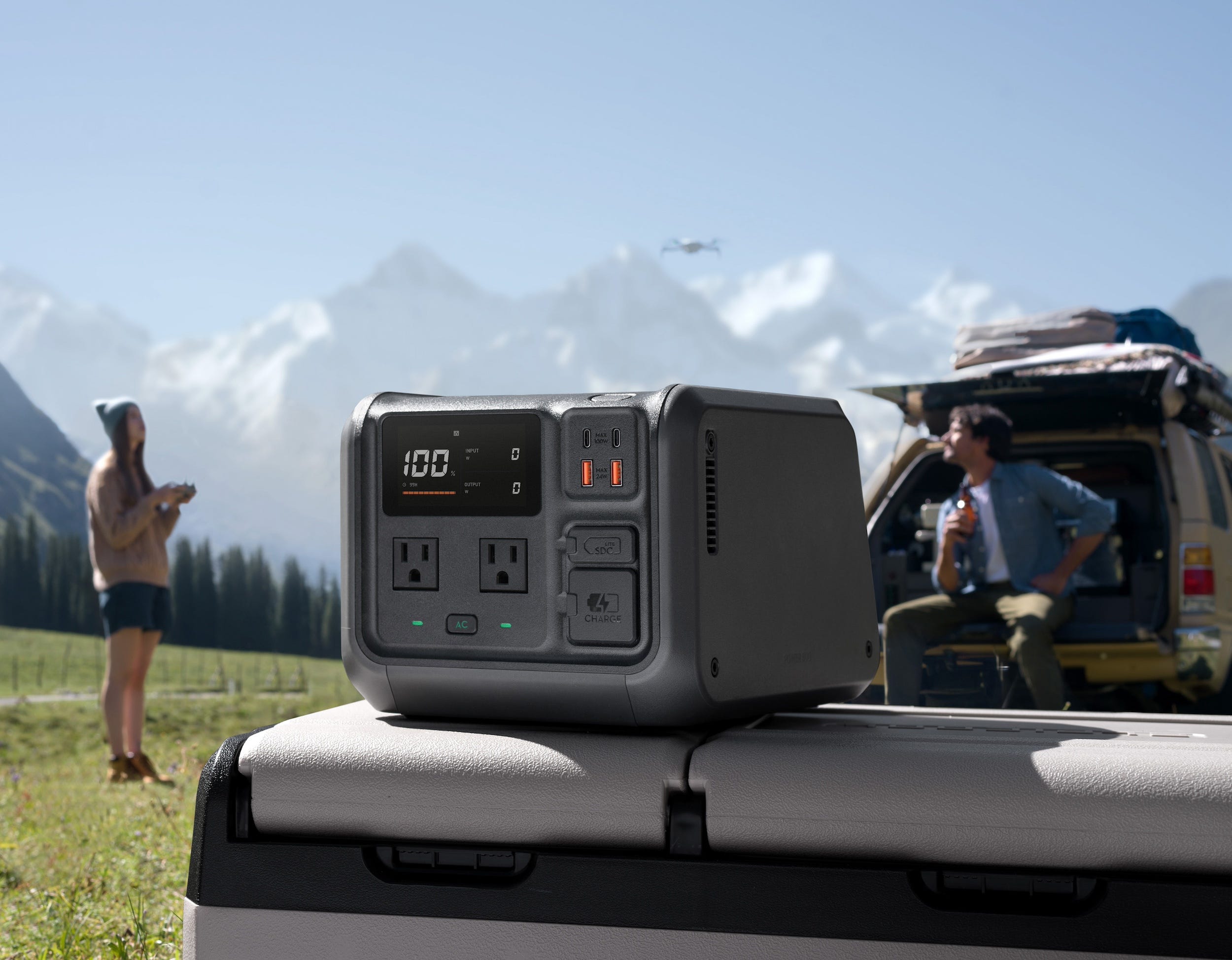

Safe and Secure, Inside and Out

Safety comes first at all times. From the body structure and cell chemistry to the system software, DJI Power 500 features a comprehensive safety design. It has passed 26 product test certifications from the Swiss third-party testing authority SGS, ensuring worry-free electrical usage.

Safe and Secure, Inside and Out

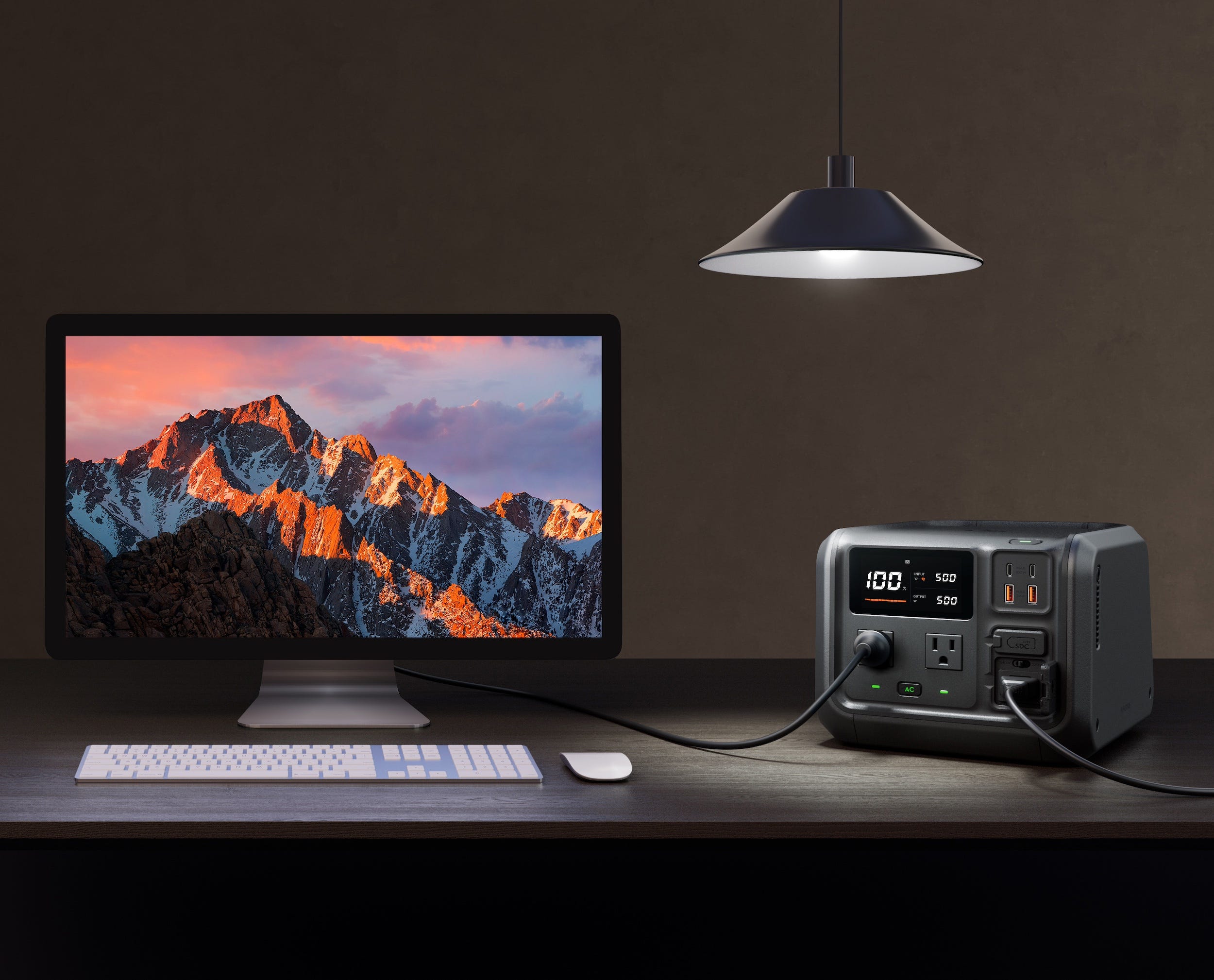

UPS Mode, Seamless Power Continuity

If an electrical device is connected to a powered-on DJI Power 500 (via AC output port) and both are receiving grid power, DJI Power 500 defaults to UPS (Uninterruptible Power Supply) mode. In cases of sudden power outage, DJI Power 500 can start powering the connected device (or devices) within 0.02 seconds, ensuring continued operation.

UPS Mode, Seamless Power Continuity

Ultra-Quiet Operation

The noise level of DJI Power 500 is as low as 25 dB during recharging, lower than most household refrigerators, so there is no noise disturbance even in quiet environments.

Ultra-Quiet Operation

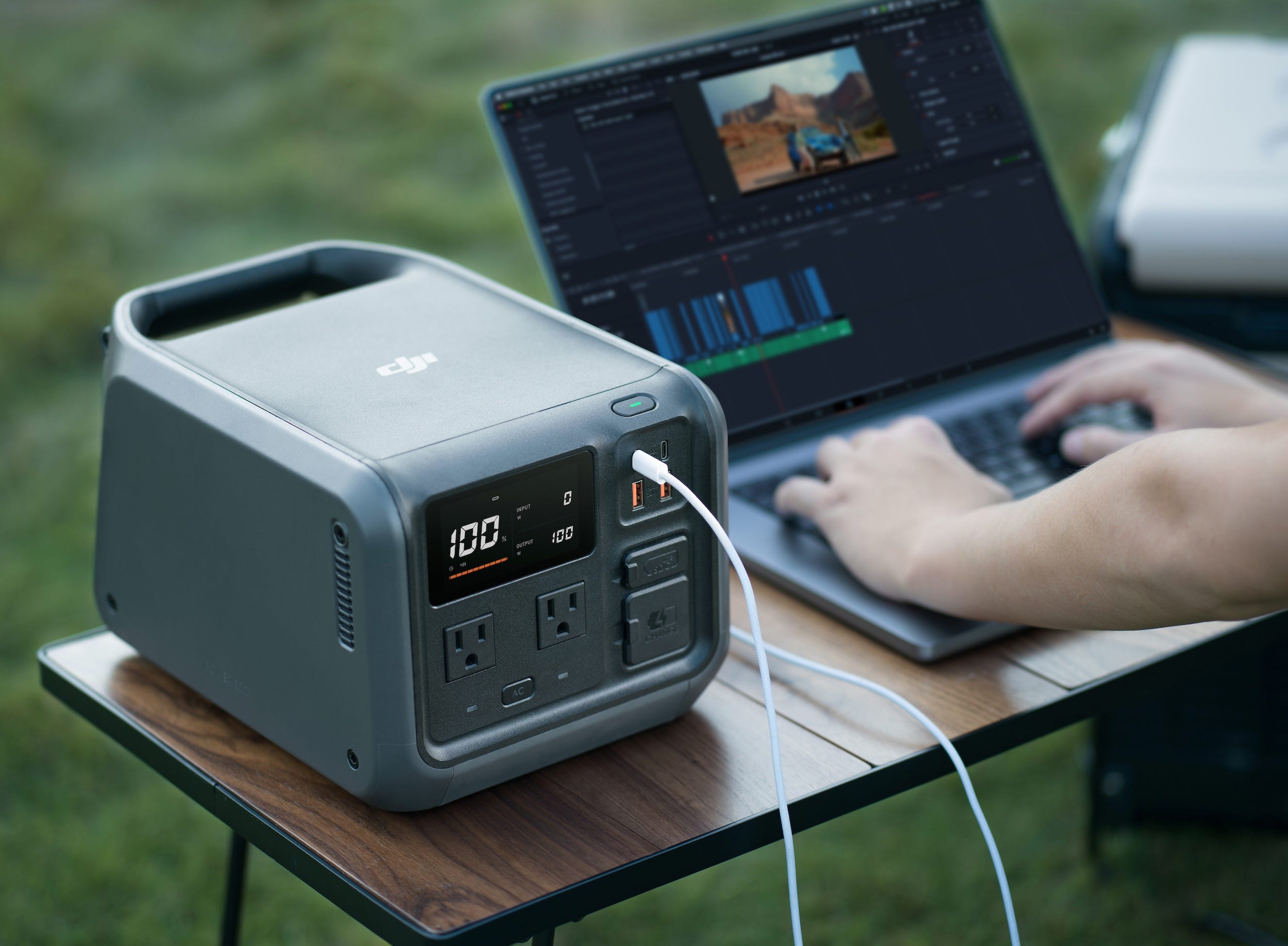

Extensive Accessories

DJI Power 500 has dual two-way USB-C ports, dual AC output ports, dual USB-A ports, and one SDC Lite port. It is highly versatile to make power usage in various scenarios more convenient. It can connect to different types of solar panels, power cables, and adapter cables, meeting the needs of a variety of power supply and recharging options.

Extensive Accessories

If you're seeking a seamless blend of power and portability, the DJI Power 500 Portable Power Station is your ideal solution. This compact powerhouse features a substantial 512Wh battery capacity, delivering a formidable maximum output of 1000W. It's perfectly designed to handle high-wattage appliances like electric kettles while simultaneously charging devices such as computers and smartphones, ensuring a steady and reliable power supply until the battery is fully depleted.

The DJI Power 500 is an excellent choice for camping adventures, road trips, or as a dependable home backup battery. Its impressive charging capabilities allow it to power a car refrigerator for approximately 9.7 hours, charge a mobile phone up to 28 times, and keep a projector running for about 4.7 hours. Content creators will appreciate its ability to charge a speaker up to 32 times, a drone around 6 times, a digital camera approximately 28 times, and a laptop about 4 times. Additionally, the super-fast charge function for select DJI drone batteries means you can be back in the air in roughly 30 minutes, making it a must-have for drone enthusiasts.

Recharging the DJI Power 500 is incredibly versatile with four convenient options: grid power, USB-C, solar power, and car power. This flexibility ensures that whether you're at home or on the go, you can select the recharging method that best fits your circumstances. Safety is a top priority with the DJI Power 500, featuring a comprehensive safety design that encompasses the body structure, cell chemistry, and system software. It has successfully passed 26 product test certifications from the Swiss third-party testing authority SGS, providing peace of mind for worry-free electrical usage.

Moreover, the DJI Power 500 operates ultra-quietly, with a noise level as low as 25 dB during recharging, making it quieter than most household refrigerators and perfect for maintaining a serene environment. Equipped with dual 100W USB-C ports, it supports both power input and output, adhering to the PD 3.0 fast charging protocol for efficient energy transfer. These ports can be used simultaneously to recharge the power station at a maximum of 200W or to supply power to devices like cameras, phones, and laptops at up to 200W.

In summary, the DJI Power 500 Portable Power Station is a versatile, reliable, and safe power solution, catering to a wide range of applications and ensuring you're never left without power when you need it most.

DJI Power 500 Portable Power Station Features

  • 1000W Genuine Stable High-Capacity Power Output: Meets power requirements of common household appliances
  • Dual 100W USB-C Ports, Super Fast Charging: Two smartphones charged simultaneously to 50% in 15 minutes
  • 25dB-Sleep Undisturbed Indoors or Camping: Quieter than most electric fans and other everyday appliances
  • Supports Solar Charging
  • Comprehensive Safety: LFP battery cell, 4000 cycles
  • Fully Charged in 70 Mins: Recharged to 80% in just 50 mins
  • Fast Charges DJI Drones: DJI Power SDC super-fast charge

Warranty Information

This used item has a FREE 1-year warranty. See details.

Key Features

  • Power your devices with a robust 512Wh battery capacity, perfect for camping or emergencies.
  • Enjoy a long-lasting power supply with LFP battery tech, maintaining 70% after 4000 cycles.
  • Charge multiple devices using 2 AC, 2 USB-C, & 2 USB-A outlets on this versatile power station.
  • Utilize the 1000W AC output to run appliances during outages with this reliable UPS backup.
  • Recharge quickly via AC, USB-C, or SDC Lite inputs, maximizing your portable power options.
  • Compact & durable design ensures this DJI power station is ready for any adventure or situation.
