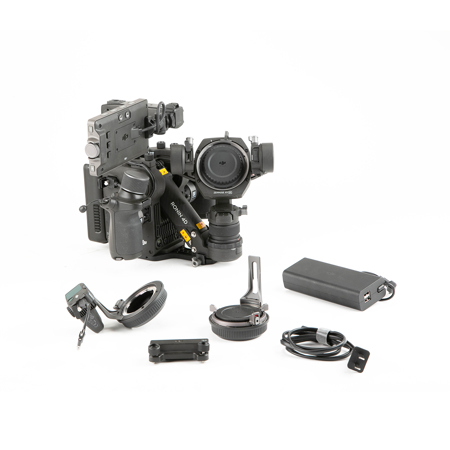

Picture does not represent the actual item
See what's in the box
Used DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit (E-Mount)
SKU: US1896641
This item is no longer available.
Share:
Overview
Compare
Learn
Specs
Protection
Reviews about this item
Review Summary
Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.
TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.
Invest in Pre-Owned Gear & Peace of Mind!
Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.
Repair or Replacement
If we can’t fix it, we’ll replace it at no additional cost.
Extended Protection
Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.
Peace of Mind
Enjoy your gear without fear. We have you covered!
Malfunction Protection
When regular use of your product over time results in mechanical or electrical failure.
Zero Deductible
We will never charge you a deductible after the purchase of a plan.
Customer-Focused Support
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.
Browse our FAQ
DJI Ronin 4D Specifications
Included Items
Included Items
Jump to...Additional Included Items
3x 10mm 1/4"-20 Screw
Flat Head Screwdriver
DL Mount Body Cap
X9 Gimbal Base Cap
DX Mount Body Cap
DX Mount Lens Cap
Ronin 4D Gimbal Base Cap
TB50 Intelligent Battery
LiDAR Range Finder/Focus Motor Cable
Left Hand Grip Strap
Right Hand Grip Strap
Ronin 4D Carrying Case
X9 Counterweight (106g)
General
Jump to...Max Operating Time
Approx. 150 minutes
Intelligent Features
ActiveTrack Pro, Autofocus (supports human face/body recognition and framing of any subject)
Storage Temperature
-4 Degree to 140 Degree F (-20 Degree to 60 Degree C)
Operating Temperature
14 Degree to 104 Degree F (-10 Degree to 40 Degree C)
Camera
Jump to...Sensor Size
35mm full-frame CMOS image sensor
Base Lens Mount
DX Mount, and support for other mount units
Supported Lens Mounts
DL Mount (standard), M Mount, and E Mount
DL Lens
DJI DL 24mm F2.8 LS ASPH
DJI DL 35mm F2.8 LS ASPH
DJI DL 50mm F2.8 LS ASPHDynamic Range
14+ stops
White Balance
Manual 2,000-11,000 Kelvin and tint adjustment, supports AWB
Gamma
D-Log, Rec.709, HLG
EI Range
X9-6K: EI 200-12800, Dual Native ISO 800/5000
Shutter Speed
Electronic Rolling Shutter 1/24s-1/8000s
ND
Built-in 9-stop ND filters: Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5), 64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7)
Focus Control
Autofocus, Manual Focus, Automated Manual Focus
Supported File System
exFAT
Recording Format
Apple ProRes RAW HQ/Apple ProRes RAW
Apple ProRes 422 HQ/Apple ProRes 422
H.264 (4:2:0 10-bit)Storage Media
DJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSD
DJI PROSSD 1TB Recording Format
No restriction on recording format
CFexpress 2.0 Type B Recording Format
ProRes 422 HQ:
6K: 23.976/24/25/29.97/30fps
C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fpsUSB-C SSD Recording Format
ProRes 422 HQ:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps
H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fpsBuilt-in Mic
Built-in 2-ch stereo
Audio Format
LPCM 2-ch, 24-bit 48kHz
Gimbal
Jump to...Mechanical Range
Pan: +/-330 Degree
Tilt: -75 Degree to 175 Degree
Roll: -90 Degree to 230 Degree
Z-Axis Range: approx 130mmControllable Range
Pan: +/-285 Degree
Tilt: -55 Degree to +155 Degree
Roll: +/-35 DegreeMax Control Speed
DJI Master Wheels or DJI Force Pro:
Tilt: 360 Degree /s
Roll: 360 Degree /s
Pan: 360 Degree /s
Ronin 4D Hand Grips:
Tilt: 120 Degree /s
Roll: 120 Degree /s
Pan: 120 Degree /sMaximum Z-Axis Payload
4.4 lbs (2kg) (including 2.3 lbs (1.04kg) gimbal)
Angular Vibration Range
+/-0.01 Degree
LiDAR Range Finder
Jump to...Operating Temperature
14 Degree to 104 Degree F (-10 Degree to 40 Degree C)
LiDAR Range Measurement Precision
0.3-1m ( +/-1%)
1-10m ( +/-1.5%¼FOV
30cm to 3m @>18% reflectivity 60 Degree (horizontal) x 45 Degree (vertical)
30cm to 10m @>18% reflectivity 60 Degree (horizontal) x 7 Degree (vertical)Safety Rating
Class 1 (IEC 60825-1:2014) (safe for human eyes)
Operating Environment
Use in environments with diffuse reflective surfaces (>10%, such as walls, trees, people, etc.)
DO NOT use in environments with dense fog or aim it at or through glass surfaces.Laser Wavelength
940 nm
Single Pulse Width
Two kinds of pulses emit in circulation: 5ns and 33.4ns.
Max Laser Power
6 W
Dimensions (L x W x H)
2.7 x 1.8 x 1.3" (71 x 47 x 34mm)
Weight
3 oz (88g)
Main Monitor
Jump to...Screen Size
5.5" (13.9cm) (diagonal)
Resolution
1920080
Refresh Rate
60 Hz
Max Brightness
1000 cd/sq. m
Screen
Rotational LCD touchscreen
O3 Pro Video Transmission
Jump to...Max Transmission Distance
20,000' (approx. 6km, FCC-compliant)
Max Transmission Resolution & Frame Rate
1920080 @60fps
Minimum End-to-End Latency
100 ms or 68 ms
Wireless Frequency
Non DFS frequency band:
2.400-2.483 GHz
5.150-5.250 GHz
5.725-5.850 GHz
DFS Frequency Band:
5.250-5.350 GHz
5.470-5.600 GHz
5.650-5.725 GHzTransmitter Power (EIRP)
2.400-2.4835 GHz: <=33 dBm (FCC); <=20 dBm (SRRC/CE/MIC)
5.150-5.250 GHz: <23 dBm (FCC/SRRC/MIC)
5.250-5.350 GHz: <30 dBm (FCC); <23 dBm (SRRC/MIC)
5.470-5.600 GHz, 5.650-5.725 GHz: <30 dBm (FCC);<23 dBm (CE/MIC)
5.725-5.850 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)Max Bandwidth
40 MHz
Max Bitrate
50 Mbps
Interface
Jump to...Main Body
3.5mm TRS Stereo Input Jack (supports mic, plug-in power mic, and line inputs)
3.5mm Stereo Output Jack
USB3.1 Type-C Data Port
6-pin 1B DC-IN (DC 12-30 V)
Battery Mount Power Port (female)
4D Expansion Plate Data Port (female)
High-Bright Main Monitor Port
Hand Grips Port x 2
Top Handle Port
HDMI Type-A Video Output PortX9 Gimbal
LiDAR Range Finder/ Focus Motor Port x 2
TB50 Battery Mount
Battery Mount Power Port (male)
TB50 Battery Port
4D Video Transmitter
Jump to...4D Video Transmitter Port
4D Expansion Plate Data Port (male)
SMA Antenna Connector x 4
USB 3.1 Type-C Data Port
Battery Mount Power Port (female)
Battery Mount Power Port (male)Dimensions
3.5 x 0.82 x 5.3" (89 x 21 x 137mm)
Remote Monitor
Jump to...Screen Size
7" (17.78cm) inches (diagonal)
Max Brightness
1500 cd/sq. m
Screen Resolution
1920 x 1200
Refresh Rate
60 Hz
Max Battery Life
Approx. 2 hours
Operating Temperature
32 Degree to 104 Degree F (0 Degree to 40 Degree C)
Storage Temperature
-4 Degree to 140 Degree F (-20 Degree to 60 Degree C)
Power System
DJI WB37 Battery/NP-F series Battery (requires NP-F battery adapter)
Remote Monitor Port
3.5mm Stereo Jack
microSD Card Slot
HDMI Type-A Video Input Port
Remote Monitor Expansion Plate High-Speed Port (female)
Remote Monitor Accessory Expansion Port
USB 3.1 Type-C Data PortRemote Monitor Expansion Port
Remote Monitor Expansion High-Speed Port (male)
HDMI 1.4 Type-A Video Output Port
6-pin 1B DC-IN (DC 6.8-17.6 V)
3G-SDI (Level A) BNC Video Output PortDimensions
8.5 x 2.2 x 6.5" (216 x 58 x 166mm) (includes monitor cage)
Battery
Jump to...Battery
TB50 Intelligent Battery
Capacity
4280 mAh
Energy
97.58 Wh
Voltage
22.8 V
Max Charging Voltage
26.1 V
Max Charging Power
180 W
Charging Temperature Range
41 Degree to 104 Degree F (5 Degree to 40 Degree C)
Charging Time
Approx. 1.5 hours (with standard 86W power adapter)
Battery Info
Required, included
Battery Material
Lithium ion
Battery Type
Non-universal
Battery Quantity
1
Physical
Jump to...Dimensions (L x W x H)
Main Body: 9.2 x 4.5 x 6.3" (2351560mm)
Overall: 12 x 11.4 x 10.9" (309 x 290 x 277mm)Weight
Gimbal: 2.3 lbs (1.04kg) (Approx.)
Main Body: 3.2 lbs (1.45kg)
Overall: 10.3 lbs (4.67kg) (Approx.) (after installing all modules in the combo, excluding lens and storage card)
Related Articles & Videos
About DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit (E-Mount) - SKU#1896641
What's in the box:
- DJI Zenmuse X9-6K Gimbal Camera
- Main Body
- LiDAR Range Finder
- DL Mount
- E Mount
- Left Hand Grip
- Right Hand Grip
- Top Handle
- High-Bright Main Monitor
- TB50 Battery Mount
- TB50 Intelligent Battery
- TB50 Charging Adapter
- AC Power Cable
- Base Plate
- Hand Grip Extended Control Sticks
- Ronin 4D Carrying Case
- LiDAR Range Finder/Focus Motor Cable
- Item Note: Missing Power Adapter; 7x AC Power Cable; USB-A to USB-C Cable; X9 Body Cap; DL Mount Caps
