Used DPA Microphones d:screet Core 4060 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector, Normal SPL, High-Sens, Black

SKU: US1708092

This item is no longer available.

Recommended Items

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

DPA Microphones d:screet Core 4060 Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz

  • Frequency range, +/-2 dB

    Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity, nominal, +/-3 dB at 1 kHz

    20 mV/Pa; -34 dB re. 1 V/Pa

  • Equivalent noise level, A-weighted

    Typ. 23 dB(A) re. 20 MuPa (max. 26 dB(A))

  • Equivalent noise level, ITU-R BS.468-4

    Typ. 35 dB (max. 38 dB)

  • S/N ratio

    (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 71 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 129 dB SPL peak

  • Dynamic range

    Typ. 106 dB

  • Max. SPL, peak before clipping

    134 dB

  • Output impedance

    30 - 40 Ohms

  • Cable drive capability

    Up to 300 m (984 ft)

  • Power supply (for full performance)

    For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance

  • Connector

    Hardwired 3-Pin LEMO Connector

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4 mm (0.21 in)

  • Microphone length

    12.7 mm (0.5 in)

  • Cable length

    1.8 m (5.9 ft)

  • Weight

    7.5g (0.26 oz) incl. Cable and MicroDot connector

About DPA Microphones d:screet Core 4060 Miniature Omnidirectional Microphone #1708092

For professionals seeking unparalleled audio capture, the d:screet Core 4060 Miniature Omnidirectional Microphone stands out with its high-quality, durable design and innovative features. This professional-grade microphone, finished in a sleek black, is engineered with a high-sensitivity core, making it an ideal choice for recording in challenging noisy environments or at a distance, where clarity and detail are paramount.

The d:screet Core 4060 boasts an omnidirectional polar pattern, ensuring sound is captured with equal sensitivity from all directions. This feature is particularly beneficial for recording ambient sounds or in situations with multiple sound sources, such as conferences or live performances, providing a natural and realistic audio experience.

Crafted for versatility, the microphone's miniature size belies its powerful performance. It effortlessly captures speech nuances and can close-mike a variety of instruments. With the ability to handle sound pressure levels up to 134 dB before clipping, the d:screet Core 4060 excels in both studio and field applications, where a balance between signal and noise is crucial.

The microphone's robust construction includes a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm, protected by a unique Double Vent Protection System that greatly enhances resistance to humidity and sweat. Additionally, the Kevlar-reinforced cable relief is designed to endure the rigors of daily use in harsh environments.

To tailor the acoustic response, two anodized stainless steel grids are provided. The pre-fitted Soft Boost Grid offers a subtle 3 dB boost between 8-20 kHz, ideal for head-mounted applications or when a natural microphone sound is desired. Alternatively, the High Boost Grid delivers a 10 dB boost around 12 kHz, perfect for chest-placement scenarios. Both grids are detachable and easy to clean, ensuring longevity and consistent performance.

The d:screet Core 4060 is compatible with a wide range of wireless systems, thanks to its hardwired 3-pin LEMO connector. DPA's flexible adapter system allows for seamless integration with numerous professional wireless brands, ensuring reliable connectivity and maintaining sound quality when switching between systems.

This microphone is not only a testament to DPA's legacy of crafting miniature microphones with the precision of hearing aid and measurement microphone technology but also a versatile tool for audio professionals who demand the best in sound capture. Whether used in television, film, theater, or live events, the d:screet Core 4060 Miniature Omnidirectional Microphone, with Normal SPL and High-Sens, is a reliable and flexible addition to any audio toolkit.

DPA Microphones d:screet Core 4060 Miniature Omnidirectional Microphone #1708092 Features

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems

What's in the box:

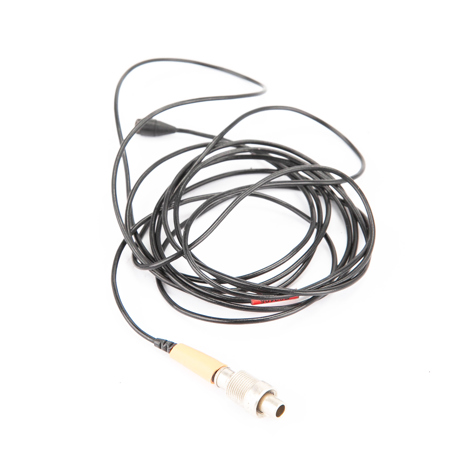

  • DPA Microphones d:screet Core 4060 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector
  • Soft-Boost Protection Grid
  • Item Note: Unable To Be Fully Tested; Missing High-Boost Protection Grid
