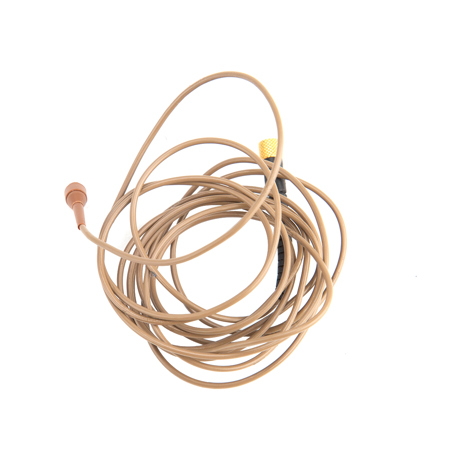

Used DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone With MicroDot Connector, Loud SPL, Low-Sens, Brown

SKU: US1758505

This item is no longer available.

Recommended Items

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

DPA Microphones d:screet Core 4061 Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz

  • Frequency range, +/-2 dB

    Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity, nominal, +/-3 dB at 1 kHz

    6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level, A-weighted

    Typ. 26 dB(A) re. 20 MuPa (max. 28 dB(A))

  • Equivalent noise level, ITU-R BS.468-4

    Typ. 38 dB (max. 40 dB)

  • S/N ratio

    (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 137 dB SPL peak

  • Dynamic range

    Typ. 111 dB

  • Max. SPL, peak before clipping

    144 dB

  • Output impedance

    30 - 40 Ohms

  • Cable drive capability

    Up to 300 m (984 ft)

  • Power supply (for full performance)

    For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance

  • Connector

    MicroDot

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Current consumption

    Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4 mm (0.21 in)

  • Microphone length

    12.7 mm (0.5 in)

  • Cable length

    1.8 m (5.9 ft)

  • Weight

    7.5g (0.26 oz) incl. Cable and MicroDot connector

About DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone #1758505

While the d:screet Core 4061 Miniature Omnidirectional Microphone with MicroDot Connector, Loud SPL, Low-Sens, Brown is part of a series, each model is meticulously designed for specific applications, taking into account sensitivity, voltage, and placement needs. This microphone is a testament to DPA's innovative approach, as it is built on the foundation of the original d:screet 4060, the first miniature microphone that DPA developed using advanced technology previously exclusive to hearing aids and measurement microphones.

The d:screet Core 4061 is not just a microphone; it's a versatile, high-quality audio tool optimized for various applications. Its durability is proven by its ability to withstand harsh conditions, thanks to its unique Double Vent Protection System that makes it highly resistant to humidity and sweat. The microphone also features a robust Kevlar-reinforced cable relief, designed to endure the everyday twists, bends, and pulls that come with use in demanding environments.

The acoustic response of the d:screet 4061 can be customized by choosing the right grid for the job. Each microphone comes with two anodized stainless steel grids, offering a tough, scratch-resistant surface. These grids can be detached for cleaning, ensuring the microphone remains in optimal condition.

This particular model, the d:screet 4061 Miniature Omnidirectional Microphone, High SPL, is acoustically identical to the d:screet 4060, but its sensitivity is adjusted to handle higher sound pressure levels (SPLs). It can handle SPL up to 144 dB peak before clipping, making it an excellent choice for recording very loud sound sources, such as certain instruments and human voices.

The omnidirectional nature of this microphone means it has sensitivity at all angles, picking up sound equally from all directions. This results in an extremely natural and realistic sound, making it ideal for capturing ambient sounds or recording large sound sources like choirs. Despite the potential for feedback in live situations, the d:screet 4061's equal frequency response and ability to handle high sound pressure levels make it a versatile addition to any audio toolbox.

The d:screet 4061 also features DPA's unique MicroDot termination and a changeable adapter for easy and effortless configuration with a wireless system. This flexible adapter system ensures secure and consistent connection with your chosen wireless system brand. The microphone is also available in hardwired versions without the MicroDot connector for those who prefer a wired system.

In conclusion, the d:screet Core 4061 Miniature Omnidirectional Microphone with MicroDot Connector, Loud SPL, Low-Sens, Brown is a reliable, innovative, and versatile audio tool designed by DPA Microphones, a reputable brand known for producing high-quality audio equipment.

DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone #1758505 Features

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems

What's in the box:

  • DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone With MicroDot Connector
  • Soft-Boost Protection Grid ** Item Note: Missing High- Boost Protection Grid
