Used DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector, Loud SPL, Low-Sens, Beige

SKU: US1969870 MFR: 4061-OC-C-F03
Earn VIP Reward Points

What`s in the box:

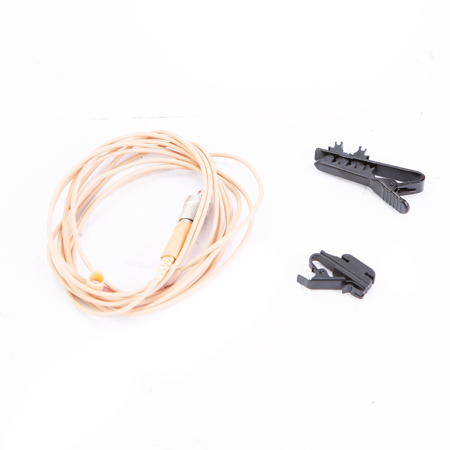

  • DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector
  • High-Boost Protection Grid
  • Soft-Boost Protection Grid
See more

Key Features

  • Capture pristine audio with this DPA omnidirectional lavalier microphone.
  • Experience exceptional sound quality, perfect for film, broadcast, or theater.
  • Achieve clear recordings even in loud environments with high SPL handling.
  • Enjoy versatile connectivity via the hardwired 3-Pin LEMO connector.
  • Benefit from minimal noise with a very low self-noise of only 26dB(A).
  • Discreet and lightweight design ensures comfortable, hidden microphone use.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Free Shipping

See Options

1

Add Adorama Protect:

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

DPA Microphones d:screet Core 4061 Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz

  • Frequency range, +/-2 dB

    Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity, nominal, +/-3 dB at 1 kHz

    6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level, A-weighted

    Typ. 26 dB(A) re. 20 MuPa (max. 28 dB(A))

  • Equivalent noise level, ITU-R BS.468-4

    Typ. 38 dB (max. 40 dB)

  • S/N ratio

    (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 137 dB SPL peak

  • Dynamic range

    Typ. 111 dB

  • Max. SPL, peak before clipping

    144 dB

  • Output impedance

    30 - 40 Ohms

  • Cable drive capability

    Up to 300 m (984 ft)

  • Power supply (for full performance)

    For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance

  • Connector

    Hardwired 3-Pin LEMO Connector

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Current consumption

    Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4 mm (0.21 in)

  • Microphone length

    12.7 mm (0.5 in)

  • Cable length

    1.8 m (5.9 ft)

  • Weight

    7.5g (0.26 oz) incl. Cable and MicroDot connector

About DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector, Loud SPL, Low-Sens, Beige

How does the d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector, Loud SPL, Low-Sens, Beige stand out This high-quality, professional-grade microphone is designed with innovative features that cater to a variety of audio recording needs.

Built on the foundation of the original d:screet 4060, the first miniature microphone developed by DPA, the d:screet Core 4061 is a testament to DPA's commitment to superior audio technology. This microphone incorporates the best technology previously exclusive to hearing aids and measurement microphones, offering unparalleled sound quality and performance.

The d:screet Core 4061 is optimized for specific applications based on sensitivity, voltage, and placement needs. Its omnidirectional polar pattern ensures it captures sound from all directions, making it an ideal choice for recording a wide range of audio.

This microphone is designed to handle high sound pressure levels (SPLs) without distorting the audio, thanks to its low sensitivity. It can handle SPL up to 144 dB peak before clipping, making it one of the best miniature microphones for recording loud sound sources, such as certain instruments and human voices.

The d:screet Core 4061 is not just reliable but also durable. It features a unique Double Vent Protection System that makes the microphone resistant to humidity and sweat. The Kevlar-reinforced cable relief is designed to withstand the everyday twists, bends, and pulls that come with use in harsh environments.

The acoustic response of the d:screet 4061 can be modified by selecting the correct grid for the job. It comes with two anodized stainless steel grids that are tough, scratch-resistant, and can be detached for cleaning.

The d:screet Core 4061 is available in four colors: black, brown, beige, and white. It also comes with a flexible adapter system, allowing it to run effortlessly with a wireless system. The MicroDot termination and changeable adapter ensure secure configuration and compatibility with a wide range of professional wireless systems.

Whether you're recording ambient sounds, capturing the audio of a large choir, or using it as a hidden microphone on a theater performer, the d:screet Core 4061 Miniature Omnidirectional Microphone offers a natural and realistic sound that sets it apart. It's not just a microphone; it's a flexible addition to your audio toolbox.

DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector, Loud SPL, Low-Sens, Beige Features

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems

Warranty Information

This used item has a FREE 90-day warranty. See details.

Key Features

  • Capture pristine audio with this DPA omnidirectional lavalier microphone.
  • Experience exceptional sound quality, perfect for film, broadcast, or theater.
  • Achieve clear recordings even in loud environments with high SPL handling.
  • Enjoy versatile connectivity via the hardwired 3-Pin LEMO connector.
  • Benefit from minimal noise with a very low self-noise of only 26dB(A).
  • Discreet and lightweight design ensures comfortable, hidden microphone use.
