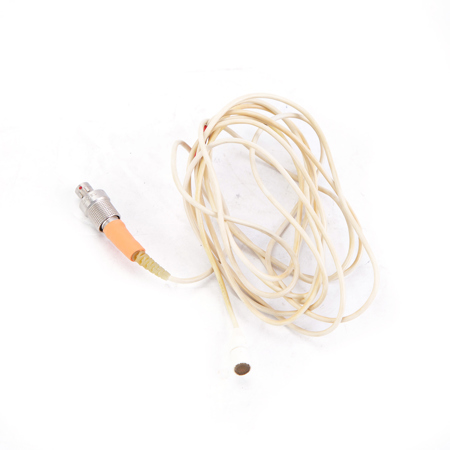

Used DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector, Loud SPL, Low-Sens, White

SKU: US1969878 MFR: 4061-OC-C-W03
Earn VIP Reward Points

What`s in the box:

  • DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector
  • High-Boost Protection Grid
  • Soft-Boost Protection Grid
See more

Key Features

  • Capture pristine audio with this DPA omnidirectional lavalier microphone.
  • Achieve high-quality sound with a wide 20 Hz - 20 kHz frequency range.
  • Enjoy versatile connectivity with the hardwired 3-Pin LEMO Connector.
  • This miniature microphone is perfect for film, interviews, and broadcast.
  • Experience exceptional clarity, even in loud environments up to 144dB SPL.
  • Minimize noise with a low self-noise of only 26 dB(A) for clean recordings.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Free Shipping

See Options

1

Add Adorama Protect:

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

DPA Microphones d:screet Core 4061 Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz

  • Frequency range, +/-2 dB

    Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity, nominal, +/-3 dB at 1 kHz

    6 mV/Pa; -44 dB re. 1 V/Pa

  • Equivalent noise level, A-weighted

    Typ. 26 dB(A) re. 20 MuPa (max. 28 dB(A))

  • Equivalent noise level, ITU-R BS.468-4

    Typ. 38 dB (max. 40 dB)

  • S/N ratio

    (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)

  • Total harmonic distortion (THD)

    < 1% THD up to 137 dB SPL peak

  • Dynamic range

    Typ. 111 dB

  • Max. SPL, peak before clipping

    144 dB

  • Output impedance

    30 - 40 Ohms

  • Cable drive capability

    Up to 300 m (984 ft)

  • Power supply (for full performance)

    For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power +/-4 V for full performance

  • Connector

    Hardwired 3-Pin LEMO Connector

  • Polarity

    Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • Current consumption

    Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Microphone diameter

    5.4 mm (0.21 in)

  • Microphone length

    12.7 mm (0.5 in)

  • Cable length

    1.8 m (5.9 ft)

  • Weight

    7.5g (0.26 oz) incl. Cable and MicroDot connector

About DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector, Loud SPL, Low-Sens, White

Before diving into the technical prowess of the d:screet Core 4061 Miniature Omnidirectional Microphone, it's essential to understand its lineage. Crafted with the meticulous engineering that DPA is renowned for, this microphone is a direct descendant of the groundbreaking d:screet 4060, which integrated top-tier technology from the realms of hearing aids and measurement microphones into a compact audio solution.

The d:screet Core 4061 stands out with its ability to handle loud sound pressure levels (SPLs), boasting a peak SPL tolerance of up to 144 dB before clipping occurs. This makes it an exceptional choice for capturing audio from high-volume sources like musical instruments and powerful vocals. Its lower sensitivity, approximately 10 dB less than the d:screet 4060, is particularly advantageous for discreet placements, such as on a theater performer's head or forehead, where the proximity to the sound source naturally increases the SPL.

This microphone's omnidirectional pickup pattern ensures a consistent and natural capture of sound from all directions, providing a realistic audio experience that cardioid microphones may not match. Omnidirectional mics like the d:screet Core 4061 are ideal for recording ambient sounds and large sound sources, such as choirs, due to their equal frequency response. While they may be prone to feedback in live settings, their resilience to wind, pop, and handling noise, along with the absence of proximity effect, make them a versatile tool in any audio professional's kit.

The d:screet Core 4061 is engineered for durability, featuring a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm, housed within DPA's unique Double Vent Protection System. This design offers exceptional resistance to humidity and sweat, ensuring reliable performance in the most challenging conditions. The microphone's cable is reinforced with Kevlar, providing robust protection against the rigors of daily use.

To tailor the microphone's acoustic response to specific applications, two interchangeable grids are provided. The Soft Boost Grid delivers a subtle 3 dB boost between 8-20 kHz, ideal for head-mounted scenarios or when a natural sound is desired. The High Boost Grid, on the other hand, offers a 10 dB boost around 12 kHz, perfect for chest placements. These grids are constructed from anodized stainless steel for durability and can be easily detached and cleaned.

The d:screet Core 4061 is available in four colors - black, brown, beige, and white - to blend seamlessly with various environments or clothing. For those requiring an even more rugged solution, a heavy-duty version is also available.

DPA's flexible adapter system ensures that the d:screet Core 4061 can be effortlessly integrated with a wide range of wireless systems. The microphone utilizes a MicroDot termination, allowing for the use of changeable adapters that maintain a secure and consistent connection with your chosen wireless brand. This versatility means that you are not confined to a single wireless system; adapters can be switched as needed without compromising sound quality.

For wired configurations, the d:screet Core 4061 is available with various connectors, including the hardwired 3-pin LEMO connector for Sennheiser systems, among others. XLR adapters are also available for those who prefer a traditional wired setup.

In summary, the d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector, Loud SPL, Low-Sens, White, is a robust, versatile, and high-quality audio solution for professionals seeking pristine sound capture in demanding environments.

DPA Microphones d:screet Core 4061 Miniature Omnidirectional Microphone with Hardwired 3-Pin LEMO Connector, Loud SPL, Low-Sens, White Features

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems

Warranty Information

This used item has a FREE 90-day warranty. See details.
