Shure Wireless Systems
Cardioid
Pressure gradient
Pre-polarized condenser element with vertical diaphragm
250Hz - 17kHz with typ. 4dB soft boost at 4 - 6kHz (-5dB at 100Hz)
Nominal +/-3dB at 1kHz: 20mV/Pa
-34dB re. 1V/Pa
A-Weighted:
Typical: 23dB(A) re. 20½Pa
Maximum: 26dB(A)
Re. 1kHz at 1Pa (94dB SPL): 71dB (A)
< 1 % up to 123dB SPL peak
< 1 % up to 120dB SPL RMS sine
Typical: 100dB
Peak before clipping: 134dB
30-40Ohms
Up to 984' / 299.93m
For wireless systems: Min. 5V - max. 50V through DPA adapter
With DAD6001-BC/DAD6024/DAD4099: 48V phantom power +/-4V for full performance
Hardwired TA4F
4' / 1.22m
0.06" / 1.52mm
Positively increasing sound pressure produces positive going voltage on MicroDot pin
0.2" / 5.08mm
Microphone: 0.4 x 1.2" / 10.16 x 30.48mm
Microphone include cable and MicroDot connector: 15g / 0.53oz
Combining high audio quality and low visibility, the DPA 4080 is well suited for broadcast, conference and other live performances in the studio or in the field. It is acoustically pre-equalized, offering a 4 dB presence boost, which makes the voice more distinguishable and improves speech intelligibility. Professionals will appreciate the light weight and the excellent speech reproduction.

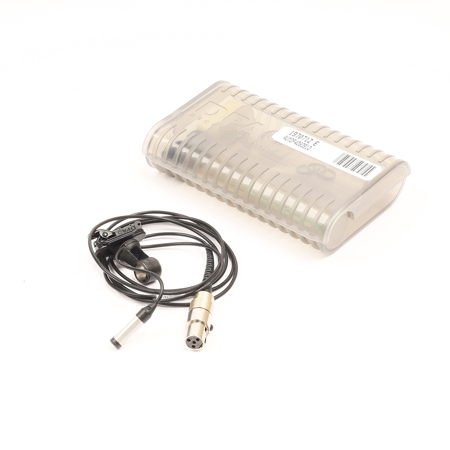

DPA 4080 is delivered with a pre-mounted black pop filter in a holder with an integrated shock mount, fixed on a clip. An additional white pop filter is enclosed. Because of the flexible and practical mounting solution, the microphone can easily be turned in all directions and fits both left and right buttoned shirts.All parts of the microphone are manufactured in highly resistant materials and designed to perform under stress.
