Dracast Light Kit Specifications

  • LED500: Optical System

    480 5mm LED bulbs in rectangular arrangement

  • LED500: Beam Angle

    45 degrees

  • LED500: Handling

    Metal Goose Neck Yoke, 360 Degree Swivel Mount

  • LED500: Mounting

    Baby 5/8" Pin

  • LED500: Swivel Angle

    360 degrees

  • LED500: Voltage Input

    12 V DC

  • LED500: Power Consumption

    30W

  • LED500: Power Connection

    Barrel Connector, 110 - 240 VAC, 50 - 60 Hz, 2.0 A

  • LED500: Battery Connection

    V-Mount Battery Plate (included)

  • LED500: Battery DC Voltage

    14.4 V DC

  • LED500: Battery Light Output

    100% of Total Output

  • LED500: Color Temperature

    Bi-Color (3,200K - 5,600K)

  • LED500: Color Rendition

    CRI > 95

  • LED500: Photometric (lux)

    3': 2700 lux at 3200K, 4400 lux at 4400K, 1950 lux at 5600K
    6': 750 lux at 3200K, 1250 lux at 4400K, 530 lux at 5600K
    9': 350 lux at 3200K, 600 lux at 4400K, 265 lux at 5600K
    12': 200 lux at 3200K, 350 lux at 4400K, 150 lux at 5600K

  • LED500: Photometric (fc)

    3': 251 fc at 3200K, 409 fc at 4400K, 181 fc at 5600K
    6': 70 fc at 3200K, 116 fc at 4400K, 49 fc at 5600K
    9': 33 fc at 3200K, 56 fc at 4400K, 25 fc at 5600K
    12': 19 fc at 3200K, 33 fc at 4400K, 14 fc at 5600K

  • LED500: Dimming

    0 - 100% Continuous

  • LED500: Controls

    Local On-Board Manual Controls

  • LED500: Housing Color

    Anodized Silver / Blue

  • LED500: Housing Build

    Aluminum

  • LED500: Est. LED Lifetime

    50,000 hours

  • Barndoor: Material

    Aluminum

  • Stand: Construction Material

    Aluminum

  • Stand: Load Capacity

    13lbs / 5.90kg

  • Stand: Maximum Height

    7.2' / 2.19m

  • Stand: Minimum Height

    3' / 0.91m

  • Stand: Folded Height

    3' / 0.91m

  • Dimensions

    LED500 Light Aperture: 10 x 10" / 254.00 x 254.00mm
    Barndoor: 11.2 x 11.4 x 2.9" / 284.48 x 289.56 x 73.66mm

  • Weight

    LED500: 2lbs / 0.91kg
    Stand: 4lbs / 1.81kg

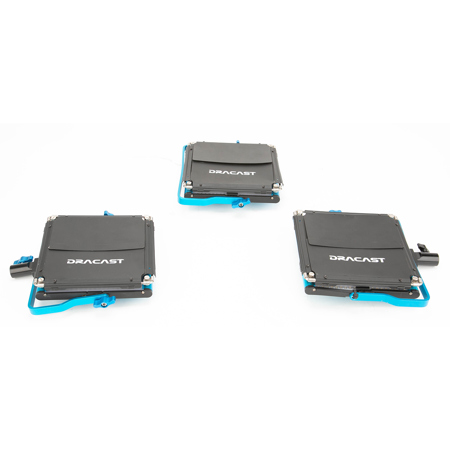

About Dracast S-Series LED500 Bi-Color LED 3-Light Kit - SKU#1680085

Dracast has put together this Silver Series LED500 Daylight LED 3-Light Kit to offer photographers a 3-point light solution for the studio or the road. The kit comes with 3 Silver Series LED500 panels, each with a set of 4-way barndoors, multi-voltage AC adapter, V-Mount battery plate and a light stand. A set of 5 filters and a carrying case are also included.

• 3x LED500 Daylight Lights with Barndoors
• 3x Kit Stands, 3x Power Supplies, Case
• 5600K Daylight Color Temperature
• V-Mount Battery Plate
• 45-Degree Beam Angle, CRI: 95
• AC or DC Operation
• 100-0% Dimming Featuring a slimmer and lighter design at just 2.0 lb, the LED500 Silver Series Daylight LED Light with V-Mount Battery Plate from Dracast is an ideal choice for the studio or location work where color accuracy, control and flicker-free output are of major importance. The LED500's daylight balanced output is well suited to for outdoor work or color matching HMI fixtures, while its high CRI of 95 renders colors with precision and fidelity. Dimming from 100-0% is conveniently done with a back-panel knob that adjusts the output with negligible color shift.

The low electrical draw of just 29W means a timely return on your investment. The durable anodized aluminum frame is supported by an sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. This LED500 can be used worldwide thanks to its included 100-240 VAC power adapter. You can also use the onboard V-Mount battery plate with optional 14.8 VDC batteries when mains power is unavailable. The included 4-way barndoors allow for contouring and control of the LED500's 45-degree beam angle.

LED500 Silver Series Daylight LED Light with V-Mount Battery Plate
Featuring a slimmer and lighter design, the LED500 Silver Series Daylight LED Light with V-Mount Battery Plate from Dracast weighs just 2 lb and is an ideal choice for the studio or location work where color accuracy, control and flicker-free output are of major importance. The LED500's daylight balanced output is well suited for outdoor work or color matching HMI fixtures, while its high CRI of 95 renders colors with precision and fidelity. Dimming from 100-0% is conveniently done with a back-panel knob that adjusts the output with negligible color shift. The low electrical draw of just 29W means a timely return on your investment.

The durable anodized aluminum frame is supported by an sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8" receiver. This LED500 can be used worldwide thanks to its included 100-240 VAC power adapter. You can also use the onboard V-Mount battery plate with 14.8 VDC batteries when mains power is unavailable. Accessories include optional 4-way barndoors for contouring and control of the LED500's 45-degree beam angle. A carrying case is included.

Barndoors for Silver Series LED500
These Dracast Barndoors for Silver Series LED500 control the spread of light and prevent unwanted spill. Made specifically for the Silver Series lights, they are constructed with an aluminum chassis in a 4-way design and come with a filter frame plus diffuser.

DLS-805 7.2' Air-Cushioned Light Stand
The DLS-805 Air-Cushioned Light Stand from Dracast extends from 3' to 7.2' and has a load capacity of 13 lb. It folds down to 36" for transport and weighs 4 lb. There is a 5/8" stud on top of the stand. The stand is composed of lightweight aluminum and is anodized to cut down on reflections. It is air cushioned to keep lighting fixtures damage-free when lowering. Large knobs are easy to grip and allow for quick, smooth adjustments.

Carrying Case for Three LED 500 Silver Series Panels
Store and protect three LED 500 Silver Series panels in this Dracast Carrying Case.

What's in the box:

  • Dracast 3x Silver Series LED500 Bi-Color LED Light
  • 3x V-Mount Battery Plate
  • 3x Barndoor
  • 3x AC Power Adapter
  • 3x DLS-805 7.2' Air-Cushioned Light Stand
  • 3x Carrying Case
  • Item Note: Missing Two-Piece Filter Set
