Used Dracast X-Series LED500 Bi-Color LED Panel 3-Light Kit with Injection Molded Travel Case

SKU: US1622022

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Dracast LED500 X Specifications

X Series LED500: Light Fixture

X Series LED500: Light Fixture

Jump to...
  • Item Type

    1x LED Light Panel

  • Included Filters

    Soft Diffusion

  • Included Storage Case

    1x Case

  • Photometrics (5600K)

    77.67 fc / 836 Lux at 3' (0.9m)
    23.69 fc / 255 Lux at 5.9' (1.8m)
    12.08 fc / 130 Lux at 8.9' (2.7m)
    7.25 fc / 78 Lux at 11.8' (3.6m)

  • Color Temperature

    3200 to 5600K

  • Color Accuracy Standard

    CRI >= 95
    TLCI 95

  • Cooling System

    Passive

  • Dimming

    Yes, Built-In Dimmer
    0 to 100%

  • Beam Angle

    100 Degree

  • Front Accessory Mount

    Proprietary

X Series LED500: Connectivity

Jump to...
  • Wireless Remote Control Type

    Bluetooth

  • Mobile App Compatible

    Yes: Android & iOS
    App Name: DRX

  • Wireless Range

    100' (30.5m)

X Series LED500: Power & I/O

Jump to...
  • Power Source

    AC to DC Adapter (Included)
    Battery (Not Included)

  • Inputs/Outputs

    1x Barrel / Coax Power Input

  • Battery Plate Type

    2x Sony L-Series / NP-F (Built-In)

  • Battery

    2x Rechargeable (Not Included)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • Included Adapter / Cable

    1x Edison Plug to Barrel / Coax AC to DC Adapter

  • Inline Switch

    No

  • Power Pass-Thru

    No

  • Power Consumption

    35 W

X Series LED500: Mounting

Jump to...
  • Yoke Type

    Manually-Operated Yoke

  • Fixture Mounting

    1 x 5/8" Receiver (Via Yoke Mount)

X Series LED500: Environmental

Jump to...
  • Environmental Protection

    None

X Series LED500: Battery

Jump to...
  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Type

    NP-F

  • Battery Quantity

    6

X Series LED500: General

Jump to...
  • Display

    Yes

  • Material

    Aluminum, Plastic

  • Dimensions

    Fixture: 8 x 8 x 2" (20.3 x 20.3 x 5.1cm)
    Fixture with Yoke: 11.1 x 10.9 x 2" (28.2 x 27.7 x 5.1cm)

  • Weight

    2.4 lbs (1.1kg)

Barndoors

Jump to...
  • Item Type

    4-Leaf Barndoors

  • Light Compatibility

    Proprietary Mount: For Dracast DRX Series 500 LED

  • Material

    Aluminum

DCB 7975 Travel Case

Jump to...
  • Dividers

    No

  • Closure Type

    Latch

  • Carry and Transport Options

    1x Telescoping Handle
    1x Handle
    1x Top Handle

  • Casters

    2

  • Material

    Resin

  • ATA-Compliant

    Yes

  • Lid Depth

    1.9" (4.7cm)

  • Security Options

    Padlock

  • Environmental Protection

    Advertised as Dust Resistant/Submersible

  • Dimensions (W x H x D)

    Exterior: 28.2 x 20.4 x 12.3" (71.7 x 51.8 x 31.3cm)
    Interior: 29 x 18 x 10.7" (73.7 x 45.7 x 27.3cm)

  • Weight

    25.4 lbs (11.5kg)

About Dracast X-Series LED500 Bi-Color LED Panel 3-Light Kit - SKU#1622022

Are you in search of a versatile, portable, and high-quality lighting solution for your photography or videography needs Look no further than the Dracast X Series LED500 35W Bi-Color LED 3-Light Kit. This compact LED panel light kit, weighing a mere 3.0 lbs, is designed with portability and durability in mind, making it an ideal choice for on-location shoots.

The X Series LED500 kit features three bi-color LED lights, each offering an adjustable color temperature range of 3200K to 5600K. This wide range allows you to easily match ambient lighting conditions, making it perfect for interview lighting, portrait lighting, and other scenarios where matching existing light sources is essential. The lights boast a high CRI >= 95 and TLCI, ensuring excellent color rendition across the entire CCT range.

Each light in the kit comes with an installed mounting yoke with a 5/8" baby pin receiver, enabling fast and easy mounting on compatible light stands or C clamps. The kit also includes 4-way barndoors, light stands, and a durable, resin-reinforced injection molded plastic travel case for secure storage and transport.

One of the standout features of the X Series LED500 is the ability to control the lights manually via the control panel on the back of the fixture, or remotely using the free Dracast DRX companion app available for iOS and Android devices. This app allows you to control one or multiple X Series lights simultaneously from over 100 feet away, adjust dimming from 0% - 100%, and even select and adjust color presets and special effects.

The X Series LED500 lights are built with an anodized aluminum metal housing for enhanced durability. They include a pre-installed diffusion filter for soft, even lighting and four-way barn doors for excellent light output control. The lights can be powered by the included AC/DC power adapter or with NP-F style batteries (sold separately) for maximum portability.

In summary, the Dracast X Series LED500 35W Bi-Color LED 3-Light Kit is a versatile, high-quality, and portable lighting solution that offers excellent color rendition, adjustable color temperature, and remote control capabilities. It's an affordable choice for professionals seeking a durable and versatile lighting kit for their photography or videography needs.

Dracast X-Series LED500 Bi-Color LED Panel 3-Light Kit - SKU#1622022 Features

  • Easily match ambient lighting with 3200K - 5600K adjustable CCT
  • CRI >= 95 and TLCI for excellent color rendition across the entire CCT range
  • Excellent for interview lighting, portrait lighting, and on-location lighting where matching existing light sources is essential
  • Built with an anodized aluminum metal housing for excellent durability
  • Quick and easy manual control with the X Series advanced digital user interface
  • Plug the X Series panel into the wall using the included AC / DC power adapter or take your light on location with battery power
  • Lights include a dual NP-F battery plate compatible with NP-F style batteries (sold separately)
  • Light can operate for several hours on a full battery charge

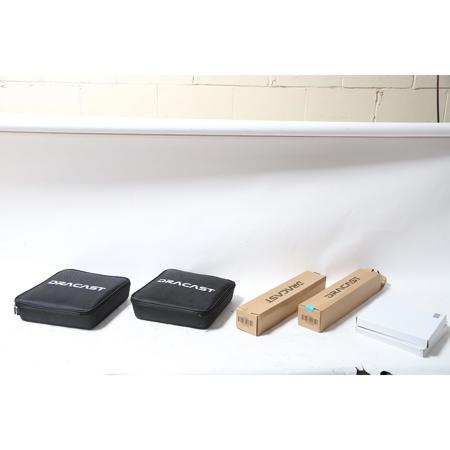

What's in the box:

  • 3x Light Panels
  • 3x Power Supply
  • 3x Barndoors
  • 3x Light Stand
  • 3x Soft Case
  • 3x Diffusion Filter
  • Hard Travel Case **
