edelkrone SliderPLUS V2 Specifications

  • Recommended Carrying Capacity

    17lbs (7.71kg)

  • Mounting Standards

    3/8"

  • Travel On Ground

    200mm (7.87")

  • Travel on Tripod

    400mm (15.74")

  • Working Mechanism

    Non-Friction Ball Bearing
    Tracking System

  • Materials

    Temperature Treated Aluminum Rods
    Steel Ball Bearings
    100% CNC Machined Aluminum Parts

  • Suggested Tripod Leg Distance

    The distance between the points that the tripods legs contacts the ground should be 70cm or more

  • Dimensions (W x L x H)

    336 x 92 x 64mm (21.10 x 3.62 x 2.51cm)

  • Weight

    1.50kg (3.30lbs)

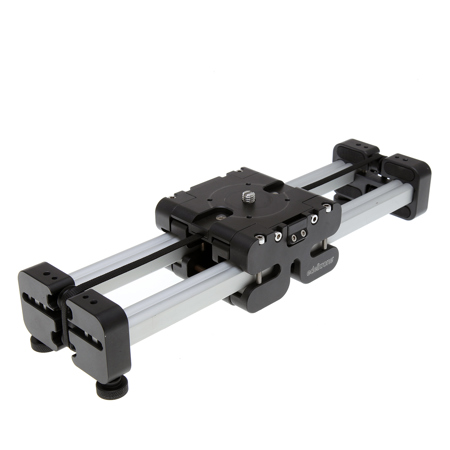

About Edelkrone 13.2" SliderPLUS Small - SKU#1273781

The edelkrone 15.70" Small SliderPLUS V2 is a slider that uses a unique tracking mechanism that allows the rails of the slider to move with the camera when mounted on a tripod. This gives the slider 15.7" of sliding range in a unit that is only 13.2" long. Its compact sizes makes it ideal for travel, as it takes of up less room in your camera bag than other sliders with a similar sliding range. The slider supports loads up to 17 pounds.

The tracking system works by having two thin bands that are connected to each side of the mounting plate and base plate. When placed on a flat surface, the base plate travels in the opposite direction of the mounting plate. This will yield results of traditional tripods. To take advantage of the design, the SliderPLUS V2 needs to be mounted to a tripod. When mounted on a tripod, the movement of the base plate is restricted, causing the rails to move through the base plate in the same direction as the mounting plate.

With traditional sliders, you're often limited to the amount of dolly in/out you can do, because the slider itself usually will end up in the shot eventually. With the SliderPLUS V2, the rails are also retracting backwards with the camera, allowing for longer dolly in/out shots. A lock mechanism can be engaged to keep the slider from moving if the tripod becomes unlevel.

The slider provides a 3/8" threaded hole at the bottom of the base plate for attaching to tripods and comes with interchangeable 1/4" and 3/8" screws for mounting a camera or flat base tripod head to the mounting plate.

It has a hidden Dolly inside
With regular sliders, since the slider itself will get in the shot eventually, you only get so little dolly in/out shots. With SliderPLUS V2 Small the rails are also retracting backwards with the camera so you get at least twice the amount of dolly in/out shots compared to regular sliders. This can be a real life saving advantage and gives the SliderPLUS V2 Small a complete new potential.

Action Module
Slide Control, Time Lapse, Stop Motion & Macro Slides in a single module. Action module is another mathematical genius from edelkrone that communicates with you perfectly and composes the final work without involving you in any learning curve.

Target Module
You will compose your curved and parallax shots anywhere you can place your tripod on. Target module introduces responsive motion control technology (RMC). Target will let your camera lock onto the subject and keep it in the same position inside the frame.

Ready to be attached on your tripod
To take advantage of the slider's full potential it has to be attached on a Tripod. You will be able to attach the SliderPLUS V2 Small on your tripod without the need for any extra parts.

Feel free to move around with it
The SliderPLUS V2 Small has with super easy locking button, it locks rock solid and with its super compact size it helps you move around freely.

Can operate on ground too
Well, operating SliderPLUS V2 Small on ground (without attaching it on a tripod) sure works too. It has adjustable feet to help you level it on non-perfect surfaces. But remember that you will get a normal slider's camera travel range when you use it like that.

Precise manufacturing with highest grade material
All the parts of SliderPLUS V2 Small are machined with CNC technology from the highest grade materials. It is wear resistant, durable. It is going to withstand the harsh production environments that you will put it through.

What's in the box:

  • Original Box
  • Item Note: Missing 1 of 4 feet
