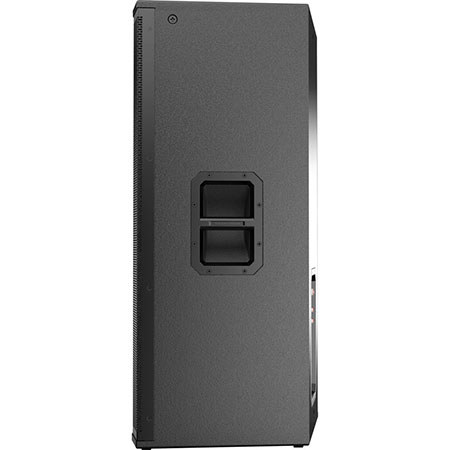

Used Electro-Voice EXT-35P 15" 3-Way Powered Loudspeaker, 2000W Power Rating, 48Hz-20kHz at -3 dB Frequency Response, 136dB Peak SPL, Single

SKU: US1921307 MFR: F.01U.302.283 DISC
Earn VIP Reward Points

Key Features

  • 2000 W amplifier and 136 dB peak SPL
  • Single-knob DSP includes presets
  • Loudspeaker system performance monitoring
  • Integrated LCD and front panel LED
  • Features three high-sensitivity transducers
  • Ideal for floor, stacked or tilt pole mount (0 or 7.5 degrees)
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Electro-Voice EXT-35P Specifications

  • Frequency Response (-3 dB)

    48 Hz - 20 kHz

  • Frequency Range (-10 dB)

    38 Hz - 20 kHz

  • Maximum SPL

    136 dB peak

  • Coverage (H x V)

    90 deg. x 60 deg.

  • Power Rating

    2000 W

  • LF Transducer

    SMX2151 380mm (14.96")

  • HF Transducer

    DH3-B 1.25" titanium compression driver

  • MB Transducer

    EVS-6C 6.5" mid-bass driver

  • Crossover Frequency

    700 Hz, 2900 Hz

  • Connectors

    2x XLR/TRS combo jack and 1x XLR link output

  • Enclosure

    18mm (0.70"), 13-ply birch plywood with EVCoat

  • Grille

    16AWG steel with powdercoat

  • Suspension

    8x M10 suspension points

  • Power Consumption

    100 - 240 V-, 50 - 60 Hz, 1.6 - 0.8 A

  • Dimensions (H x W x D)

    1023 x 469 x 426mm / 40.27 x 18.46 x 16.77"

  • Weight

    84.2lbs / 38.19kg

About Electro-Voice EXT-35P 15" 3-Way Powered Loudspeaker, 2000W Power Rating, 48Hz-20kHz at -3 dB Frequency Response, 136dB Peak SPL, Single

The Electro-Voice EXT-35P (Single) is a high-power three-way loudspeaker; it can be used in a variety of portable and permanent applications. The DSP (Digital Signal Processing) menus offer extensive configurations, crossovers, selective voicing, protection limiters, EQ modes and a lockout mode prevents casual changes to the system. Loudspeaker system performance is optimized via an LCD screen. The front LED indicates power or can be configured to indicate limit.

The ETX-35P features three high-sensitivity transducers, for high output sound which is optimized for precise coverage and low distortion. EV designed and manufactured transducers include SMX woofer technology using composite cone materials, flux stabilizing rings and thermal management. This transducer yields lower distortion, smooth response and high SPL. The high-efficiency DH3-B compression driver has a convex diaphragm driving a coherent phase device extending frequency response to 20 kHz. EV's FIR-Drive technology utilized the latest FIR (Finite Impulse Response) filter technology to optimize transducer linearity and advanced limiter algorithms for independent peak and thermal transducer protection. The enclosure is constructed out of 18-mm, 13-ply birch plywood finished with EVCoat. ETX Powered Loudspeakers combine EV-engineered intelligent DSP, high-powered amplifiers and high-efficiency transducers to deliver that legendary EV sound and performance.

Electro-Voice EXT-35P 15" 3-Way Powered Loudspeaker, 2000W Power Rating, 48Hz-20kHz at -3 dB Frequency Response, 136dB Peak SPL, Single Features

  • 2000 W amplifier and 136 dB peak SPL
  • Single-knob DSP includes presets for multiple configurations and top+sub combinations (performance style, locations and space)
  • Loudspeaker system performance monitoring via integrated LCD and front panel LED
  • Features three high-sensitivity transducers, for high output sound which is optimized for precise coverage and low distortion
  • Designed for floor, stacked or tilt pole mount (0 or 7.5 degrees) for portable or permanent installation (Eight (8) M10 threaded suspension points
