Used Electro-Voice R300-L-A Lapel System, Includes R300 Receiver, BP-300 Bodypack Transmitter, ULM18 Directional Microphone and Case - A Band: 618.5-633.500MHz

SKU: US1800681

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Electro-Voice R300-L-C Specifications

  • R300: Receiver Type

    Synthesized PLL

  • R300: Frequency Range (RF)

    C Band: 516 - 532 MHz

  • R300: Number of Channels

    32

  • R300: Modulation

    +/- 40 kHz

  • R300: Diversity

    True Antenna

  • R300: RF Sensitivity

    <1.0 Microvolts for 12dB SINAD

  • R300: Image Rejection

    > 55dB

  • R300: Squelch

    Tone Code plus Amplitude

  • R300: Frequency Response

    80 Hz - 18 kHz +/- 2dB

  • R300: Balanced Output

    20dBV (max at 40 kHz deviation)

  • R300: Unbalanced Output

    Adjustable 8 mV to 0.755V RMS

  • R300: Distortion

    < 1.0%, 0.4% typical (ref 1 kHz, 40 kHz deviation)

  • R300: Signal-to-Noise Ratio

    > 100dB A-Weighted

  • R300: Dynamic Range

    > 95dB

  • R300: Power Requirements

    12-16 VDC, 500mA max

  • R300: Operating Temperature

    5 to 45 deg. C / 41 to 113 deg. F

  • BP-300: Radiated Output

    8 mW typical

  • BP-300: Back Lit LCD Display

    Channel, Frequency, Mute and Battery Level

  • BP-300: Standard Lavalier Microphone

    Electro-Voice ULM18 Uni-Directional Condenser

  • BP-300: TA4F Connector Wiring

    Pin 1: Ground; Pin 2: Mic Input
    Pin 3: +5V bias; Pin 4: +5V thru 2.2kOhms

  • BP-300: Power Requirement

    Two AA batteries

  • BP-300: Battery Life (Typical)

    > 14 hours with AA alkaline typical

  • BP-300: Antenna

    Flexible external 1/4 wave

  • ULM18: Generating Element

    Condenser, back electret

  • ULM18: Frequency Response

    100 -18,000 Hz

  • ULM18: Polar Pattern

    Cardioid

  • ULM18: Impedance

    200Ohms

  • ULM18: Sensitivity, Open Circuit Voltage

    5.6 mV/pascal, 1 kHz

  • ULM18: Cable length

    1m / 3.28'

  • ULM18: Polarity

    Pin 1: Ground; Pin 2: Mic Input
    Pin 3: +5V bias
    Pin 4: N/C

  • ULM18: Connector

    TA4F

  • Dimensions

    BP-300 (H x W x D): 84 x 66 x 23mm / 3.31 x 2.60 x 0.91"
    R300 (H x W x D): 43 x 206 x 210mm / 1.69 x 8.11 x 8.27"
    ULM18: Without windscreen and Cable: 23 x 8mm / 0.91 x 0.31", With Windscreen: 25.5 x 8mm / 1.00 x 0.31"(without cable)

  • Weight

    ULM18: 20g / 0.71oz

About Electro-Voice R300-L-A Lapel System - A Band: 618.5-633.500MHz SKU#1800681

With the R300-L-C Lapel System, you'll experience the convenience and quality of a robust UHF wireless bodypack system, designed for a wide range of applications where a wireless lavalier microphone is essential. This system includes the R300 Receiver, BP-300 Bodypack Transmitter, ULM18 Directional Microphone, and a protective case, all operating in the C Band frequency range of 516-532MHz.

The BP-300 Bodypack Transmitter, housed in a rugged metal casing, is user-friendly and powered by two AA batteries, providing up to 14 hours of uninterrupted use. This makes it an economical choice for applications that require daily operation. The transmitter also features a mute function that keeps the RF signal live while muting the audio, preventing noise in the audio system and protecting your channel.

Included in the system is the ULM18, a high-quality directional (cardioid) condenser lavalier microphone. This microphone is ideal for sound reinforcement or voice recording, offering users the convenience of a hands-free presentation or performance experience. The ULM18's directional cardioid polar pattern helps reduce sound system feedback when used correctly, ensuring clear and crisp audio output.

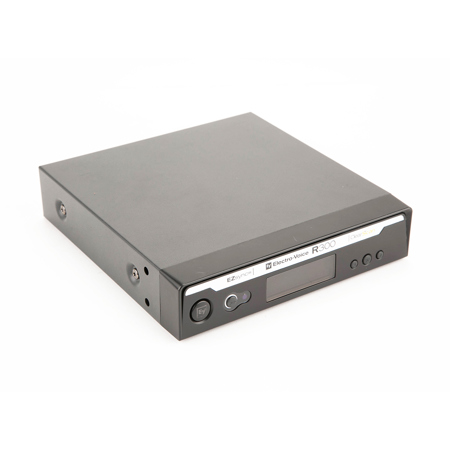

The R300 Receiver is a true game-changer in the wireless microphone market, offering professional-grade features at an entry-level price. With one-touch ClearScan and EZsync transmitter update, the R300 is as easy to set up and use as any entry-level wireless microphone. ClearScan technology scans through all 32 preset channels to find the clearest one, ensuring noise-free operation with the longest operating range. EZsync uses infrared technology to match the transmitter frequency to the receiver, ensuring error-free setup with just the touch of a button.

The R300 Receiver's dual antenna diversity helps avoid signal dropouts, and its durable metal frame can be used on a tabletop or rack-mounted with optional hardware. The receiver also features a backlit LCD display and battery gauge, providing essential information at a glance.

The ULM18 microphone comes with a 1-meter cable terminating with a TA4F connector, an alligator-style clothing clip for secure placement, and a detachable wire mesh windscreen for superior voice intelligibility.

In summary, the R300-L-C Lapel System offers a comprehensive solution for those seeking a reliable, high-quality wireless lavalier microphone system. Its combination of advanced features and user-friendly operation makes it an excellent choice for a variety of applications.

Electro-Voice R300-L-A Lapel System - A Band: 618.5-633.500MHz SKU#1800681 Features

  • UHF wireless lavalier microphone system for hands-free presentations and performances
  • Rugged BP-300 Bodypack Transmitter with 14-hour battery life and mute function
  • ULM18 Directional Condenser Microphone with cardioid polar pattern to reduce feedback
  • One-touch ClearScan and EZsync for easy setup and reliable, noise-free operation
  • Dual antenna diversity on R300 Receiver to minimize signal dropouts
  • Professional-grade features with metal construction, suitable for tabletop or rack mounting

What's in the box:

  • Electro-Voice R300 Receiver
  • BP-300 Bodypack Transmitter
  • ULM18 Directional Microphone
  • Case
  • Mesh Windscreen
  • Clothing Clip
  • 2x Antennas
  • Power Adapter
