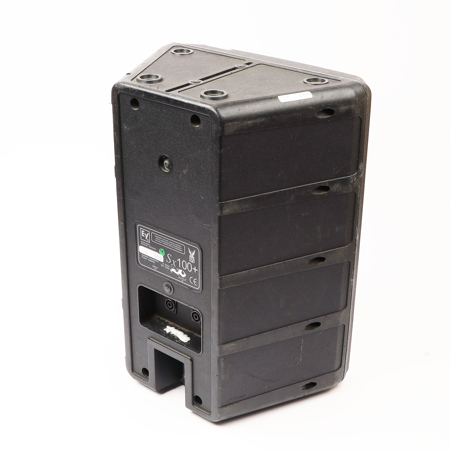

Used Electro-Voice Sx100+E 200-Watt 12" 2-Way Passive PA Speaker, 65x65deg. Constant Coverage Horn, 8 Ohms Nominal Impedance, Neutrik Speakon Connector, Single, Black

SKU: US1781108

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Electro-Voice F.01U.265.557 Specifications

  • Frequency Response (-10 dB)

    60 Hz - 25 kHz

  • Sensitivity

    98 dB

  • Max SPL

    127 dB

  • Impedance

    8 ohms Nominal, 5.6 ohms Min.

  • Horizontal Coverage

    65 deg.

  • Vertical Coverage

    65 deg.

  • Power Handling

    200W Continuous, 800W Peak

  • LF Transducer

    12" (300mm)

  • HF Transducer

    1" (25mm) exit DH3 Comp. Driver

  • Connectors

    Neutrik Speakon

  • Enclosure Material

    Copolymer

  • Grille

    Powder Coated Steel

  • Dimensions (H x W x D)

    23.1 x 16.9 x 12.3" (586.74 x 429.26 x 312.42mm)

  • Weight

    32 lbs (14.51 kg)

About Electro-Voice Sx100+E 200-Watt 12" 2-Way Passive PA Speaker - Single SKU#1781108

Become a master of sound with the Electro-Voice SX100+E, a 200-watt, 12-inch 2-Way Passive PA Speaker. This high-efficiency, constant-directivity black portable speaker system is the result of meticulous computer-aided design and modeling by Electro-Voice's expert engineers. It's a state-of-the-art professional loudspeaker system that delivers superior sound quality in both portable and fixed environments.

The SX100+E is not just a speaker, but a powerhouse of sound. Its 2-way passive design ensures clear and balanced sound across a wide range of frequencies. The high-frequency section utilizes a molded-in, 65-degree x 65-degree constant-directivity horn. This unique pattern enhances intelligibility, making vocals sound natural yet powerful, even in reverberant, noisy rooms.

The coverage pattern of this speaker is uniform, maintaining excellent sound quality even at 45 degrees off-axis, providing a total coverage angle of 90 degrees. The horn's unique Varipath throat geometry extends the driver output to the corners of the room, ensuring uniform coverage throughout the audience, including areas that typically do not receive the strongest coverage.

Driving the SX100+E's high-frequency horn is the DH3, a one-inch-throat, wide-bandwidth, titanium-diaphragm driver. This driver uses a unique, convex-drive TimePath phasing plug structure (U.S. Patent #4,525,604) for smooth and extended high-frequency response.

The speaker also features a durable and reliable Neutrik Speakon connector, known for its ability to withstand heavy use. With a nominal impedance of 8 ohms, this speaker is designed to be used in conjunction with a powered mixer or amplifier to produce high-quality sound.

Experience the power and versatility of the Electro-Voice SX100+E, a speaker designed for those who demand the best in audio performance.

Electro-Voice Sx100+E 200-Watt 12" 2-Way Passive PA Speaker - Single SKU#1781108 Features

  • Compact, portable sound reinforcement
  • Ideal for live sound, speech, DJ, AV, institutional use
  • 1.25-inch DH3/2010A titanium HF compression driver
  • 65deg. x 65deg. Constant-directivity Varipath horn
  • High efficiency, 127 db maximum SPL
  • Ring-Mode Decoupling (RMD) for increased intelligibility
  • Integral monitor stand, pole mount, rigging points

What's in the box:

  • Electro-Voice Sx100+E 200-Watt 12" Two-Way Passive PA Speaker
