Elinchrom Ranger Quadra Hybrid Li-Ion PRO Set A (2 Heads) Specifications

  • Energy (Ws/J)

    400

  • Power distribution

    Asymmetrical 2:1 ratio

  • F-Stop (1m, 100 ISO, reflector 48deg.)

    At 100%: 64.5

  • Power range f-stop

    6.6

  • Power range Ws

    100%: 25 - 400 - 66%
    Output A: 17 - 268 - 33%
    Output B: 8.2 - 132

  • Power range

    1/1 - 1/32

  • Power increments in f-stop

    1/10 to programmable 5/10 - 1/1

  • Flash duration

    t0.5 at max. power in s: RQ S / A head
    Output A (100%): 1/1200 / 1/2800
    Output B (33%): 1/3000 / 1/5700
    Output A+B (100%): 1/1500 / 1/4000

  • Recycling, FAST in s

    Output A: 0.36 - 2.0
    Output B: 0.17 - 0.73

  • Recycling, SLOW in s

    Output A: 0.86 - 6.6
    Output B: 0.33 - 2.3

  • Color temperature in deg.K at max. power

    5500

  • Auto Power Dumping

    Adjusts power settings automatically

  • Power stability

    +/- 0.5%

  • Modeling lamp mode

    On, off, programmable timer and continuous

  • Flashes out of one charged battery

    At min. power, SLOW / FAST recycle: 4800 / 4200
    At max. power, SLOW / FAST recycle: 320 / 280

  • Battery

    Lithium-Ion 16.8 V / 3.3 Ah

  • Quick charger: approx. recharge time

    1 h 30 min

  • EL-Skyport (Built-in)

    Integrated transceiver, 8 Frequency Channels and 4 Groups with full RX features

  • Sync voltage

    5 V (compatible with all cameras

  • Sync socket

    3.5 mm Jack

  • Dimensions

    Ranger Quadra Hybrid including Battery box: 15x8.5x18.5cm / 5.90x3.34x7.28"

  • Weight

    2kg / 4.40lbs

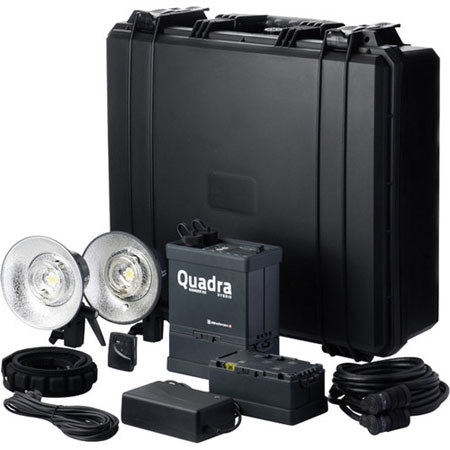

About Elinchrom Ranger Quadra Hybrid Li-Ion PRO Set A (2 Heads)

The Elinchrom Ranger Quadra Hybrid Li-Ion PRO Set A (2 Heads) is a compact portable 400Ws battery flash system for studio and outdoors use. Complete with fast recycling times, wireless trigger and remote options via the EL-Skyport, the Quadra Hybrid RX really are a perfect system for anyone who likes to work away from the mains. With the Lithium-Ion battery, the whole pack only weighs 2 kg and allows you -320 flashes at full power while being an incredible 15x8.5x18cm.

Latest firmware manages flash power consistency, remote power variation, LED modeling lamp and even more RX features than are currently available on any other unit. The Action heads in these sets are ideal for sport photography, fashion photography and Action Freezing photography.

Elinchrom Ranger Quadra Hybrid Li-Ion PRO Set A (2 Heads) Features

  • EL-Skyport (built-in): Radio remote control of power settings and flash triggering
  • Unique control: full control over the units with the EL-skyport app for apple devices via the optional Wi-Fi module or with the EL-skyport software via the optional USB transceiver RX
  • Power Options: Two outlets - 2: 1 ratio. single high power channel and single superfast channel
  • Versatility: pre-flash detector system to enable the use of Quadra Hybrid with speedlights
  • Security: 5V sync socket for maximum protection of digital cameras and secured battery
  • Stability: power auto-Dump & power controlled
  • Family: With the EL-Reflector adapter all accessories and Rotalux softboxes up to 135 cm can be used

What's in the box:

  • Elinchrom Quadra Hybrid RX
  • RQ Hybrid Action Head (2)
  • Quadra Flashhead Cable (2)
  • RQ Set Case
  • Charger
  • Sync Cord and Shoulder Strap
  • Item Note: MissingBattery; Charger; US Power Plug; EL-Skyport Transmitter SPEED
  • Case
  • Instruction Manual
