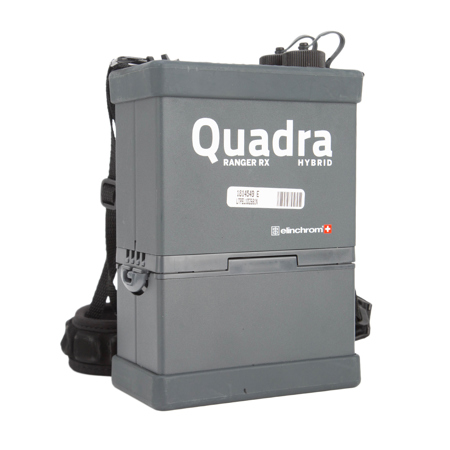

Elinchrom Ranger Quadra Hybrid with Lithium-Ion Battery - SKU#1814549

Picture does not represent the actual item
See what's in the box

See all Elinchrom items

Used Elinchrom Ranger Quadra Hybrid with Lithium-Ion Battery

SKU: US1814549
(3)

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Used Elinchrom Ranger Quadra Hybrid Action Head
undefined undefined: Picture 1 regular
Used Elinchrom Ranger Quadra Hybrid without Battery
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Elinchrom Ranger Quadra Hybrid Specifications

  • Sync voltage

    5 V (compatible with all cameras)

  • Energy (Ws/J)

    400

  • Sync socket

    3.5 mm Jack

  • Power distribution

    Asymmetrical 2:1 ratio

  • Dimensions

    Ranger Quadra Hybrid including Battery box: 15x8.5x18.5cm / 5.90x3.34x7.28"

  • F-Stop (1m, 100 ISO, reflector 48deg.)

    At 100%: 64.5

  • Weight

    2kg / 4.40lbs

  • Power range f-stop

    6.6

  • Power range Ws

    100%: 25 - 400 - 66%
    Output A: 17 - 268 - 33%
    Output B: 8.2 - 132

  • Power range

    1/1 - 1/32

  • Power increments in f-stop

    1/10 to programmable 5/10 - 1/1

  • Flash duration

    t0.5 at max. power in s: RQ S / A head
    Output A (100%): 1/1200 / 1/2800
    Output B (33%): 1/3000 / 1/5700
    Output A+B (100%): 1/1500 / 1/4000

  • Recycling, FAST in s

    Output A: 0.36 - 2.0
    Output B: 0.17 - 0.73

  • Recycling, SLOW in s

    Output A: 0.86 - 6.6
    Output B: 0.33 - 2.3

  • Color temperature in deg.K

    At max. power: 5500

  • Auto Power Dumping

    Adjusts power settings automatically

  • Power stability

    +/- 0.5%

  • Modeling lamp mode

    On, off, programmable timer and continuous

  • Flashes out of one charged battery

    At min. power, SLOW / FAST recycle: 4800 / 4200
    At max. power, SLOW / FAST recycle: 320 / 280

  • Battery

    Lithium-Ion 16.8 V / 3.3 Ah

  • Quick charger: approx. recharge time

    1 h 30 min

  • EL-Skyport (Built-in)

    Integrated transceiver, 8 Frequency Channels and 4 Groups with full RX features

  • Sync voltage

    5 V (compatible with all cameras)

  • Sync socket

    3.5 mm Jack

  • Dimensions

    Ranger Quadra Hybrid including Battery box: 15x8.5x18.5cm / 5.90x3.34x7.28"

  • Weight

    2kg / 4.40lbs

About Elinchrom Ranger Quadra Hybrid with Lithium-Ion Battery - SKU#1814549

The Elinchrom Ranger Quadra Hybrid with Lithium-Ion Battery is a compact portable 400 Ws battery flash system for studio and outdoors use. Complete with fast recycling times, wireless trigger and remote options via the EL-Skyport, the Quadra Hybrid really are a perfect system for anyone who likes to work away from the mains. Latest firmware manages flash power consistency, remote power variation, LED modeling lamp and even more RX features than are currently available on any other unit and Lithium-Ion batteries for lightweight and high flash capacity. Two heads are available for the RQ system: an A (Action) head for action freezing flash durations and an S (Standard) head for general purpose photography.

Elinchrom Ranger Quadra Hybrid with Lithium-Ion Battery - SKU#1814549 Features

  • Built-in EL-Skyport radio receiver for power settings control and flash triggering
  • EL-Skyport with 8 Frequency Channels with 4 Groups compatible with the ELS Transmitter Speed
  • EL-Skyport Speed Sync mode for synchronization up to a 1/320 s on enabled SLR cameras
  • Unique control from an iPhone, iPad and iPod Touch with the EL-Skyport App via the optional Wi-Fi module
  • Additional features can be found when used with EL-Skyport Software such as Flash-Delay for strobing-effects
  • Two power outlets - 2: 1 ratio, Single high power channel and single superfast channel
  • Pre-flash detector system to enable the use of Quadra RX with speedlights
  • Programmable ready beep function
  • Auto energy saver
  • 5V sync socket for maximum protection of digital cameras
  • Only 4.4lbs (1.99kg) with Lithium battery
  • Super small and lightweight heads - compact and only .55lbs (0.25kg)
  • LED modeling lamp
  • Action flashtube for sharper images - reach an incredible 1/6000th of a second with an Action head
  • With the EL-Reflector Adapter all accessories and Rotalux softboxes up to 53" (135 cm) can be used

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Elinchrom Ranger Quadra Hybrid
  • Battery Box
  • Charger
  • Sync Cord
  • Shoulder Strap
