Fat Shark FPV Headset Specifications

  • FOV (field of view)

    30 deg. diagonal

  • Optics Type

    Plastic optics (binocular 6p direct view optical engine)

  • Interpapillary Distance (IPD)

    59 to 69mm (adjustable)

  • Optional Diopter Lens Inserts

    -2, -4, -6 dpt

  • Display

    800x480 WVGA LCD
    NTCS/PAL auto selecting
    Side/Side 3D
    HDMI Support 720p

  • Audio

    Stereo

  • User Controls

    Channel Selection
    Volume Control
    Mode Selection (Wired/Wireless)
    Display Control
    DVR Control
    HT Control

  • Power Supply

    7 - 13V (2S/3S supply) (fan plate to 9V only)

  • Power Consumption

    390mA wireless/ 230mA direct mode (no RX) (at 7.4V nominal)

  • RF Modules

    Infinite channel support on multiple bands

  • Head Tracker

    Modular (sold separately)

  • DVR

    MicroSD support to 32Gb
    6Mbps record rate (MJPG compression, 30 fps, AVI)
    File playback (native recording, no codec support)
    PAL/NTSC continuous scan auto detect/mode change
    Auto save if power removed

  • Interface

    3.5mm AV in/out port
    Power in port
    3.5mm 3p earphone port
    MiniDIN4 data port (head tracking)
    MicroSD insert slot
    RF modular bay
    Mini HDMI port

  • Dimensions

    169.2 x 80 x 45.5mm / 6.66 x 3.15 x 1.79"

  • Weight

    152g / 5.36oz

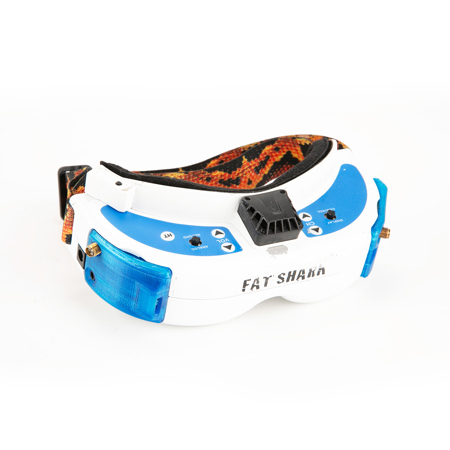

About Fat Shark DominatorV3 Modular WVGA FPV Headset - SKU#1697102

This is the DominatorV3 Modular WVGA Headset by Fat Shark. The DominatorV3 focuses on HDMI connectivity with 720p support through a mini HDMI port and 16:9 format WVGA image. An improved DVR can exchange between NTSC and PAL format as well as power backup to write files should the power be disconnected while recording. The DominatorV3 has modular bays to support 1G3, 2G4 and 5G8 band receivers and ability to add the Trinity head tracker.

Fat Shark DominatorV3 Modular WVGA FPV Headset - SKU#1697102 Features

  • 3m AV cable
  • HDMI cable with mini to micro and mini to standard adapters
  • 1800 mAh battery with LED indicator
  • Charge cable adapter
  • Zipper carry case
  • DC DIY cable

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Fat Shark DominatorV3 Modular WVGA FPV Headset
  • Carrying Case
  • AC battery charger
  • 2x antennas
  • Item Note: Missing AV Cable; Mini to Mini HDMI Cable with Adapter; Manual; 1800mAh Li-po Battery with LED Indicator; Battery Discharge Adapter; 3m AV Cable; HDMI Cable with Micro and Mini Adapters; DC DIY Cable
