Used Feelworld 4K280-9HSD-CO 28" 4K UHD Quad View Carry-On Broadcast LED Monitor with Built-In Speakers, 3840x2160

SKU: US1808246

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Feelworld 4K280-9HSD-CO Specifications

Display

Display

Jump to...
  • Panel Type

    Unspecified LCD

  • Display Size

    28.0"

  • Screen Resolution

    3840 x 2160

  • Aspect Ratio

    16:9

  • Viewing Angle

    Horizontal: 170 deg.
    Vertical: 160 deg.

  • Backlight

    LED

  • Touchscreen

    No

  • Maximum Brightness

    300 cd/m2

  • Contrast Ratio

    1000:1

  • Dot Pitch

    0.16 x 0.16mm

Input/Output

Jump to...
  • Video

    1x HDMI Type A (HDMI 2.0) Input
    3x HDMI Type A (HDMI 1.4) Input
    1x BNC (3G-SDI) Input
    1x DVI-I Input
    1x DE-15/DB-15 (VGA) Input
    1x BNC (3G-SDI) Output

  • Embedded Audio

    HDMI
    SDI

  • Audio

    1x 2RCA Input
    1x 3.5mm Headphone Output

  • Built-In Speaker

    2

  • Power

    1x 4-Pin XLR Input

  • Other I/O

    1x Tally (DE-9/DB-9)

  • Card Slot

    No

Format Support

Jump to...
  • Video Format

    HDMI:
    UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    1080PsF: 24/23.98
    720p: 60/59.94/50/30/29.97/25/24/23.98
    576p
    480p
    576i
    480i

    SDI:
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    1080PsF: 24/23.98
    720p: 60/59.94/50/30/29.97/25/24/23.98
    576i
    480i

  • DC Input Power

    12 to 24 VDC

  • Battery Type

    1x V-Mount

  • Power Consumption

    45W (Maximum)

Environmental

Jump to...
  • Operating Temperature

    14 to 122 deg. F (-10 to 50 deg. C)

  • Storage Temperature

    -4 to 140 deg. F (-20 to 60 deg. C)

General

Jump to...
  • Special Functions

    Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
    Peaking Focus Assist
    False Color
    Overscan
    Image Flip (0 deg. , 90 deg. , 180 deg. , 270 deg. )
    Check Field (Red, Green, Blue, Mono)
    Image Freeze
    Zoom
    pixel to Pixel
    Center Marker
    Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
    Line Color (Red, Green, Blue, White)

  • Dimensions (WxHxD)

    28.74 x 16.14 x 1.54" (73 x 41 x 3.9cm)
    30.71 x 18.5 x 9.84" (78 x 47 x 25cm), Including Case

  • Weight

    47.84 lbs (21.7kg), Including Case

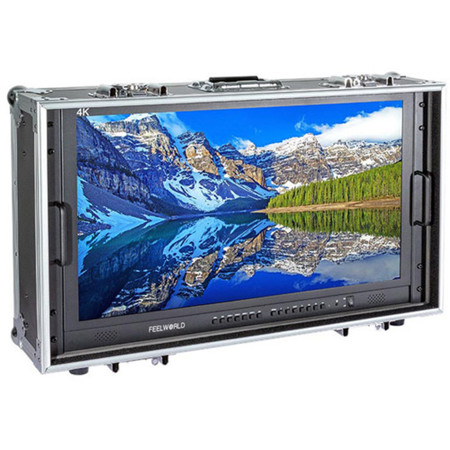

About Feelworld 4K280-9HSD-CO 28" 4K UHD Quad View Carry-On Broadcast LED Monitor

An exceptional addition to any professional video production setup, the 4K280-9HSD-CO 28" 4K UHD Quad View Carry-On Broadcast LED Monitor delivers superior image quality with its high-resolution display of 3840x2160 pixels. This high-quality monitor is designed for seamless integration into TV news production, broadcasting houses, and TV broadcasting trucks, offering high stability, reliability, and excellent electromagnetic compatibility for smooth system operation.

Encased in a full metal body, this stylish and durable monitor ensures robustness and longevity while effectively addressing heat dissipation issues. The metal casing also enhances the monitor's anti-interference capability, contributing to its overall stability and reliability.

This versatile monitor boasts a Quad Split LCD Display, making it a cost-effective solution for professional applications requiring ultra-high resolution content. With four HDMI inputs, it offers a variety of display solutions to meet your specific needs.

The 4K280-9HSD-CO monitor features a high-efficiency OSD operation design, allowing for quick and direct signal switching. The F1-F4 user-definable buttons can be customized as shortcut functions, such as peaking, check field, display rotate, center marker, safe marker, and more, providing users with precise monitoring capabilities during shooting and playback.

Designed with portability in mind, this monitor comes in a portable aviation aluminum case, specifically designed for field production. Its unique design caters to the needs of film crews who value time and cost efficiency. With no complex setup processes, this monitor can be ready for use quickly, making it ideal for productions with frequent scene changes.

The 4K280-9HSD-CO monitor also features a collapsible sunshade design for easier viewing in bright environments, making it a truly versatile tool for any professional video application. With built-in speakers, it eliminates the need for external audio devices, offering an all-in-one solution for your broadcasting needs.

Feelworld 4K280-9HSD-CO 28" 4K UHD Quad View Carry-On Broadcast LED Monitor Features

  • Wide view angle, 4K resolution (3840 x 2160), bright, colorful display
  • HDMIX4, 3G-SDI, DVI, VGA, Audio(L/R) inputs and 3G-SDI loop-through output
  • Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
  • Built-in LED tally indicators (Red, Green, Yellow)

What's in the box:

  • Feelworld 4K280-9HSD-CO 28 " 4K UHD Quad View Carry-On Broadcast LED Monitor
  • Mini HDMI Cable
  • V Battery Plate
  • 5A Power Adapter
  • Tally Kit
  • Suitcase
  • Sunshade
  • Operation Manual
  • Original Box Damaged
