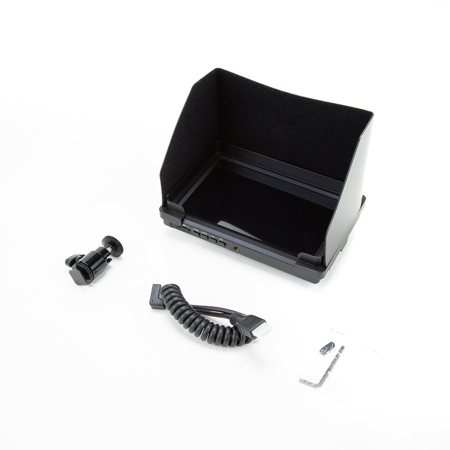

Used Feelworld F7 7" IPS Full HD 4K HDMI Input/ Output On-Camera Monitor, 1920x1200

Full HD 1920x1200
With Full HD 1920x1200 high resolution Precise Color, an impressive 323 PPI (Pixels Per Inch), the pixel density of the F7 packs an impressive 323 PPI (Pixels Per Inch) blending individual pixels to the point that the naked eye can't define individual pixels. Sharper images, brings you the perfect visual experience.

• High Resolution: Full HD 1920x1200
• High Contrast: 1200:1
• Support 4K HDMI UHD 3840x2160p (30/29.97/25/24/23.98) Input/ Output
• High Brightness: 450cd/m2
• 160deg/160deg wide viewing angles IPS Panel
• Ultra thin design 17mm thickness
• Histogram
• Peaking Focus Assist (Red,Yellow,Blue,White four color optional highlight over parts of the image in focus)
• False Colors
• Zebra Exposure
• Nine Grid
• Embedded Audio Meter
• Camera Mode
• Scan Mode (Over, Under)
• Zoom (Auto,4x,9x,16x)
• Anamorphic Mode (1.3x,2.0x,2.0x mag)
• Pixel to Pixel
• Center Marker
• Safe Area (80%,85%,90%,93%,96%)
• Marker Type (16:9,4:3,2.35:1,1.85:1)
• Marker Color (Red,Green,Blue,White,Black,Cyan,Purple,Yellow)
• Check Field (Gray/Red/Green/Blue)
• Image Flip (H, V, H/V)
• Image Freeze
• Color Temperature Adjustment
• 7" 1920x1200 IPS LCD Monitor

IPS Wider View Angle 160deg

Enjoy Consistent Images from Any Perspective
• High Quality: no brightened dot, no streaking
• 160deg. Wider View Angle: enjoy consistent images from any perspective
• More Precise Color Restoration: wide color gamut LCD panel ensure the monitor more precise color restoration exquisite picture quality more rich color levels

Ultra-thin Lightweight Design
Specially designed to merge portability and functionality, 22.95mm thickness 280g the F7 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.

Multiple Installations

Standard Two 1/4"-20 Thread Socket
FEELWORLD F7 is equipped with two standard 1/4 hole (top and bottom), easy to install DSLR Rig, Camcorder Kit, Handheld Stabilizer, Video Camera Crane, combined with image flip function, convenient for field shooting.

Standard Hot Shoe Mount 360deg. Rotation
Hot Shoe Mount can be connected with the DSLR, Slide and other shooting components to facilitate the shooting and monitoring of different scenes, can also be connect to tripod.

New Generation Collapsible Sunshade
For easier viewing in bright environments. F7 offers an amazingly clear, bright image indoors or on-location with richer color saturation and contrast.

Flexible Battery System
The F7 has a flexible battery system that supports F970 battery plate (standard), D28S/D54, E6 and U60 battery plate (optional),and also can powered by power adapter (optional).

Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness. The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left: Dark, Right: Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.

Embedded Audio Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. The audio meter is green and will turn yellow when exceeds -20dB and turn red when exceeds -9dB.

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the put line color between red, yellow, blue and white according to different tone of the subject. Peaking focus assist of FW760 has High-low level to adjust and also available during video zoom-in.

False Color
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

Exposure (Zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas.0-100IRE adjustable.

Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

Camera Mode Function
It will be full screen under camera mode.

Scan Mode
Auto, Over scan, Full screen.

Zoom In (4X, 9X, 16X)
Image magnification is HD signal in any part, an amplification for high quality close-up.

Anamorphic Mode
Built-in selection of no squeeze, 1.3x or 2.0x allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera. A 2.0x mag mode, magnifies the center of your image so you can check the focus of your scaled image.

Image Flip
The Horizontal, Vertical and Hor&Ver of the image around flip.

Nine Grid
Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, White, Black, Cyan, Purple, Yellow according to different tone of the subject.

Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling. This feature is essential for capturing optimum detail.

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%). You can switch the Mark color between Red, Green, Blue, White, Black, Cyan, Purple, Yellow according to different tone of the subject.

Marker Types
It has 8 colors for option (Red, Green, Blue, White, Black, Cyan, Purple, Yellow).
