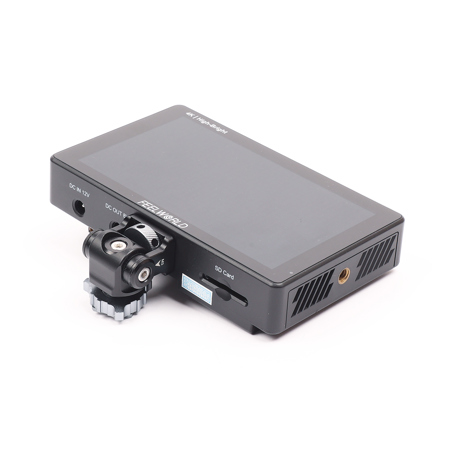

Used Feelworld LUT5E 5.5" Full HD High-Bright Touchscreen On-Camera LCD Monitor, Supports 4K HDMI

SKU: US1972762 MFR: LUT5E
$169.00
New: $219.99
Used Savings: $50.99 (23%)
Earn VIP Reward Points

What`s in the box:

  • Feelworld LUT5E 5.5" Full HD High-Bright Touchscreen On-Camera LCD Monitor
  • Mini Hot Shoe Mount
See more

Key Features

  • Enhance your on-camera setup with this Feelworld 5.5" touchscreen LCD monitor.
  • Enjoy a bright, clear view with the 1600 nits high-brightness on this field monitor.
  • Supports 4K HDMI input/output, perfect for professional video production workflows.
  • Utilize custom LUTs for precise color grading on your camera video monitor.
  • The IPS panel provides wide 160° viewing angles for accurate image representation.
  • Lightweight design at only 9.52 oz, ideal for gimbals and camera rigs.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Feelworld LUT5E Specifications

Display

Display

Jump to...
  • Panel Type

    IPS-Type LCD

  • Display Size

    5.5" (14cm)

  • Native Resolution

    1920 x 1080

  • Aspect Ratio

    16:9

  • Viewing Angle

    Horizontal: 160 Degree
    Vertical: 160 Degree

  • Touchscreen

    Yes

  • Maximum Brightness

    1600 nits / cd/sq. m

  • Contrast Ratio

    1000:1

  • Color Support

    16.7 Million Colors (8-Bit)

  • HDR Support

    Yes, Hybrid Log Gamma

  • Pixels Per Inch

    368 ppi

  • LUT Support

    Yes

  • Image Controls

    Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel-to-Pixel Zoom, R/G/B/Chroma Only, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

Inputs / Outputs

Jump to...
  • Video I/O

    1x HDMI Input
    1x HDMI Loop Output

  • Embedded Audio

    HDMI

  • Audio I/O

    1x 1/8" (3.5mm) Headphone Output

  • Built-In Speaker

    No

  • Power I/O

    1x Barrel 5.5 mm (1.5 A / 12 VDC) Input
    1x Barrel 5.5 mm (8 VDC) Output

  • Media/Memory Card Slot

    Single Slot: SD/SDHC

  • Wi-Fi

    No

  • Bluetooth

    No

  • Mobile App Compatible

    No

Format Support

Jump to...
  • Video Format

    HDMI (8-Bit)
    DCI 4K: 24
    UHD 4K: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50/30/29.97/25/24/23.98
    480i
    576i
    480p
    576p

  • Input Power

    12 VDC at 1.5 A

  • Battery Type

    1x L-Series

  • Power Consumption

    9 W (Maximum)

Mounting

Jump to...
  • Mounting

    2x 1/4"-20 Female

Battery

Jump to...
  • Battery Info

    Optional, Not Included

  • Battery Material

    Lithium ion

  • Battery Type

    L-Series

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions

    5.6 x 3.4 x 1.1" (142 x 86 x 28mm)

  • Weight

    9.52 oz (270g)

17 Accessories for Feelworld LUT5E 5.5" Full HD High-Bright Touchscreen On-Camera LCD Monitor, Supports 4K HDMI

  • All Accessories (17)
  • Ball Heads (3)
  • Batteries & Power Supply (10)
  • Brackets & Mounts (2)
  • Cables & Adapters (2)

About Feelworld LUT5E 5.5" Full HD High-Bright Touchscreen On-Camera LCD Monitor, Supports 4K HDMI

Because the LUT5E 5.5" Full HD High-Bright Touchscreen On-Camera LCD Monitor is designed to enhance your filming experience, it combines compact portability with advanced features like 4K HDMI support and high brightness. This monitor is ideal for photographers, first assistant camera operators, and content creators looking to elevate their craft.

The Full HD IPS panel delivers exceptional clarity and detail with a 16.7 million (8-bit) color gamut, ensuring accurate color reproduction. With a remarkable brightness of 1600 nits, the LUT5E is perfectly suited for outdoor shooting, eliminating the need for a sun-hood. Its built-in ambient light sensor automatically adjusts screen brightness to match your environment, whether you're filming in a dim studio or under bright sunlight.

The intuitive touchscreen interface allows for seamless control with simple tap and swipe gestures, eliminating the need for physical buttons. Key features such as Peaking Focus, which highlights in-focus areas, and Check Field, for quick hue and saturation adjustments, ensure you capture every crucial shot with precision.

The monitor also includes advanced exposure tools like Over Exposure and False Color, which help identify areas with excessive light and provide alternative color representations for better image analysis. Anamorphic mode allows for the use of anamorphic lenses, displaying unsqueezed images even if your camera lacks this feature.

For those who require custom color grading, the LUT5E supports the upload of up to 50 custom 3D LUTs via an SD card, allowing for quick color tone adjustments. It also features built-in HDR capabilities with HLG 2020, HLG 709, and HLG P3 options, offering stunning dynamic range and detail.

Accurate waveform monitoring is another standout feature, providing options like RGB Parade, YUV Parade, and vectorscope, among others. This ensures broadcast-level accuracy without the need for additional expensive equipment. The 4K HDMI input and output support ensures seamless signal transmission without quality loss.

The innovative F970 external install and power kit simplifies your setup by allowing the attachment of additional equipment like wireless transmitters or LED lights, all powered by a Sony F970 battery. The monitor also supports DC power input and output, extending camera runtime with a dummy battery power cable.

With compatibility for Sony NP-F series batteries, multi-language support, and multiple mounting points, the LUT5E adapts to various shooting needs. The included mini hot shoe mount adapter facilitates quick attachment to cameras, LED lights, and other accessories.

Additional features like Video Analysis Assistant Pattern Waveform, Vectorscope, Brightness Histogram, and RGB Histogram provide comprehensive monitoring tools. Audio Meter Monitoring ensures accurate audio levels, while Image Flip, Nine Grid, Pixel to Pixel, Center Marker, Safety Marker, and Ratio Marker features aid in composition and framing.

The LUT5E 5.5" monitor is a versatile and powerful tool for filmmakers and photographers, offering a suite of features that enhance both the technical and creative aspects of video production.

Feelworld LUT5E 5.5" Full HD High-Bright Touchscreen On-Camera LCD Monitor, Supports 4K HDMI Features

  • 5.5" 1920x1080 full HD IPS screen
  • Touch screen menu operation, improve shooting efficiency
  • High-bright 1600nit, visible in the sun
  • Light sensor auto dimming
  • Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 50)
  • Supports HDR monitoring, what you see is what you get
  • Sony F970 external install and power kit design can be used to install and supply power to external equipment, easy to install and disassemble, simplify your photography equipment
  • With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
  • Stereo Earphone output
  • DC 8V power out to power your DSLR camera or mirrorless camera
