Feelworld P150-3HSD Specifications

  • Screen Size

    15"

  • Resolution

    1024 x 768 pixels

  • Pixel Pitch (HxV)

    0.297 x 0.297mm

  • Aspect Ratio

    4:3

  • Brightness

    350cd/m2

  • Contrast Ratio

    800:1

  • Backlight

    LED

  • Viewing Angle

    80 deg. /80 deg. (L/R) 65 deg. /80 deg. (U/D)

  • Input/Output

    Video:
    1x BNC (3G-SDI) Output
    1x 3BNC (Component) Output
    1x BNC (Composite) Output
    1x HDMI Type A Output
    1x BNC (3G-SDI) Input
    1x HDMI Type A Input
    1x 3BNC (Component) Input
    1x BNC (Composite) Input

  • Audio Out

    Stereo Headphone, Speaker

  • SDI Support Format

    480i/576i
    720p(60/59.94/50/30/29/25/24/23.98)
    1080i(60/59.94/50)
    1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

  • HDMI Support Format

    480i/576i/480p/576p
    1080i (60/59.94/50)
    720p (60/59.94/50/30/29/25/24/23.98)
    1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)

  • Input Voltage

    DC 9-24V

  • Power Consumption

    <=15W

  • Working Temperature

    -10 to 50 deg. C (14 to 122 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Dimensions (LxHxD)

    Without Bracket: 331.1 x 282.6 x 33.8mm (13.04 x 11.13 x 1.33")

  • Weight

    With Bracket: 2.60kg (5.73 lbs)
    Without Bracket: 2.07kg (4.56 lbs)

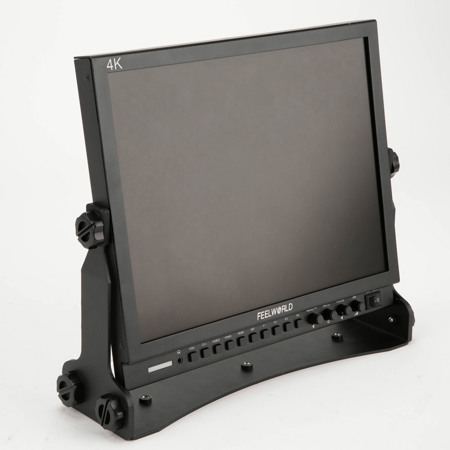

About Feelworld P150-3HSD 15" HD Multi-Format Broadcast LED Monitor - SKU#1704287

You can elevate your broadcasting experience with the P150-3HSD 15" HD Multi-Format Broadcast LED Monitor. Designed for professional use in TV news production, broadcasting houses, and broadcasting trucks, this high-quality monitor is renowned for its high stability, reliability, and excellent electromagnetic compatibility, ensuring seamless operation with other professional equipment.

Boasting a high-resolution HD panel of 1024x768 pixels, this monitor delivers detailed images and text, making it an ideal choice for field production. The 4:3 ratio, 800:1 contrast, and 350cd/m2 brightness further enhance the viewing experience, providing clear and vibrant visuals.

The P150-3HSD monitor is equipped with a built-in speaker, providing a convenient audio solution without the need for additional equipment. The monitor's stylish full aluminum case not only adds to its durability but also effectively dissipates heat, improving its anti-interference capability.

Innovation is at the heart of this monitor's design. It features four "F keys" for peaking focus assist, check field, camera mode function, pixel to pixel, center marker, safe marker, and image flip, all reserved for professional users. The double functions and knob type coding switch are exclusive to this model, offering a more convenient and rapid operating experience.

The monitor also includes a 3-color Tally Light on both the front and rear side, controlled via DB-9 ports on the rear panel. The extended screen hood ensures an ideal visual effect in almost all environments. The Peaking Filter aids in obtaining the sharpest possible picture by highlighting sharp edges on the screen. The Check Field mode assists in adjusting camera color settings, while the Camera Mode Function provides a full-screen view. The Pixel to Pixel feature allows filmmakers to check the image from the 1:1 signal source without scaling, capturing optimum detail. The Center Marker & Safe Marker and Image Flip features further enhance the functionality of this efficient and reliable monitor.

Feelworld P150-3HSD 15" HD Multi-Format Broadcast LED Monitor - SKU#1704287 Features

  • Wide view angle, HD 1024x768, bright, colorful display
  • HDMI, 3G-SDI, Ypbpr, Video, Audio (L/R) inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs
  • Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
  • Check Field (Red, Green, Blue, Mono)
  • Camera Mode
  • Pixel to Pixel
  • Center Marker
  • Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
  • Image Flip (Horizontal, Vertical, Hor&Ver)
  • Image Freeze
  • Zoom All
  • U/D & L/R Zoom
  • Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
  • Built-in LED tally indicators (Red, Green, Yellow)
  • Power using included 12-volt supply or use standard 4-pin XLR

What's in the box:

  • Feelworld P150-3HSD 15 " HD Broadcast LED Monitor
  • V-Mount Battery Plate
  • 1.5A Power Adapter
  • Power Cable
  • U Bracket
  • Item Note: MissingMissing Mini HDMI Cable; Tally Kit; Sunshade
