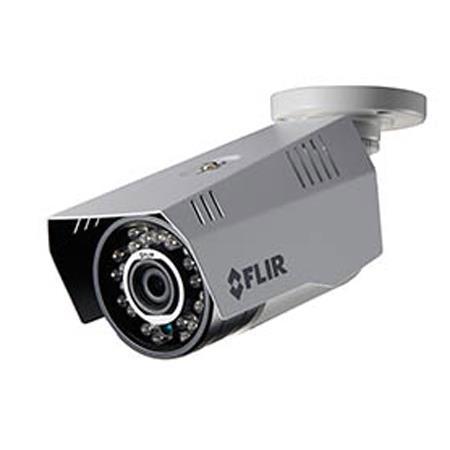

FLIR 2.1 MP HD Fixed WDR Bullet MPX Camera with 3.6mm F2.0 Lens - SKU#929656

Picture does not represent the actual item

See all FLIR items

Used FLIR 2.1 MP HD Fixed WDR Bullet MPX Camera with 3.6mm F2.0 Lens

SKU: US929656
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Vivotek C-Series FD9380-HV-V2 5MP AI Outdoor Network Dome Camera with 2.8mm Lens, Night Vision, White
undefined undefined: Picture 1 regular
Vivotek C-Series FE9380-HV 5MP Outdoor Fisheye Panoramic Camera with Night Vision, White
undefined undefined: Picture 1 regular
Ubiquiti Networks UniFi Protect G5 4MP 2K Network IP Outdoor 2x PTZ Dome Camera with Night Vision, White
undefined undefined: Picture 1 regular
Vivotek C-Series FD9380-HTV-V2 5MP AI Outdoor Network Dome Camera with 2.7-13.5mm Lens, Night Vision, White
undefined undefined: Picture 1 regular
Vivotek V-Series FD9189-H-V3 5MP AI Indoor Network Dome Camera with Night Vision, White
undefined undefined: Picture 1 regular
Ubiquiti Networks UniFi G4 Instant 2K Wi-Fi Camera, White
undefined undefined: Picture 1 regular
Vivotek Vortex Premium Series FD837-HTV 5MP AI Outdoor Network Dome Camera with Night Vision, 1-Year VSaaS License, White
undefined undefined: Picture 1 regular
Used Bosch Security Systems Bosch NDM-7702-A FLEXIDOME multi 7000i 12MP Outdoor 4-Sensor 360�� Network Dome Camera with 2x Zoom Lenses
undefined undefined: Picture 1 regular
Alfatron ALF-CMW102 USB Fixed-Angle 1080p HD Camera with Wireless Speakerphones
undefined undefined: Picture 1 regular
Vivotek V-Series FE9391-EHV-V2 12MP AI Outdoor Network Fisheye Dome Camera with Night Vision, White
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

FLIR C233BD Specifications

  • Imaging Device

    1/2.8" Exmor

  • Effective Pixels

    1984 (H) x 1105 (V)

  • Image Type

    CMOS

  • Image Readout

    Progressive Scan

  • Day/Night

    Y

  • Mechanical IR Cut Filter

    Y

  • Min. Illumination

    0.1 Lux @ F1.2 (Color)

  • S/N Ratio

    50dB (AGC OFF)

  • Horizontal Field of View

    88 Degree (Digital) / 82 Degree (Analog)

  • IR Illumination Range

    70ft / 21m

  • IR Wavelength

    840-850nm

  • Video Output

    BNC (1080p MPX, Digital), BNC (960H, Analog)

  • Electronic Shutter Range

    1/30 (1/25) - 1/60,000

  • Lens Type

    Board Type

  • Focal Length

    3.6mm

  • F-Number

    2.0

  • Iris Control Type / Adjustment

    Electronic / Auto or Manual

  • Video Frame rates

    15/25/30 FPS (15FPS with WDR on)

  • Backlight Compensation

    BLC / HLC

  • Wide Dynamic Range

    True WDR

  • White Balance

    Auto / ATW / Preset / Manual

  • Gain Control

    AGC - 0-20 Selectable

  • Noise Reduction

    2D/3D - Low/Mid/High Selectable

  • Window Blanking

    Y - 15 Zone Selectable

  • Menu Languages

    English, German, French, Spanish, Russian, Polish, Italian, Portuguese

  • Construction

    Aluminum Alloy

  • Product Dimensions (W x H x D)

    2.8" x 2.8" x 8.0" / 72 x 72 x 204mm

  • Product Weight

    0.9lbs / 0.4kg

  • Power Input

    12V DC

  • Power Consumption

    5W

  • Current Consumption

    380mA

  • Operating Temperature

    -22 Degree F - 122 Degree F / -30 Degree C - 60 Degree C

  • Operating Humidity

    <= 85% RH

  • Ingress Protection

    IP66

  • Certifications

    FCC, CE, ROHS

About FLIR 2.1 MP HD Fixed WDR Bullet MPX Camera with 3.6mm F2.0 Lens - SKU#929656

The FLIR 2.1 MP HD Fixed WDR Bullet MPX Camera uses the latest HD-CVI technology and True WDR to deliver outstanding 1080p picture quality over coax cabling in any lighting condition. Ideal for retrofit applications, C233BD is compatible with FLIR MPX DVRs offering an upgrade to HD resolution without the hassle of running new cables. Dual video output offers simultaneous HD and 960H video streams.

FLIR 2.1 MP HD Fixed WDR Bullet MPX Camera with 3.6mm F2.0 Lens - SKU#929656 Features

  • HD Picture Quality
  • Outstanding image detail, both day and night
  • 2.1MP HD, 1080p @ 25/30 FPS, 1/2.8" CMOS, 3.6mm lens, 70ft / 21m IR
  • Easy Installation
  • Upgrade to HD without the expense of re-cabling
  • Dual BNC output - MPX 1080p / 960 Analog
  • Cable pass-through bracket design
  • Superior Performance
  • Virtually no latency, extended cable runs up to 2296ft / 700m
  • IP66 weatherproof rated housings
  • -22 Degree F (-30 Degree C) Cold Climate Capable

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Fixed WDR Bullet MPX Camera
  • Power Pigtail Adapter
  • Original Box
