Focusrite Scarlett 18i20 3rd Gen Specifications

General

General

Jump to...
  • Connectivity

    USB Type-C

  • Protocol

    USB 2.0

  • Form Factor

    Rack Mount (1U)

  • Simultaneous I/O

    18 x 20

  • A/D Resolution

    24-bit/192 kHz

  • Number of Preamps

    8

  • Number of Pads

    8

  • Phantom Power

    Yes

  • Instrument Inputs

    2

  • Line Inputs

    8

  • Analogue Outputs

    10

  • Headphone Outputs

    2

  • Main/Alt Speaker Switching

    Yes

  • Talkback

    Yes

  • Digital Inputs

    S/PDIF & 2 x ADAT

  • Digital Outputs

    S/PDIF & 2 x ADAT

  • Loopback

    Yes

  • MIDI I/O

    Yes

  • Bus Powered

    No

  • Included PSU

    Yes

Microphone Inputs

Jump to...
  • Dynamic Range

    111dB

  • THD+N

    >0.0012%

  • Maximum Input Level

    9dBu at Min Gain

  • Gain Range

    56dB

Variable Line Inputs

Jump to...
  • Dynamic Range

    110.5dB

  • Gain Range

    56dB

Fixed Line Inputs

Jump to...
  • Dynamic Range

    -111dB

  • THD+N

    >0.0015%

Instrument Inputs

Jump to...
  • Dynamic Range

    110dB

  • Gain Range

    56dB

Line and monitor outputs

Jump to...
  • Dynamic Range

    108dB

  • Maximum Output Level (0 dBFS)

    15.5dBu

  • THD+N

    >0.001%

Physical

Jump to...
  • Dimensions (H x W x D)

    1.83 x 19 x 10.23" (4.64 x 48.26 x 25.9cm)

  • Weight

    With Accessory: 7.85 lbs (3.56kg)
    Without Accessory: 7.04 lbs (3.19kg)

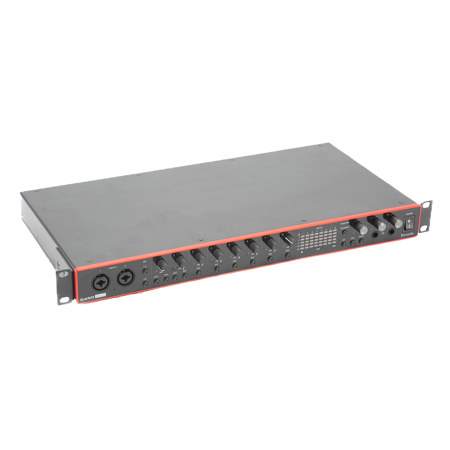

About Focusrite Scarlett 18i20 3rd Gen USB Interface - SKU#1868277

FEATURED REVIEWS

Great Interface!

By Theodore D.

Beautiful, clear pre?s, coupled with very useable control software at a reasonable price make this my interface of choice. Installed and connected to my DAW with no issues. Looking forward to getting an Octopre in the near future to have enough inputs to track full bands and/or drums.

What sets the Scarlett 18i20 3rd Gen USB Interface apart is its exceptional blend of professional-grade features and high-quality sound. Encased in a robust 1U rack-mountable enclosure, this third-generation interface is the epitome of reliability and durability, designed to elevate any studio setup. With a total of 18 inputs and 20 outputs, including eight of Focusrite's finest Scarlett mic preamps, the 18i20 ensures that your recordings are captured with the utmost clarity and detail.

The advanced A-D and D-A conversion technology of the Scarlett 18i20 guarantees pristine audio quality, supporting 24-bit/192kHz resolution to help you refine your mix with precision. The signature Air setting, inspired by Focusrite's original ISA mic preamp, breathes life into your vocal and acoustic recordings, offering a brighter, more open sound. Each mic preamp also features a pad to handle high-level signals without the risk of clipping.

For musicians, the two high-headroom instrument inputs on the front panel are engineered to record guitars and basses with zero clipping or unwanted distortion, preserving the natural tone of your instrument. The onboard speaker-switching capability allows for seamless transitions between main and alternative monitors, providing different perspectives on your mix. Additionally, the built-in talkback microphone facilitates clear communication with artists during recording sessions, ensuring that every take is captured perfectly.

The Scarlett 18i20 is not just about high-quality hardware; it also includes a comprehensive software suite to kickstart your recording journey. The included Ableton Live Lite DAW offers an intuitive platform for music creation, while the Splice Sounds membership grants access to a vast library of royalty-free samples. For those seeking professional-grade production tools, the three-month Avid Pro Tools Artist subscription with the Complete Plugin Bundle is invaluable.

Moreover, the Focusrite Plug-in Collective membership delivers a rotating selection of free software downloads and exclusive discounts. The Hitmaker Expansion, packed with industry-standard plugins like Antares Auto-Tune & Access, Relab's LX480 Essentials, and Softube's Marshall Silver Jubilee 2555, empowers you to produce studio-quality vocals, guitars, keys, and drums. The bundle also includes the iconic Focusrite Red Plug-in Suite, Brainworx bx_console Focusrite SC, and selections from XLN Audio's Addictive Keys and Addictive Drums 2.

Whether you're podcasting, live streaming, or sampling, the Scarlett 18i20's virtual loopback inputs make these tasks effortless. Built to withstand the rigors of the road, this interface connects seamlessly to your Mac or PC via USB cable, ensuring that wherever your music takes you, the Scarlett 18i20 is ready to perform.

Focusrite Scarlett 18i20 3rd Gen USB Interface - SKU#1868277 Features

  • Eight of the best performing mic preamps the Scarlett range has ever seen, now with switchable Air mode to give your recordings a brighter and more open sound
  • High-performance converters enable you to record and mix at up to 24-bit/192kHz
  • Two high-headroom instrument inputs to plug in your guitar or bass
  • Four monitor outputs with anti-thump technology and speaker switching, and onboard talkback functionality with built-in, front panel talkback mic
  • Eight balanced line inputs for connecting synthesisers, drum machine and other line-level sources

What's in the box:

  • Focusrite Scarlett 18i20 3rd Gen USB Interface
  • Item Note: Missing USB Type-C to USB Type-A Cable; IEC Cable
