Freefly ALTA 6 Specifications

  • Powerplant: Number of Motors

    6

  • Powerplant: Motor Type

    Direct Drive 3-Phase PMAC Outrunner

  • Powerplant: Motor Model

    F45

  • Powerplant: Motor Max Continuous Power

    350W

  • Powerplant:Motor Max Instantaneous Power

    950W

  • Powerplant: Electronic Speed Controller

    Freefly Silent-Drive Sine Wave ESC

  • Propellers: Material

    Carbon fiber with balsa core

  • Propellers: Orientation

    (3) CW and (3) CCW Props

  • Propellers: Type

    18 x 6 Folding

  • Nominal battery voltage

    6S / 22.2V

  • Maximum Battery Quantity

    2 Battery Packs (Parallel)

  • Battery Connectors

    2x EC5 (Parallel)

  • Specific Loading: Typical Specific Power

    145W/kg

  • Specific Loadings: Thrust Ratio

    2.0 : 1 (At Max Takeoff Weight)

  • Orientation Lights

    RGB LEDs

  • Orientation Light Locations

    Outboard on Boom Ends

  • Orientation Light Color

    User Definable

  • Lighting and Indication: Status Light

    Rear-Facing Red/White LED

  • Accessory Lighting Port

    12 VDC

  • Accessory Lighting Port Location

    Outboard on Boom Ends

  • Vibration Isolation System

    Silicone O-Rings

  • Isolation system options

    Soft / Light Payloads: Red O-Rings
    Medium / Mid Payloads: Teal O-Rings
    Stiff / Heavy Payloads: Black O-Rings

  • Mounting Locations

    Bottom and Top Mount

  • Mounting System

    Freefly Toad In The Hole Quick Release

  • Model Name

    Freefly Synapse Flight Controller

  • Flight Modes

    Manual, Height Hold, Climb Rate Control (Vario), Position Hold, Ground Speed Control, Return-To-Home, Auto-land

  • Supported Inputs

    Spektrum, S.Bus, PPM, FPV SD Video

  • Outputs

    PWM, I2C, CAN, FPV SD Video with OSD

  • Supported Radios

    Futaba S.Bus & S.Bus 2
    DSMX, DSM2 (Spektrum/JR)
    PPM, PPM Invert, PPM Graupner

  • Supported Radio Telemetry Systems

    Futaba with built-in voltage sense port

  • Supported First-Person View Systems

    Skyzone, BOSCAM, Immersion RC, Fatshark

  • First-Person View OSD Telemetry

    User Configurable

  • Installed Transceivers

    Wi-Fi

  • Data Logging Rate

    25Hz

  • Dimensions

    (L x W x H(to base of TITH)):
    39.37 x 45.08 x 8.66" / 1000 x 1145 x 220mm (Unfolded)
    20.94 x 20.28 x 8.66" / 532 x 515 x 220mm (Folded)
    Maximum Battery Size: 9.45 x 7.09 x 3.15" / 240 x 180 x 80mm

  • Weight

    Maximum Gross for Takeoff: 29.98lbs / 13.6kg
    Maximum Useful Load: 20.94lbs / 9.5kg
    Maximum Payload: 14.99lbs / 6.8kg
    Typical Standard Empty Weight: 9.04lbs / 4.1kg

Related Articles & Videos

Drones 101: The Buyer’s Guide

Drones 101: The Buyer’s Guide

So many choices, which drone is right for you? Our buying guide will help you figure out the best drone for your budget and needs. Read on to find out more.
Read more

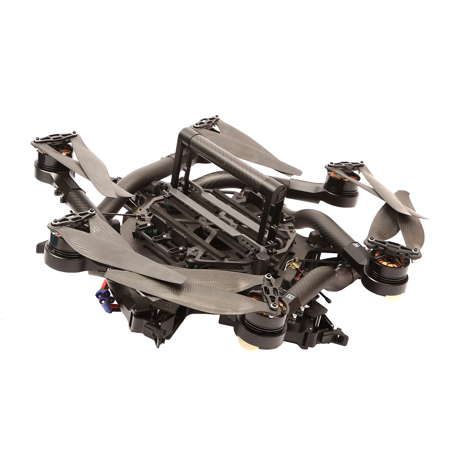

About Freefly ALTA 6 Drone - Transmitter Not Included SKU#1747196

Freefly has engaged the community of aerial cinematographers and logged thousands of flight hours to develop a completely new way to fly. From the Synapse Flight Controller to seamless MoVI integration, ALTA gives filmmakers the power to tell their stories from the sky.

The Freefly ALTA unpacks, ready to shoot, in under five minutes. It is easy to fly, powerful, rigid, adaptable, reliable, and optimized for up to 15-pound payloads. Confidently fly RED, ARRI and other professional cameras, guided by our state-of-the-art Synapse Flight Controller. Capture aerials like never before with the option to mount the MoVI on top.

The ALTA is a Ready-to-Fly system that includes:
• ALTA Multi-rotor
• Pelican Case
• Battery Cage
• Landing Gear for Top Mounting
• Freefly ALTA App available for download

The ALTA comes fully assembled and includes all the necessary tools and accessories you will need to mount a MoVI and get it flying. The standard ALTA ships with a Toad in the Hole quick release, Battery Cage Landing Gear, FPV mount plate, cables to connect your personal receivers and/or FPV system, and mechanical tools to disassemble & inspect your ALTA.

Ready To Fly
The Freefly ALTA is designed to make your life as an elite aerial cinematographer more fun. It arrives in a robust, industry standard pelican case and is ready to simply unfold and fly. Freefly designed the system from the ground up to integrate seamlessly with the Synapse Flight Controller and MoVI stabilizers.

Top Mount Camera Option
A radical design has opened up an entirely new way to film from the sky. Fly the ALTA with the MoVI mounted on top of the multi-rotor for a truly unique perspective.

Fast Setup
Folding carbon propellers and folding booms allow the A LTA to go from a Pelican case to the air in minutes. The included Toad in the Hole Quick Release further streamlines the process of getting airborne quickly with a MoVI payload.

Heavy Payloads
Efficient, powerful custom designed motors achieve a perfect balance between performance and efficiency and set the new standard for heavy lift machines. Cameras such as the RED Dragon, Sony F55 and ALEXA Mini are flown with confidence and reliability with the ALTA's 15-pound payload capacity.

Synapse - Intelligent Flight Controller
The Freefly Synapse flight control system represents a new level of control, precision and reliability for unmanned aerial systems. The system combines high quality sensors with proprietary control algorithms to allow users to execute complex flight patterns with ease. It features an integrated on screen display, high-bandwidth position control, live graphing, dual receivers and has been tested for years by the industry's best pilots.

Optimized For Movi Integration
Freefly designed the ALTA with the MoVI line of camera stabilizers in mind, with the ability to go from handheld filming to capturing aerials in just moments with our Toad in the Hole Quick Release.

Ultra Lightweight Frame
Robust and lightweight were two important concepts leading the ALTA's development. They use the strongest and lightest materials available to minimize aircraft weight, which translates to increased flight times with heavier cameras. Our obsession with optimizing for weight and rigidity also pays dividends in extracting every ounce of performance out of the Synapse and MoVI to ensure you can get the shot in the most demanding situations.

Advanced Vibration Isolation System
A refined vibration isolation system rejects high frequency disturbances from the ALTA allowing the MoVI to create the silky smooth shots it's known for.

Next-Generation Distribution Board
The internal distribution board is weather sealed and conformal coated. It features four 12v power leads for driving LEDs or other accessories, as well as integrated connections for industry standard FPV systems.

Silent Drive Technology
Using cutting edge sine wave drive motor controls with active braking, the ALTA features low noise and precise, efficient, closed loop control of the propeller.

Data Logging
High speed data logging allows user analysis of critical flight data.

User Definable LEDs
Customize your ALTA's LED color scheme to suit your piloting preferences via the ALTA App.

What's in the box:

  • Freefly ALTA 6 Drone
  • 6x Teal Isolator Cartridges
  • 6x Red Isolator Cartridges
  • 6x Black Isolator Cartridges
  • 12x Propellers
  • Inverted Landing Gear
  • Toad In The Hole Male Adapter 4x M3x8 Socket Head Screws For Toad In The Hole Male Adapter
  • Hard Transit Case
  • Item Note: Missing USB-Futaba Power Cable; Antenna Tubes; Skyzone/BOSCAM FPV Cable; ImmersionRC/Fat Shark FPV Cable; Ready Made RC FPV Cable; 2x M3x8 Flat Heads For Acessory Mount; Accessory Mount
