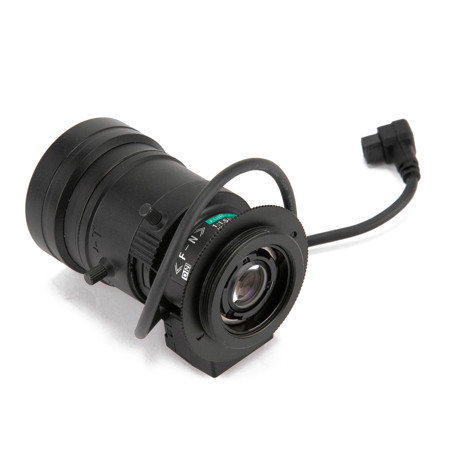

Fujinon 1/3" CS Mount 3 Mega Pixel Vari Focal Lens, 15-50mm Focal Length
Fujinon 15-50mm: Picture 1 thumbnail
Fujinon 15-50mm: Picture 2 thumbnail
Fujinon 15-50mm: Picture 3 thumbnail
See all Fujinon items
CloseoutUsed Condition: Excellent

Used Fujinon 1/3" CS Mount 3 Mega Pixel Vari Focal Lens, 15-50mm Focal Length

SKU: US1710338 MFR: YV3.3X15SA-SA2
Be the first to review this item
$25.00
Earn VIP Reward Points
See all Used options (2) from $25

Key Features

  • 1/3 Image format CS Mount
  • 15-50mm Varifocal DC Auto Iris
  • F15-30mm, 3.3x Telephoto applications
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Calculate Shipping

See Options

1
Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Fujinon 15-50mm Specifications

  • Mount

    CS

  • Focal length

    15 mm - 50 mm (3.3x)

  • Focus

    Manual

  • Iris Range

    F1.5 - T360 (Equivalent to F360)

  • Iris

    Auto (DC Type) (1)

  • Zoom

    Manual

  • Back Focal Distance (In Air)

    7.70 mm

  • Exit Pupil Position (From Image Plane)

    -36 mm

  • Object at M.O.D. 4: 3 Aspect Ratio

    1/3": Wide
    271x202mm
    Tele
    87x66mm
    1/4": Wide
    202x151mm
    Tele
    66x49mm

  • Object at M.O.D. 16: 9 Aspect Ratio

    1/3": Wide
    296x165mm
    Tele
    95x54mm
    1/4": WideTele
    72x40mm

  • Angular Field of View 4: 3 Aspect Ratio

    1/3": Wide
    18deg.08' x13deg.34'
    Tele
    5deg.35' x4deg.12'
    1/4": Wide
    13deg.34' x10deg.10'
    Tele
    4deg.12' x3deg.10'

  • Angular Field of View 16:9 Aspect Ratio

    1/3": Wide
    19deg.46' x11deg.40'
    Tele
    6deg.04' x3deg.26'
    1/4": Wide
    14deg.47' x8deg.18'
    Tele
    4deg.34' x2deg.35'

  • Focusing Range (From Front of the Lens)

    infinity - 0.8 m

  • Coil Resistance

    Drive Coil: 190 Ohm
    Damping Coil: 500 Ohm

  • Current Consumption

    23 mA (Max.) at DC 4V

  • Mass

    60g (2.11oz)

About Fujinon 1/3" CS Mount 3 Mega Pixel Vari Focal Lens, 15-50mm Focal Length

The Fujinon 1/3" Cs Mount 3 Mega Pixel Vari Focal Lens is a high grade Lens designed specifically for High definition Video surveillance and megapixel security camera system applications. The Fujinon YV3.3x15SA-SA2 Megapixel Lens supports up to 3 megapixel resolution and includes excellent f-stop rating of F1.5 making ideal for low light applications. The all glass aspheric lenses are designed to maximize performance and optical clarity and delivers an outstanding telephoto capability on 1/3 Megapixel security cameras. Furthermore the Fujinon YV3.3x15SA-SA2 1/3 15-50 mm Vari Focal DC Auto Iris Megapixel Lens has a compact and lightweight construction making it perfect for limited size applications such as use in dome cameras.

Fujinon 1/3" CS Mount 3 Mega Pixel Vari Focal Lens, 15-50mm Focal Length Features

  • 1/3 Image format CS Mount
  • 15-50mm Varifocal DC Auto Iris
  • High Image Quality monitoring with optical performance supporting 3 Megapixel resolution
  • f15-30mm, 3.3x Telephoto applications
  • Compact and Lightweight design ideal for use with dome cameras
  • Designed to maximize optical performance with high accuracy aspheric lens, low dispersion glass and high refractive-index
  • Built-in ND filter of T360, supporting high sensitivity cameras
