Fujinon HA16X6.3BERM-M6 Specifications

  • Format

    2/3" sensors

  • Focal Length

    6.3 - 101 mm

  • Zoom Ratio

    16x

  • Extender

    2x

  • Maximum Aperture

    6.3 - 63 mm: f/1.8 (T1.9)
    101 mm: f/2.9 (T3.1)

  • M.O.D. From Image Plane

    2.26' (0.69m)

  • M.O.D. from Front of Lens

    1.31' (0.4m)

  • Object Dimensions at M.O.D. (16:9)

    6.3 mm: 712 x 400 mm
    101 mm: 45 x 25 mm

  • Angular Field of View (16:9)

    6.3 mm: 74deg.33' x 46deg.19'
    101 mm: 5deg.26' x 3deg.03'

  • Filter Thread

    M107 x 1

  • Dimensions

    3.74 x 9.39" / 9.50 x 23.85cm

  • Weight

    4.36lbs / 1.98kg (Approx.)

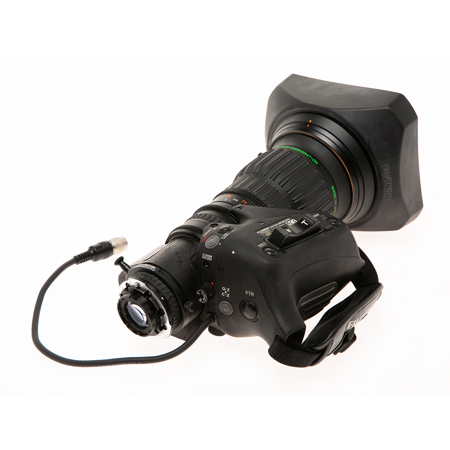

About Fujinon HA16x6.3BERM-M6 6.3-101mm f/1.8-2.9 ENG Style Zoom Lens - 2x Extender

The Fujinon HA16x6.3BERM-M6 6.3-101mm f/1.8-2.9 ENG Style Lens with Servo Zoom is a 6.3-101mm lens, designed to provide 2/3" cameras with a wide to telephone angle-of-view. The lens has a zoom ratio of 16x and a 2x extender effectively doubles the focal range. The maximum aperture is a fast f/1.8 at 6.3-63mm and stops down to f/2.9 at 101mm. A servo for zoom control is also included.

Internal focusing minimizes the effects of lens breathing, which ensures a more consistent angle-of-view when making focus adjustments. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end of the lens to check focus. Releasing the button automatically returns the lens to the previously selected focal length. Zoom Limit purposefully constrains the focal range to only desirable focal lengths. Finally, the Focused Intelligent Network Diagnosis (FIND) system aids in preventive maintenance and troubleshooting by evaluating various electronic and mechanical parameters.

Fujinon HA16x6.3BERM-M6 6.3-101mm f/1.8-2.9 ENG Style Zoom Lens - 2x Extender Features

  • 6.3-101mm wide to telephone zoom lens for 2/3" cameras
