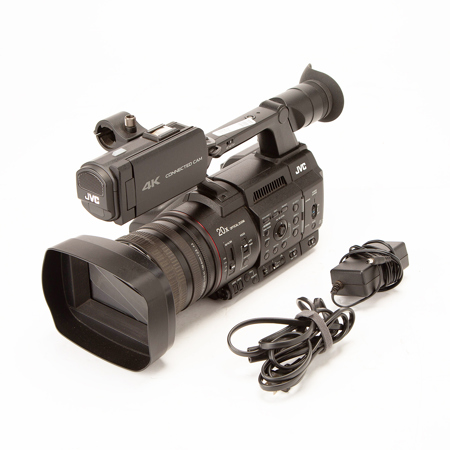

Used GY-HC500U 9.35MP 4K UHD Handheld Connected Camcorder

SKU: US1939725 MFR: GY-HC500U DISC 2
Earn VIP Reward Points

What`s in the box:

  • JVC GY-HC500U 9.35MP 4K UHD Handheld Connected Camcorder
  • AC Adapter
  • Power Cord
See more

Key Features

  • High-quality 4K UHD handheld connected camcorder with 1" CMOS image sensor
  • Advanced 20x optical zoom lens for optimal magnification and framing flexibility
  • Supports a wide variety of recording formats including ProRes, directly to SSD or SDHC/SDXC media
  • Features high-performance 1080 60p/50p live streaming with Secure Reliable Transport (SRT) QoS
  • Equipped with practical auto focus and assist functions for stable 4K shooting
  • Robust body with excellent weather resistance, ideal for professional fieldwork
See More Product Details
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

JVC GY-HC500 Specifications

Camera Front-End

Camera Front-End

Jump to...
  • Image Sensor

    1" (effective) CMOS

  • Number of Sensors

    1

  • Mega Pixels

    9.35MP

  • Sensitivity in F at 2000 Lux

    F 11

  • Shutter speed

    1/6 to 1/10000

  • White Balance modes

    FAW, AWA, 3200K, 5600K, Manual

  • Color Matrix adjustment

    Yes

  • Wide Dynamic Range Mode (WDR)

    Yes

  • HDR (High Dynamic Range)

    Yes, HLG/JLOG 1

  • LOG Mode

    Yes, J-LOG HLR

  • User selected function buttons

    Yes

Optical

Jump to...
  • Lens mount

    Internal

  • Dynamic Zoom x times

    40

  • Lens ratio from / to

    9.43mm to 188.6mm

  • Lens ratio equivalent to 35mm

    28mm to 560mm

  • Optical Image stabilization

    Yes

  • Filter Diameter

    82mm

  • Build in ND Filters

    Off, 1/4, 1/16, 1/64

Recording Formats

Jump to...
  • Media

    SDHC/SDXC memory card x 2 plus M2 SSD Slot with optional KA-MC100G Media Adapter

  • SSD recording option

    Yes

  • Media Class

    4K/70 Mbps, HD and below Class 10 4K/150Mbps UHS1-U3 (no UHS-2)

  • Recording slots

    3

  • Encoder

    ProRes, MPEG-4 AVC/H.264 (HD/SD)

  • ProRes Recording

    Yes

  • File Format MOV

    Yes

  • File Format MP4

    Yes

  • Video Codec MPEG4 AVC/H264 4K/HD

    Yes

  • Video Codec H264 (SD)

    Yes

  • Video Codec others

    4K UHD ProRes / Proxy H264

  • Resolution 3840 x 2160

    Yes, 4K UHD 60p/50p (Apple ProRes) 422HQ/422/422LT 10-bit
    4K UHD 30p/25p/24p (H.264) 4:2:2 10-bit / 4:2:0 8-bit 150Mbps/70Mbps

  • Resolution 1920 x 1080

    Yes

  • Resolution 1280 x 720

    Yes

  • Resolution 960 x 540

    Yes

  • Resolution 480 x 270

    Yes

  • SD Recording

    Yes

  • Audio Channels

    2

  • Audio Recording modes

    LPCM 2ch, 48kHz/16-bit, micro-Law 2ch (Proxy), AAC 2ch (MP4)

  • Audio Filters

    Yes

IP Section

Jump to...
  • IP Main Connection

    USB A Host, Ethernet LAN RJ45 1000Base-T

  • IP Connection supports

    Ethernet, WIFI - and LTE USB Adapters

  • IP Features Live-Streaming

    Yes

  • IP Features Remote

    Yes, via RM-LP100 or Web-Browser no apps needed

  • IP Features FTP

    Yes, Different protocols

  • IP Features Auto FTP Upload

    Yes

  • IP Features Meta-Data

    Yes, Local and Remote editing and data exchange

  • IP Features IFB (Audio-Return via IP)

    Yes, with optional Audio encoder AAC Format

  • Live-Streaming Bitrates

    1920 x 1080 (59.94p/50p) 20 - 8Mbps, (29.97p/25p) 20 - 3Mbps, 1920 x 1080 (59.94i/50i) 20 - 3Mbps, 1280 x 720 (59.94p/50p) 20 - 3Mbps, 1280 x 720 (29.97p/25p) 8 - 1.5Mbps, 640 x 360 (59.94p/50p) 3/1.5Mbps, 640 x 360 (29.97p/25p) 3 - 0.3Mbps

  • Live-Streaming Protocols

    RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, MPEG2-TS/RTP, RTSP/RTP, SRT

  • SRT Protocol JavaScript

    Yes

  • Live-Streaming Single cast

    Yes

  • Live-Streaming Multicast

    Yes

  • Live-Streaming reconnect

    Yes

  • Live-Streaming and simultaneous REC

    Yes

  • Live-Streaming Pre-sets of destinations

    4

  • FTP Protocol formats

    FTP / SFTP / FTPS

  • FTP upload during REC

    Yes

  • FTP servers presets

    4

  • Meta-Data presets of servers

    3

Input / Output Connections

Jump to...
  • Out HDSDI

    Yes, 3G HDSDI

  • Out HDSDI Format max.

    1080/60p,50p 10 Bit 4:2:2 EE

  • Out HDMI

    Yes

  • Out HDMI Format max.

    UHD

  • Out AV

    Yes, 3.5mm mini jack

  • Out Audio Headphone

    Yes, 1 times 3.5mm mini jack

  • In Audio XLR Mic/Line

    Yes, 2 CH with +48 V Mic and Line support

  • Time code In/Out

    Yes

  • Wired remote In

    Yes, serial LANC 2.5mm mini jack

  • USB Host

    Yes

  • Option Slot

    For optional KA-EN200G Streaming Encoder and KA-MC100G SSD Media Adapter

EVF and LCD

Jump to...
  • Operation Panel Type

    LCD

  • Operation Panel Resolution

    WVGA (800 x 480), 800 x 450 at 16:9

  • Operation Panel Size diagonal

    3.97" (10.08cm)

  • Electronic Viewfinder (EVF) Type

    LCOS

  • Electronic Viewfinder (EVF) Resolution

    Quad VGA (1280 x 960), 1280 x 720 at 16:9

  • Electronic Viewfinder Size diagonal

    0.4"

Power and Environment

Jump to...
  • Power AC

    Yes, DV12V(AC Adapter)

  • Power DC

    Yes, 7.2 V (Battery)

  • Power consumption

    Approx. 24W

Battery

Jump to...
  • Battery Info

    Required, included

  • Battery Material

    Lithium ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

Physical

Jump to...
  • Dimensions (W x H x D)

    With hood and viewfinder: 7.4 x 8.93 x 17.2" (188 x 227 x 437mm)

  • Weight

    With hood and battery, without wireless LAN antenna unit: 7.9 lbs (3.6kg)

23 Accessories for GY-HC500U 9.35MP 4K UHD Handheld Connected Camcorder

  • All Accessories (23)
  • SSD Drives (3)
  • Memory & Storage (7)
  • Bags & Cases (2)
  • Tripods & Monopods (1)
  • Monitor & Recorder (2)
  • Flash & Lighting (2)
  • Cables & Adapters (3)
  • Microphones & Audio (3)

About GY-HC500U 9.35MP 4K UHD Handheld Connected Camcorder

Be at the forefront of professional video production with the GY-HC500U 9.35MP 4K UHD Handheld Connected Camcorder. This high-quality, advanced camcorder offers unparalleled 4K ultra-HD recording capabilities with HDR, ensuring superior image quality for both live and recorded footage.

The GY-HC500U is equipped with a 1" CMOS 4K image sensor, delivering a dynamic range, high S/N ratio, and high sensitivity for exceptional video production. This innovative camcorder also features a 20x optical zoom lens, providing optimal magnification and flexibility in framing shots and capturing distant subjects.

With the GY-HC500U, you can record in a wide variety of formats, including ProRes, directly to SSD or SDHC/SDXC media. The latest firmware update also allows for HD recording in ProRes 422 and 422HQ formats.

This sophisticated camcorder is designed for professional use, featuring a full complement of IP remote control and viewing features. It also supports high-performance 1080 60p/50p live streaming with advanced Secure Reliable Transport (SRT) QoS.

The GY-HC500U is not just a camcorder; it's a connected cam, offering the possibility of incredibly efficient HEVC/H.265 compression streaming with the optional KA-EN200G encoder.

The GY-HC500U also boasts practical auto focus and assist functions, providing highly accurate, stable focusing essential for 4K shooting. Its robust body and excellent weather resistance make it a reliable choice for fieldwork in various shooting situations.

Experience the versatility of dual SD card slots, allowing for continuous recording or backup recording modes. The GY-HC500U also supports HD live streaming up to 24Mbps with low latency, making it a truly versatile camcorder for any professional videographer.

With the GY-HC500U 9.35MP 4K UHD Handheld Connected Camcorder, you're not just capturing footage; you're creating high-quality, professional video content.

GY-HC500U 9.35MP 4K UHD Handheld Connected Camcorder Features

  • 10-bit ProRes 422/422HQ/422LT, at 4K UHD resolution and 59.94p/50p/29.97p/25p/23.98p recording to M.2 SSD (with optional KA-MC100G media adapter)
  • 4K UHD 29.97p/25p/23.98p 4:2:2 10-bit or 4:2:0 8-bit (150Mbps) and various HD recording to SDHC/SDXC card (not included)
  • HDR recording, HLG or J-Log1 (10-bit)
  • Backup recording to SSD (with optional KA-MC100G media adapter)
  • Clip Continuous Record mode
  • 1" (effective) CMOS sensor with high picture quality
  • F11 Sensitivity
  • Newly-developed 3-ring 4K lens with 20x zoom (f=28mm-560mm 35mm equivalent)
  • 40x lossless dynamic zoom
  • 4" high resolution LCD monitor
  • LCOS Quad VGA viewfinder
  • XLR audio connectors
  • High performance 1080 60p/50p live streaming (4K Rec + HD streaming + 4K HDMI output)
  • Secure Reliable Transport (SRT) QoS for reliable, quality streaming
  • Facebook Live streaming with secure RTMPS protocol
  • Low latency and high-quality streaming up to 20Mbps with SMPTE 2022 Forward Error Correction
  • LAN terminal (Streaming/IFB/Remote) in addition to USB host
  • HEVC/H.265 encoding for streaming with 50% reduction in bit rate-or-contribution quality 4:2:2 10-bit streaming at up to 24Mbps (via optional KA-EN200G)
  • Return over IP (Return video and IFB)
  • Auto FTP to upload native video clips automatically

Key Features

  • High-quality 4K UHD handheld connected camcorder with 1" CMOS image sensor
  • Advanced 20x optical zoom lens for optimal magnification and framing flexibility
  • Supports a wide variety of recording formats including ProRes, directly to SSD or SDHC/SDXC media
  • Features high-performance 1080 60p/50p live streaming with Secure Reliable Transport (SRT) QoS
  • Equipped with practical auto focus and assist functions for stable 4K shooting
  • Robust body with excellent weather resistance, ideal for professional fieldwork
