230' (70.10m)
DVI (single link)
HDMI 1.4 video specs including 4K UHD, 12 bit color depth and 3D video support
HDCP 1.4
(1) HDMI Input
(1) 3-pin RS-232 screw terminal
(1) UTP Output
(1) 2.0 mm Locking DC Power Jack input
DVI signal VGA (640x480) thru WUXGA (1920x1200)
HDTV signal 480i through 4K at 30 Hz 4:4:4 or 4K at 60 Hz 4:2:0 UHD
All HDMI Embedded Audio
(1) RX, TX and GND on Terminal Strip. Supports all common baud rates including 1200, 2400, 4800, 9600, 19200, 38400, 57600, or 115200
Pass-Thru DDC for reading EDID directly from remotely connected display + HDCP handshake
Pass-Thru Consumer Electronics Control (CEC) for compatible devices
100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 2.0 A, regulated
0 to 40 deg. C (32 to 104 deg. F)
-40 to 70 deg. C (-40 to 158 deg. F)
10% to 90%, non-condensing
5 VDC, 2.0 A Power Supply
2.25W max
Convection
Metal (Steel ends, Aluminum extrusion)
CE
CE, FCC Class A
90,000 hours (estimate)
1.18 x 2.75 x 3.85" (3 x 6.99 x 9.78cm) (Depth excludes connectors)
0.75 lbs (0.34kg)

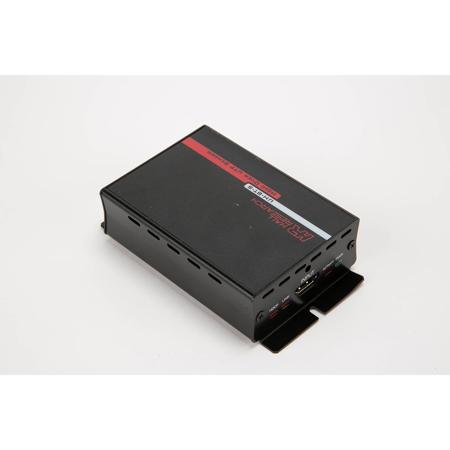

The UH-BT and UH-BTX are a family of HDBaseT compliant Senders and Receivers used to extend uncompressed HDMI video and RS-232 control signals up to 230' (-BT models) or 328' (-BTX models) over a single CAT5e/CAT6 UTP cable. The extenders are comprised of a Sender (-S) and a Receiver (-R) and extend all PC and HD resolutions without compression, up to 4K UHD. Full-duplex RS-232 extension is provided via 3-pin terminal blocks, supporting all baud rates up to 115,200 bps.
Note:
The UH-BT and UH-BTX Senders and Receivers are compatible with each other; however the maximum distance achievable is dictated by the lower of the two - 230'/70m.
