Used Handheld Camera Cage Rig with Wooden Handle and Start/Stop Trigger for Sony a7R, a7RII, a7S and a7SII Cameras (Tilta)
SKU: US1597052
This item is no longer available.
Share:
Overview
Compare
Learn
Specs
Protection
Reviews about this item
Review Summary
2017-01-10T10:47:10
Rated 5 out of 5
Tilta Cage
The Tilta cage is great- perfect , light and love the handle Also bought matte box- next getting shoulder mountand grips w/follow focus for hand - held.
MALCOLM M.
2016-11-14T14:41:12
Rated 5 out of 5
Improves the handling of the A7S
I am really enjoying this cage for my A7S. I shoot mostly video and have found that it really helps with the stability of my shooting. The camera is so small so the wooden handle helps provide a better grip and the record button is much easier to manage than the one on the camera. The cage is lightweight enough and offers so many ways to customize it. I do wish there was an easier way to release the camera from the cage instead of having to unscrew it from the tripod mount which can be a bit cumbersome, but overall it has been a good addition to my kit.
ASHLEY B.
2016-08-12T09:17:53
Rated 5 out of 5
Finally
I've needed something for my Sony A7RII and A7SII for a while now and I couldn't be happier with this cage. I use it to add on a shotgun mic, Atomos Shogun Flame, Atomos Power Station and sometimes addition light. My cameras fit perfectly allowing me to access all the buttons with ease. The grip feels great and works flawlessly. Get it you'll be happy you did.
Wayne L.
2016-06-02T15:27:29
Rated 4 out of 5
Build quality is superb with plenty of options for mounting accessories
The best part of this rig is the start/stop button on the comfortable wooden handle. However, this only works the body. Will not trigger my Atomos, "yet". Build quality is superb with plenty of options for mounting accessories.
Rod D.
Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.
TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.
Invest in Pre-Owned Gear & Peace of Mind!
Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.
Repair or Replacement
If we can’t fix it, we’ll replace it at no additional cost.
Extended Protection
Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.
Peace of Mind
Enjoy your gear without fear. We have you covered!
Malfunction Protection
When regular use of your product over time results in mechanical or electrical failure.
Zero Deductible
We will never charge you a deductible after the purchase of a plan.
Customer-Focused Support
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.
Browse our FAQ
Tilta Cage Rig Specifications
Additional Item includes
2x 12" Threaded 15 Mm Rod (R15-300) - 3x 3mm Socket Cap Screw - 4x 4mm Flat Phillips Head Screw
Cage: 1/4"-20 Threaded Holes
87
Cage: 3/8"-16 Threaded Holes
4
Cage: Compatibility With
Sony a7/a7s Quick Release Rail
Sony a7RII / a7sII Quick Release RailCage: Material
Aluminum
Baseplate: Baseplate Type
15mm LWS
Baseplate: Dovetail Compatibility
TT-C16
Baseplate: Rod Compatibility
15mm / 0.59"
Baseplate: Rod Spacing
60mm / 2.36"
Baseplate: Tripod Mounting
3x 1/4"-20
Baseplate: Material
Aluminum
Top Handle: Shoe Mounts
1
Top Handle: 1/4"-20 Threaded Holes
2
Top Handle: 3/8"-16 Threaded Holes
1
Top Handle: Compatible With
Accessory Rail
Top Handle: Material
Aluminum
Accessory Rail: 1/4"-20 Threaded Holes
2
Accessory Rail: 3/8"-16 Threaded Holes
1
Accessory Rail: Compatible With
a7 Series Cage
a7 Lens Support BaseplateAccessory Rail: Material
Aluminum
QR Rail: Compatible With
a7 Series Cage
a7 Lens Support BaseplateQR Rail: Material
Aluminum
Single Rod Clamp: Rod Compatibility
15mm / 0.59"
Single Rod Clamp: Compatible With
Thumbscrew
a7 Series CageThreaded Rod: Type
Tapered (Single-Sided)
Threaded Rod: Rod Diameter
15mm / 0.59"
Threaded Rod: Rod Length
12" / 30.48cm
Threaded Rod: Thread Type
Female
Threaded Rod: Material
Aluminum
Micro HDMI Plug Protector: Material
Aluminum
Standard HDMI Plug Protector: Material
Aluminum
HDMI Cable: Length
11.4" / 28.96cm
Wooden Handle: Material
Brazilian Rosewood / Aluminum Alloy
USB Cable: Cable Type
Coiled
USB Cable: Length
15 to 36" / 38.10 to 91.44cm
Weight
Cage: 0.58lbs / 0.26kg
Baseplate: 0.6lbs / 0.27kg
Top Handle: 0.42lbs / 0.19kg
Accessory Rail: 0.05lbs / 0.02kg
A7 / A7S Quick Release Rail: 0.05lbs / 0.02kg
Single Rod Clamp: 0.02lbs / 0.01kg
Threaded 15mm Rod: 0.18lbs / 0.08kg
Micro HDMI Plug Protector: 0.02lbs / 0.01kg
Standard HDMI Plug Protector: 0.02lbs / 0.01kg
HDMI Cable: 0.04lbs / 0.02kg
Wooden Handle: 0.44lbs / 0.20kg
Multi-Terminal USB Control Cable: 0.07lbs / 0.03kg
Related Articles & Videos
The Perfect Sony Gear Bag for Photo AND Video
These days you kind of have to be a mixed bag of talent. If you shoot stills, you should also know how to shoot motion, or at the very least, be able to direct a good film to go in conjunction with that campaign you just shot. I primarily shoot stills on Nikon, but I have an Read more
About Handheld Camera Cage Rig for Sony a7R/a7RII/a7S/a7SII Cameras - (Tilta) #1597052

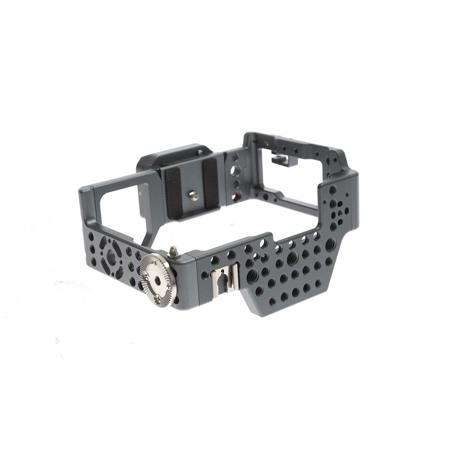

The ES-T17-A consists of a fully enclosed unibody rig made out of a single piece of CNC machined aluminum featuring a handcrafted Start/Stop remote trigger handle wooden handle made out of Brazilian rosewood. The bottom of the rig has an open section for the battery port, which makes battery removals or changes much easier. A NATO rail mounted top handle is included with the ES-T17 camera rig. It can be adjusted into four different positions and the top handle also features a cold shoe mount. The entire rig features an impressive total of 101 1/4"-20 and 14 3 /8"-16 threaded mounting holes. This allows you to mount accessories on every side of the camera if needed!
In addition to the multiple points, the ES-T17 camera rig is also versatile enough to fit all versions of the Sony a7 Series. It can also be configured to work for the Movi, Ronin, Shoulder rigs, drones, etc.
• Fits all of the a7 series full frame mirrorless digital cameras
• Fully enclosed unibody camera rig made out of a single piece of CNC machined aluminum
• Arri standard rosette wooden handle with start/stop trigger
• 15 mm light weight support baseplate with an integrated lens adapter support
• Lens support is compatible with EF to E-Mount and PL to E-Mount Metabones adapters
• Compatible with Sony's XLR-K1M and XLR-K2M audio adapter
Sony a7 Series Compatibility
The camera rig is designed to perfectly fit the entire Sony a7 series of mirrorless digital cameras.
XLR Audio Adapter Compatible
The cage is designed to fit around the top of the camera's hot shoe mount. This allows the operator to mount Sony's XLR audio adapter (XLR-K1M or XLR-K2M) directly to the top of the camera.
Baseplate Support
• A 15mm Lightweight Support baseplate with an integrated lens adapter comes with the ES-T17.
• The lens adapter is compatible with EF to E-Mount or PL to E-Mount Metabones adapters. A second lens support bar is also included.
• The quick release rail design allows the ES-T17 cage to easily connect or detach from the baseplate.
Loaded with Features
• Arri Standard Rosette
• Cold Shoe Mount
• 15mm Threaded Rods
• Camera Strap Access
• HDMI Plug Protector
• 15mm Accessory Rod Clamp
What's in the box:
- Quick Release Top Handle
- Camera Hex Screw
- NATO Rail for Top of Cage
- a7/a7S Quick Release Plate
- a7S II/a7R II Quick Release Plate
- 15mm LWS Baseplate with Lens Support Bracket
- Elongated Screw for Metabones EF Lens Adapters
- Elongated Screw for Metabones PL Lens Adapters
- Top Plate 15mm Rod Adapter
- Wood Handgrip
- Micro-USB to Fischer Connector for Handgrip
- Micro-HDMI Clamp
- HDMI Clamp
- 2x 15mm Threaded Support Rod
- Item Note: Missing Micro-HDMI Cable
