Used Hasselblad HCD 24mm f/4.8 Wide Angle Prime Lens for H4X, H2D, H3D, H4D & H5D, 92deg. Angle of View, 1.25' (0.38 m) Min Focus Distance

SKU: US2050767 MFR: H-3023024
Earn VIP Reward Points

Key Features

  • 95mm Filter Thread Diameter & 105 / 112mm Filter Adapters Included
  • For Hasselblad H4X, H2D, H3D, H4D & H5D Digital Cameras
  • Electronic Shutter & Multi-Coated Lenses
  • Focus Drive Motor & Instant Manual Focus
  • Rear-Focusing 37x49mm Digital Lens
  • Metal & Plastic Lens Construction
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Hasselblad HCD 24mm f/4.8 Wide Angle Prime Lens for H4X, H2D, H3D, H4D & H5D, 92deg. Angle of View, 1.25' (0.38 m) Min Focus Distance Specifications

  • Compatibility

    Hasselblad H4X, H2D, H3D, H4D & H5D Lens

  • Focal Length

    24.3mm (0.95")

  • Aperture

    Maximum: f/4.8
    Minimum: f/32

  • Camera Mount

    Hasselblad H

  • Angle of View at Infinity

    92deg.

  • Minimum Focus Distance

    1.25' (0.38 m)

  • Area of coverage

    48x36cm (18.89x14.17")

  • Groups/Elements

    11/14

  • Maximum Reproduction Ratio

    1:9.7

  • Shutter Type

    Electronic

  • DOF Scale

    Yes

  • Distance Scale

    Yes

  • PC Outlet

    Yes

  • Autofocus

    Yes

  • Filter Thread

    Front: 95 mm / 3.74"

  • Dimensions

    3.94x3.90" (10x9.9cm)

  • Weight

    1.78 lbs (0.80kg)

About Hasselblad HCD 24mm f/4.8 Wide Angle Prime Lens for H4X, H2D, H3D, H4D & H5D, 92deg. Angle of View, 1.25' (0.38 m) Min Focus Distance

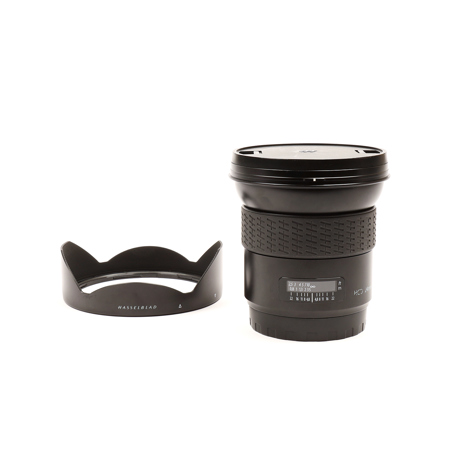

The Hasselblad HCD 24mm f/4.8 Wide Angle Prime Lens is a rear-focusing lens designed specifically for digital use on H-series Hasselblad cameras, including the H4x, H2D, H3D, H4D and H5D. Because of this, the lens is not compatible with the Hasselblad 1.7x Converter or film magazines.

It is constructed with metal wherever possible, rather than plastic, in order to ensure reliability and durability year after year. It has 14 glass elements in 11 groups, arranged in a rear-focusing type design. In addition, the special optical design of the lens provides a uniquely soft, smooth quality to the blurred or out-of-focus areas of the image. It supports 95mm threaded filters and includes 105 and 112mm step-up filter adapters.

All HCD lenses have electronic shutter mechanisms and feature multi-coatings for efficient stray light elimination, an integral focus drive motor and instant access to manual focus without switching between manual and auto focus.

Hasselblad HCD 24mm f/4.8 Wide Angle Prime Lens for H4X, H2D, H3D, H4D & H5D, 92deg. Angle of View, 1.25' (0.38 m) Min Focus Distance Features

  • Rear-Focusing 37x49mm Digital Lens: The HCD 24mm lens is designed solely for digital 37x49mm formats - it does not cover the 41.5x56mm film format
  • For Hasselblad H4X, H2D, H3D, H4D & H5D Digital Cameras: The HCD 24mm f/4.8 is designed for use on the Hasselblad H4X, H2D, H3D, H4D and H5D digital cameras
  • Electronic Shutter & Multi-Coated Lenses: All HCD lenses have electronic shutter mechanisms and feature multi-coatings for efficient stray light elimination
  • Focus Drive Motor & Instant Manual Focus: Its integral focus drive motor provides accurate auto focus when you need it, with instant access to manual focus without having to take time switching between them
  • Metal & Plastic Lens Construction: Putting their attention onto long-term reliability and durability, Hasselblad built this HCD lens using metal, not plastic, wherever possible
  • 95mm Filter Thread Diameter & 105 / 112mm Filter Adapters Included: The lens uses threaded filters and includes lens caps, as well as a bayonet mount lens hood that can be reverse mounted for transport
  • 18mm (35mm Equivalent) Lens: Having compared the horizontal coverage between 37x39 and 24x36, this lens' 24mm focal length is rated at the 35mm equivalent of an 18mm lens on a full-frame DSLR camera

Warranty Information

This used item has a FREE 180-day warranty. See details.

Key Features

  • 95mm Filter Thread Diameter & 105 / 112mm Filter Adapters Included
  • For Hasselblad H4X, H2D, H3D, H4D & H5D Digital Cameras
  • Electronic Shutter & Multi-Coated Lenses
  • Focus Drive Motor & Instant Manual Focus
  • Rear-Focusing 37x49mm Digital Lens
  • Metal & Plastic Lens Construction
