Hikvision DS-7332HGHI-SH 32-CH HD-TVI DVR - SKU1196509

Picture does not represent the actual item
See what's in the box

See all Hikvision items

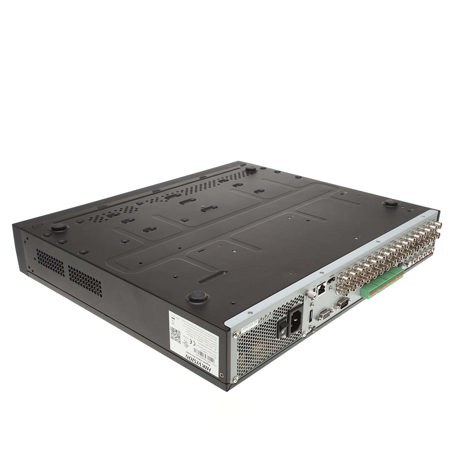

Used Hikvision DS-7332HGHI-SH 32-CH HD-TVI DVR (No HDD), Up to 2MP Recording Resolution, H.264, 4-SATA

SKU: US1196509
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Hikvision DS-2CD2T45FWD-I5 4MP 2688x1520 Outdoor IR Network Fixed Bullet Camera with 2.8mm Lens, IP67
undefined undefined: Picture 1 regular
Hikvision DS-2CE56D8T-ITM 2MP 1080p HD Outdoor Ultra-Low Light IR Turret Camera with 2.8mm Lens, IP67, PAL/NTSC
undefined undefined: Picture 1 regular
Used Hikvision DS-2CD2343G0-I 4MP 2688x1520 Outdoor IR Network Turret Camera with 2.8mm Lens, IP67
undefined undefined: Picture 1 regular
Used Hikvision DS-2CE56D5T-IT3 Outdoor Day & Night HD1080p Turbo HD EXIR Turret Camera with 12mm Lens, 1920x1080, 30fps
undefined undefined: Picture 1 regular
Used Hikvision HD720P 1.3MP Turbo IR PTZ Outdoor Dome Camera, 23x Optical Zoom, Day/Night, IP66, Heater, 24VAC
undefined undefined: Picture 1 regular
Acetek PTZ-SH20X HD SDI/HDMI Broadcast and Conference 20x PTZ Camera
undefined undefined: Picture 1 regular
Patrol Eyes Police Data Transfer 8-Camera Docking Station for SC-DV10 Body Camera
undefined undefined: Picture 1 regular
QNAP TVR-AI200 16-Channel 2-Bay 16MP PoE+ Smart NVR, Diskless
undefined undefined: Picture 1 regular
Marshall Electronics CV605 2MP HD 3G-SDI/IP 5x PTZ Camera, Black
undefined undefined: Picture 1 regular
AIDA PTZ-NDI3-X20W Full HD NDI|HX3 20x PTZ Camera, White
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Hikvision DS-7332HGHI-SH Specifications

  • Video compression

    H.264

  • Analog and HD-TVI video input

    32-ch, BNC interface (1.0Vp-p, 75 Ohms)

  • Supported camera types

    720p/25, 720p/30, 720p/50, 720p/60, 1080p/25, 1080p/30, CVBS

  • IP video input

    8-ch (up to 32-ch)
    Up to 2MP resolution

  • Audio compression

    G.711u

  • Audio input

    4-ch, RCA (2.0 Vp-p, 1 KOhms)

  • Two-way audio input

    1-ch, RCA (2.0 Vp-p, 1 KOhms)

  • HDMI / VGA output

    1920 x 1080/60 Hz ,1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz

  • Encoding resolution

    Main stream: 1080p (non-real-time)/720p/WD1/VGA/4CIF/CIF
    Sub-stream: WD1 (non-real-time)/4CIF (non-real-time)/CIF/QCIF/QVGA

  • Frame rate

    Main stream: 1/16 fps to Real time frame rate
    Sub-stream: 1/16 fps to Real time frame rate

  • Video bitrate

    32 Kbps to 6 Mbps

  • Audio output

    1-ch, RCA (Linear, 1KOhms)

  • Audio bitrate

    64 Kbps

  • Dual-stream

    Support

  • Stream type

    Video, Video & Audio

  • Synchronous playback

    32-ch

  • Playback resolution

    1080p/720p/VGA/WD1/4CIF/CIF/QVGA/QCIF

  • Remote connection

    128

  • Network protocols

    TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP, HTTPS

  • Type

    4 SATA interfaces for 4 HDDs; 1 eSATA interface

  • Capacity

    Up to 6TB capacity for each disk

  • Network interface

    1; 10M/100M/1000M self-adaptive Ethernet interface

  • Serial interface

    RS-232, RS-485, Keyboard

  • USB port

    3 x USB 2.0

  • Alarm in/out

    16/4

  • Power supply

    100 to 240 VAC, 47 to 63 HZ

  • Consumption

    = 65W

  • Working temperature

    -10 to 55 deg. C / 14 to 131 deg. F

  • Working humidity

    10 - 90%

  • Chassis

    19-inch rack-mounted 1.5U chassis

  • Dimensions (W x D x H)

    17.5 x 15.3 x 2.7" / 44.45 x 38.86 x 6.86cm

  • Weight

    11lbs / 4.99kg (without hard disks)

About Hikvision DS-7332HGHI-SH 32-CH HD-TVI DVR - SKU1196509

• Connectable to TVI and analog cameras
• Support HIKVISION-C protocol for connecting camera over coax
• Connectable to network cameras
• Simultaneous HDMI and VGA outputs at up to 1920x1080p resolution
• New GUI and supports starting record with one key
• Redundant recording, holiday recording schedule configuration
• Instant playback for assigned camera during multi-channel live view mode
• Support up to 32-ch synchronous playback; and reverse playback for multi-channel
• Smart playback to go through less effective information
• Manual video quality diagnostics
• Support VCA alarm (line crossing detection and intrusion detection)
• Customization of tags, searching and playing back by tags
• Locking and unlocking record files
• Support HDD quota and group management; different capacity can be assigned to different cameras under quota mode
• Provide 4 SATA interfaces and 1 eSATA interface for record and backup
• 1 self-adaptive 10M/100M/1000M network interface
• Support access by EZVIZ Cloud P2P
• Support Hikvision DDNS (Dynamic Domain Name System)
• Network detection function

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Power Cord
  • Remote Control
  • USB Mouse
  • Rack Ear Mounts
  • Original Box
  • Item Note: Item powers on but was not fully tested
