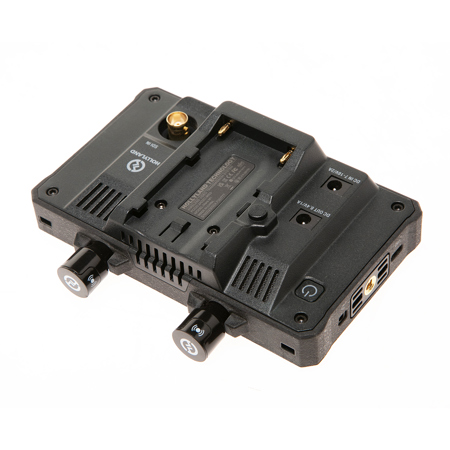

Hollyland Mars M1 5.5" Wireless On-Camera Transceiver Monitor - SKU#1769867

Picture does not represent the actual item
See what's in the box

See all Hollyland items

Used Hollyland Mars M1 5.5" Wireless On-Camera Transceiver Monitor

SKU: US1769867
Be the first to review this item

This item is no longer available.

Recommended Items

undefined undefined: Picture 1 regular
Hollyland Mars M1 Enhanced 5.5" Wireless Transceiver Monitor
undefined undefined: Picture 1 regular
Hollyland Mars M1 Enhanced 5.5" Wireless Transceiver Monitor, 2-Pack
undefined undefined: Picture 1 regular
Hollyland Pyro 7 Dual 7" Wireless Transceiver Monitors
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Hollyland Mars M1 Specifications

  • Video Input Interface

    Transmitter Mode: SDI input (BNC female), HDMI input (Type-A female)

  • Video Output Interface

    HDMI output (Type-A female)

  • Antenna Interface

    Two RP-SMA male interfaces

  • Power Input Interface

    DC power input

  • Power Output Interface

    DC power output

  • Headphone Jack

    3.5mm jack

  • Firmware Upgrade Interface

    USB Type-C

  • Screen Size (diagonal)

    5.5" touch screen

  • Screen Resolution

    1920 x 1080 pixels

  • Pixel Density

    403 ppi

  • Aspect Ratio

    '16:9

  • Brightness

    1000 nits

  • Contrast Ratio

    '1000:1

  • Supply Voltage Range

    6-16V DC, nominal 12V

  • Power Consumption

    Transmitter Mode<14.5W (without DC output)
    Receiver Mode: <10W (without DC output)

  • Input Video Formats

    Transmitter Mode

    HDMI:
    720P50/59.94/60 Hz
    1080i50/59.92/60 Hz
    1080p23.98/24/25/29.97/30/50/59.94/60 Hz
    3840x2160p23.98/24/25/29.97/30 Hz
    4096x2160p23.98/24/25/29.97/30 Hz

    SDI:
    720p50/59.94/60 Hz
    1080i50/59.94/60 Hz
    1080p23.98/24/25/29.97/30/50/59.94/60 Hz

  • Output Video Formats

    Transmitter Mode

    HDMI in HDMI out:
    720p50/59.94/60 Hz
    1080i50/59.94/60 Hz
    1089p23.98/24/25/29.97/30/50/59.94/60 Hz
    3840x2160p23.98/24/25/29.97/30 Hz
    4096x2160p23.98/24/25/29.97/30 Hz

    SDI in HDMI out:
    720p50/59.94/60 Hz
    1080i50/59.94/60 Hz
    1080p23.98/24/25/29.97/30/50/59.94/60 Hz

  • Output Video Formats (Contd.)

    Receiver Mode

    HDMI in HDMI out:
    720p50/60 Hz
    1080i50/60 Hz
    1080p24/25/30/50/59.94/60 Hz
    1080p24/25/30

    SDI in HDMI out:
    720p50/60 Hz
    1080p24/25/30/50/59.94/60 Hz

  • Operating Frequency

    5.1-5.9GHz

  • Codec Technology

    H.264

  • Transmit Power

    12Mbps

  • Receiver Sensitivity

    Max. 23dB/m

  • Transmission Delay

    -80dB/m

  • Bandwidth

    <80ms

  • Bit Rate

    20MHz

  • Dimensions (L x W x H)

    6 x 3.8 x 1.6" (152 x 96 x 40mm)

  • Weight

    13.4 oz (380g) (antennas excluded)

About Hollyland Mars M1 5.5" Wireless On-Camera Transceiver Monitor - SKU#1769867

Compact designed long-range low latency FHD Transmit and Receive video display.

• Integrated wireless video transceiver (not Transceiving) monitor
• Switch between Transmit and Receive Modes (Patented)
• Support 1 TX to 2 RXs, or 1 RX plus 2 Mobile APP connections
• Compatible with Mars 300 Pro & Mars 400s Pro
• Support LUT files import via Type-C port
• Smart wireless frequency scanning (RX)
• Support UHD 4K 30fps input (HDMI)
• Feature 3G-SDI interface and cross convert with SDI in & HDMI out
• DC OUT interface for camera power supply
• Low-battery notification

Hollyland Mars M1 5.5" Wireless On-Camera Transceiver Monitor - SKU#1769867 Features

  • TX, RX, and Monitor-All in One
  • 5.5" Touch LCD
  • 3D LUTs
  • 1000 Nits
  • 450' (150m) LOS Range
  • 0.08s Low Latency
  • 4K/30fps
  • Disassembly-free Antenna

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Hollyland Mars M1 5.5" Wireless On-Camera Transceiver Monitor
  • 2x Lollipop Stubby Antennas
  • Tempered Glass Film
  • Firmware: V2.1.0.4_H210
  • Item Note: Missing OTG Adapter
