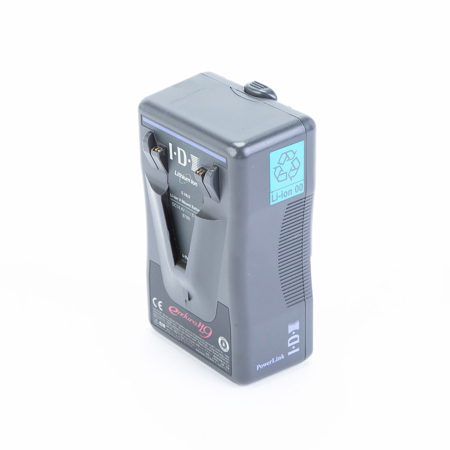

Used IDX E-HL9 88Wh Li-ion High Load Battery with V-Mount.

SKU: US1946145 MFR: EHL9
$31.00
Earn VIP Reward Points

What`s in the box:

  • IDX E-HL9
See more

Key Features

  • Digi-View gives the camera operator an accurate display of the E-HL9's remaining capacity
  • Monitor the history and condition of their batteries to increase their life span
  • Attach E-HL9 batteries to cameras via P-V2 and P-VS2 adaptor plates
  • Advanced low temperature discharge characteristics
  • With a continuous draw of up to 10 Amps
  • Battery circuit protection
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

IDX E-HL9 Specifications

  • Battery Capacity

    14.4V, 6.15Ah, 88Wh

  • Max. Output Voltage

    16.8V DC

  • Nominal Voltage

    14.4V DC

  • Maximum Discharge Current

    10A (120W)

  • End Voltage

    12V

  • Battery Protection

    Over charge (reset)
    Over discharge (reset)
    Over current (reset)
    Temperature protection (non reset)

  • Ambient Temperature

    To charge: 32½F ~ 104½F (50½F ~ 86½F recommended)
    To discharge: -4½F ~ 113½F (50½F ~ 104½F recommended)
    To store: -4½F ~ 140½F (32½F ~ 68½F recommended)

  • Dimensions

    3.35(W) x 5.51(H) x 2.28(D) inches

  • Weight

    1.63 lbs. approx.

  • Warranty

    IDX 2 years extended warranty

About IDX E-HL9 88Wh Li-ion High Load Battery with V-Mount.

IDX E-HL9 Combines the best characteristics of most popular power models, the E-HL9 is designed to match the demands of power-hungry HD environments by supporting sustained high current loads. Standard IDX features such as PowerLink, Digi-View and the Battery Management System are inherent in the E-HL9 series.

IDX E-HL9 88Wh Li-ion High Load Battery with V-Mount. Features

  • With a continuous draw of up to 10 Amps, the E-HL9 has an impressive capacity using highly durable cell technology
  • High-load capacity results in 50% higher discharge rate for this series.
  • Advanced low temperature discharge characteristics prohibit a voltage drop off down to -4 degrees Fahrenheit in extreme environment conditions.
  • Longer overall lifecycle-operators can expect about 10% longer battery viability when the 500-cycle level is reached.
  • PowerLink technology allows two E-HL9 batteries to be docked together, doubling capacity up to 176Wh for longer run times and high power needs.
  • Digi-View gives the camera operator an accurate display of the E-HL9's remaining capacity, shown via the camera's viewfinder.
  • 5 Power Status LEDs are located on the side of the E-HL9 for a quick and accurate check of remaining capacity, shown in increments of 20%.
  • BMS is a unique software package that enables users to monitor the history and condition of their batteries to increase their life span. BMS gathers battery data and provides PC access to a comprehensive database, invaluable when managing large fleets of ELITE, E-10 and E-HL9 batteries.
  • Battery circuit protection ensures the E-HL9 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures.
  • Most environmentally friendly and safest battery in its classification.
  • Weighing only 1.63 lbs., the E-HL9 is compact and durable, ideal for regular use and transportation to and from location.
  • Attaching E-HL9 batteries to cameras without a standard V-Mount connection is possible through the use of P-V2 and P-VS2 adaptor plates, available separately from IDX and can be fully recharged using an ENDURA sequential or simultaneous charger.
