Used Ikan Atlas 19.5" Studio/Field Monitor with Integrated Hard Case, 1920x1080

SKU: US1968005 MFR: AX20-FK
Earn VIP Reward Points

What`s in the box:

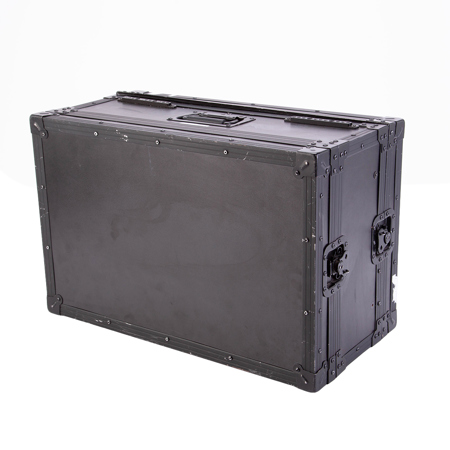

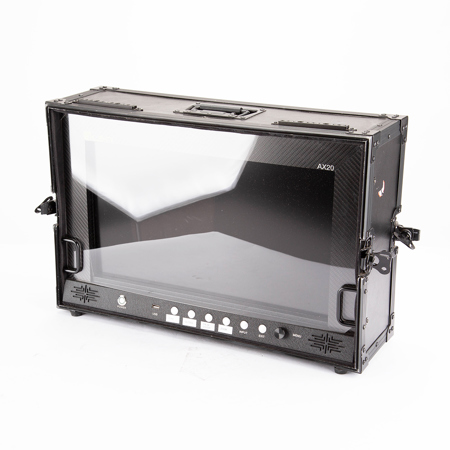

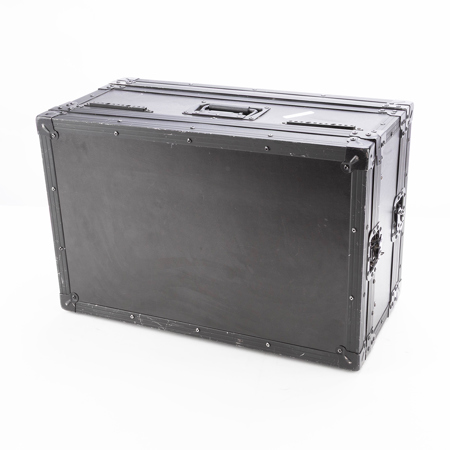

  • Ikan Atlas 19.5" Studio/Field Monitor with Hard Case
  • Power Adapter with Cord
See more

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$103.99

3 Year

$161.99

4 Year

$220.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Ikan Atlas Specifications

  • Resolution

    1920 x 1080

  • Screen Size

    19.5"

  • Viewing angle

    178 deg. horizontal/178 deg. vertical

  • Supported Video Format: 3G-SDI

    1920x1080p at 50, 59.94, 60 Hz

  • Supported Video Format: HD-SDI

    1280x720p at 50, 59.94, 60 Hz; 1920x1080i at 50, 59.94, 60 Hz; 1920x1080psf at 23.98, 24, 25, 29.97, 30 Hz; 1920x1080p at 23.97, 24, 25, 29.97, 30 Hz

  • Supported Video Format: SD-SDI

    720x480i at 59.94, 60Hz; 720x576i at 50Hz;

  • Supported Video Format: HDMI

    720x480i at 60 Hz; 720x576i at 50 Hz; 1280x720p at 50, 59.94, 60 Hz; 1920x1080i at 50, 59.94, 60 Hz; 1920x1080psf at 24, 25, 29.97, 30 Hz; 1920x1080p at 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 Hz; 3840x2160p at 24, 25, 30 Hz; 4096x2160p at 24 Hz

  • Supported Video Format: Composite

    NTSC-M, NTSC-J, NTSC 4.43; PAL B/G H I D, PAL M, PAL N, SECAM

  • Aspect Ratio

    16:9

  • Brightness

    250 cd/m2

  • Build Material

    Aluminum

  • Color Depth

    8-bit (16.7M Colors)

  • Color Space

    100% sRGB

  • Color System

    PAL/NTSC/SECAM (Auto-Detected)

  • Contrast Ratio

    3000:1

  • Display Technology

    IPS

  • Inputs

    3G-SDI, HDMI, Composite

  • Operating Temperature

    0 to 50 deg. C (32 to 122 deg. F)

  • Operating Volts

    DC 12 -24V

  • Outputs

    3G-SDI, HDMI

  • Power Consumption

    30W

  • Audio Output

    3.5mm

  • Battery Type

    V-Mount

  • Dimensions

    22 x 15 x 11" (55.88 x 38.10 x 27.94cm)

  • Weight

    27 lbs (12.25kg)

About Ikan Atlas 19.5" Studio/Field Monitor with Integrated Hard Case, 1920x1080

The Ikan Atlas AX20-FK monitor is designed to be the ultimate field monitor. The monitor incorporates many features that make it ideal for field use such as its durable hard case. The AX20-FK is full of many features designed specifically to make working in the field easier and more efficient. In addition, the Atlas AX20-FK supports HDR preview mode to help get the right shot for HDR acquisition.

Ikan Atlas 19.5" Studio/Field Monitor with Integrated Hard Case, 1920x1080 Features

  • 1920 x 1080 LCD display
  • USB port for loading 3D LUTs
  • Built-in hard case with a mount for light and speaker stand
  • 4K Ultra HD support via HDMI
  • Waveform, RGB parade, vectorscope, histogram, peaking, false color, pixel-to-pixel, clip guides, image flip, audiometer
  • HDMI/3G-SDI input and output
  • V-mount battery plate

Warranty Information

This used item has a FREE 180-day warranty. See details.
