Used IOGEAR 2-Port 4K Dual-Link DisplayPort KVMP Switch with USB 3.0 Hub and Audio (TAA)

SKU: US1964077 MFR: GCS1942

This item is no longer available.

Overview
Compare
Learn
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

IOGEAR Switch Specifications

Requirements

Requirements

Jump to...
  • Requirements

    Console: 2x DisplayPort compatible monitors
    Standard 104 key wired USB keyboard
    Standard 2 or 3-button wired USB mouse
    Microphone and speakers (optional)

    Computer: 2x DisplayPort ports
    Type-A USB port
    Audio ports (optional)

Computer Connections

Jump to...
  • Direct

    2

  • Daisy Chain or Cascading

    2

Port Selection

Jump to...
  • Port Selection

    Pushbuttons, Hotkey, Mouse (mouse port switching only works with 3-key USB mouse wheel in emulation mode), or RS-232 commands

Console Connectors

Jump to...
  • Monitor

    2x DisplayPort (Black)

  • Keyboard

    1x USB Type A (Black)

  • Mouse

    1x USB Type A (Black)

  • Audio

    2x 3.5mm Mini Stereo Jack (Green; Front and Rear)

  • Microphone

    2x 3.5mm Mini Stereo Jack (Pink; Front and Rear)

CPU Connectors

Jump to...
  • Monitor

    2x DisplayPort (Black)

  • Keyboard & Mouse

    2x USB 3.0 Type B (Blue)

  • Audio

    2x 3.5mm Mini Stereo Jack (Green)

  • Microphone

    2x 3.5mm Mini Stereo Jack (Pink)

Switches

Jump to...
  • F/W Upgrade

    1x USB Type B

  • Port Selection

    2x Pushbutton

Connectors

Jump to...
  • USB

    1x USB 3.0 Type A (Blue; Front), 1x USB 3.0 Type A (Blue; Rear)

  • Serial

    1x RJ-45 (DCC)

  • On Line

    2x Orange

  • Selected

    2x Orange

  • Audio

    2x Green

  • USB Peripherals

    2x Green

Emulation

Jump to...
  • Keyboard

    USB

  • Mouse

    USB

Video Resolution

Jump to...
  • Video Resolution

    4096 x 2160 at 60 Hz (4K DCI)

Scan Interval

Jump to...
  • Scan Interval

    1-255 seconds (5 seconds default)

Power Consumption

Jump to...
  • Power Consumption

    DC 12V

Environment

Jump to...
  • Operation Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -20 to 60 deg. C (-4 to 140 deg. F)

  • Humidity

    0-80% RH, Non-condensing

Housing

Jump to...
  • Case

    Metal

General

Jump to...
  • Dimensions (HxDxL)

    2.125 x 6.125 x 13.19" (5.40 x 15.56 x 33.50cm)

  • Weight

    3.5 lbs (1.59kg)

Related Articles & Videos

The Best Gaming Consoles for 2020

The Best Gaming Consoles for 2020

Video game consoles are the quickest and easiest way to tap into the newest video games. Modern game consoles support high definition video and online multiplayer titles. Finding the right console comes down to your gaming lifestyle, Read more
Nintendo Switch vs Switch Lite: Which Is the Best for You?

About IOGEAR 2-Port 4K Dual-Link DisplayPort KVMP Switch with USB 3.0 Hub and Audio (TAA)

The 2-Port 4K Dual-Link DisplayPort KVMP Switch with USB 3.0 Hub and Audio (TAA) is a high-quality, durable, and efficient solution designed to maximize the potential of your high-end dual DisplayPort workstations. This user-friendly device allows you to experience cinema-grade 4K resolutions, rich bass, and immersive 7.1 surround sound while seamlessly switching between two computers and sharing two USB 3.0 peripherals with a simple push of a button.

This KVMP switch is designed to support dual 4K Cinema DisplayPort monitors, delivering a superior screen, image, and video quality that enhances your multimedia experience. With a 4K resolution standard of 4096 x 2160 at a frame rate of 60Hz, it's an ideal choice for professional film and video production industries, as well as applications in motion graphic design, animation, engineering, architecture, and media design.

Switching between two DisplayPort computers is made easy with convenient methods such as the push-button front panel or hotkey combination on your keyboard. The device also features the latest in mouse port-switching functionality, allowing you to change ports by simply clicking the wheel button on your 3-button USB mouse.

The 2-Port 4K Dual-Link DisplayPort KVMP Switch is also expandable, allowing you to tackle larger projects and double your desktop viewing space by adding a second 2-Port KVMP (GCS1942). This enables your workstations to accommodate up to four Cinema 4K DisplayPort monitors.

Smart connectivity features further enhance the versatility of this device. The Power on Detection feature ensures automatic connection to the next powered-on computer, while the Multi Stream Transport (MST) support allows you to double your desktop viewing space by daisy-chaining each monitor to another, accommodating up to four DisplayPort monitors. The built-in USB 3.0 ports provide connectivity speeds up to 5Gbps and are compatible with legacy USB 2.0 and 1.1 devices, making this KVMP switch a reliable and convenient powerhouse for your workstation.

IOGEAR 2-Port 4K Dual-Link DisplayPort KVMP Switch with USB 3.0 Hub and Audio (TAA) Features

  • Maximize your high-end multi-monitor workstation with superior video resolution
  • Share dual Cinema 4K DisplayPort monitors (4096 x 2160 at 60Hz)
  • Operate 4 DisplayPort computers with 1 keyboard, mouse and 2 monitors
  • Add another GCS1942 to expand up to four 4K monitors
  • DisplayPort 1.2 compliant, HDCP compliant
  • Allows independent switching of the KVM, USB and audio devices
  • Control/share USB3.0 peripherals between 4 computers; save money on duplicate devices
  • Work on computer "A" without interrupting USB peripheral connectivity on computer "B"
  • SuperSpeed 5Gbps transfer rate
  • MST (Multi-Stream Transport)
  • DP++ supports HDMI and DVI output
  • Computer selection via front panel pushbuttons, hotkeys, or mouse
  • Supports 7.1 HD audio through DisplayPort
  • Full bass response for high quality 2.1 channel audio
  • Mouse emulation or bypass feature supports most mouse drivers and multifunction mice
  • Multi-platform support - Windows7, Windows 8.1, Windows 10, Mac OS and Linux
  • Multilingual keyboard mapping supports English, French and German keyboards
  • Mac keyboard support and emulation
  • RS-232 Commands
  • Auto-Scan Mode to monitor all computers
  • Power on detection
  • Hot pluggable
  • Firmware upgradable

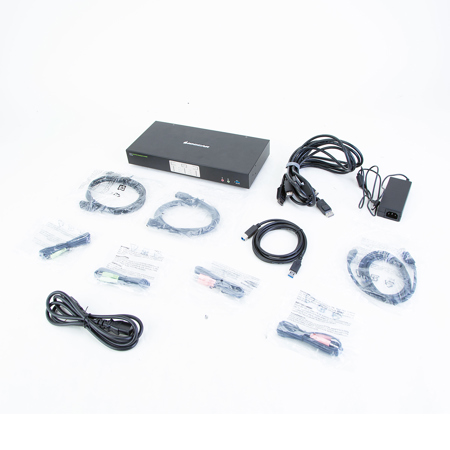

  • Includes all KVM and audio cables

Warranty Information

This used item has a FREE 90-day warranty. See details.

Key Features

  • Seamlessly switch between two computers with this IOGEAR 4K DisplayPort KVM switch.
  • Enjoy stunning video quality with resolutions up to 4K DCI at 60Hz on your DisplayPort monitors.
  • Connect multiple USB devices via the built-in USB 3.0 hub for enhanced connectivity and productivity.
  • Easily switch ports using pushbuttons, hotkeys, or even your mouse with this versatile KVM.
  • Experience high compatibility with USB keyboard and mouse emulation for error-free switching.
  • This durable metal KVM switch includes all necessary cables for a quick and easy setup.
