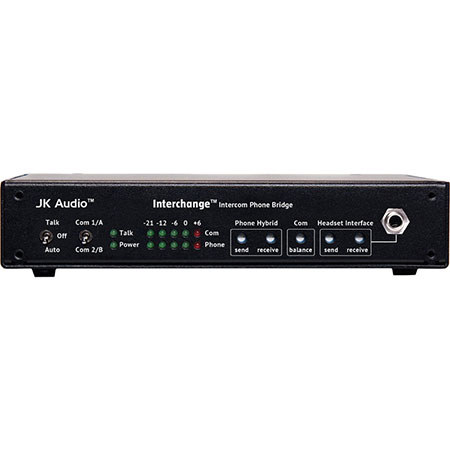

Used JK Audio Interchange Intercom Phone Bridge, Male & Female 3-pin XLR Connector, 200Ohms Terminating & 15kOhms Bridging Impedance

SKU: US1480743 MFR: INTCHG
$76.00
Earn VIP Reward Points

Key Features

  • Male and Female 3 pin XLR Intercom loop jacks
  • Male and Female 3 pin XLR 4-wire jacks
  • Male XLR Mix Line Out for Monitoring
  • Front panel mobile phone interface
  • Send and Receive LED metering
  • Front panel screwdriver level controls
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 90-day warranty. ?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$10.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

JK Audio Interchange Specifications

  • Connection

    Male & Female 3-pin XLR

  • Output Level

    0 dBu (775 mV) nominal

  • Impedance

    Terminating: 200Ohms
    Bridging: >15 kOhmss

  • Pin Configuration

    Pin 1: Common
    Pin 2: Audio + 30 VDC (+12 VDC minimum) 50 mA
    Pin 3: Audio

  • Input

    Balanced Female XLR: 20 kOhmss / 500 mV RMS (-4 dBu, nominal) +12 dBu maximum

  • Output

    Balanced Male XLR: 200 Ohms / 500 mV RMS (-4 dBu, nominal) +12 dBu maximum

  • Power

    Intercom powered +30 VDC (+12 VDC minimum) 50 mA

  • Dimensions

    7.60 x 5.30 x 1.50" (19.30 x 13.46 x 3.81cm)

  • Weight

    1.20lbs (0.54kg)

About JK Audio Interchange Intercom Phone Bridge, Male & Female 3-pin XLR Connector, 200Ohms Terminating & 15kOhms Bridging Impedance

The Jk Audio Interchange Intercom Phone Bridge allows remote access to your party-line intercom through Jk Audio Innkeeper Series Digital Hybrids. This professional half rack interface provides a four wire audio interface and remote control connection for Jk Audio innkeeper LTD, innkeeper 1x/1rx or innkeeper 2 Digital Hybrids for POTS lines or Jk Audio PBXport for PBX/VoIP lines. The front panel headset interface jack allows easy connection of your mobile phone, tablet or computer allowing remote access through a wireless phone or conferencing app.

The Listen-Always design allows both the phone hybrid / 4-wire connection and the mobile phone headset interface to monitor the intercom just like any other belt pack. Listen mode is a high impedance bridging tap on the intercom line. Talk mode is enabled via a front panel switch, either Off, On or Auto. Auto follows the phone hybrid Auto-Answer mode.

The Innkeeper 2 conference feature allows two callers to share one intercom connection. Alternatively, the included cables allow Line 1 and Line 2 of the Innkeeper 2 to be connected to two separate Interchange units, allowing connection to separate intercom loops.

JK Audio Interchange Intercom Phone Bridge, Male & Female 3-pin XLR Connector, 200Ohms Terminating & 15kOhms Bridging Impedance Features

  • Male and Female 3 pin XLR Intercom loop jacks
  • Male and Female 3 pin XLR 4-wire jacks
  • Male XLR Mix Line Out for Monitoring
  • Front panel mobile phone interface
  • Send and Receive LED metering
  • Front panel screwdriver level controls
  • Front panel Channel Select
  • Listen always, Talk when Talk-Enabled

Warranty Information

This used item has a FREE 90-day warranty. See details.
