Used JVC DT-X71F ProHD 7" AC/DC Portable Full Featured Monitor (HD-SDI, HDMI, Composite)

JVC DT-X71F ProHD 7" AC/DC Portable Full Featured Monitor (HD-SDI, HDMI, Composite) Features

• High Resolution 7" LCD Panel: 16:9, 1024 x 600 resolution, 16.77 million colors, 900:1 contrast ratio, 160deg. (horizontal) and 160deg. (vertical) viewing angle

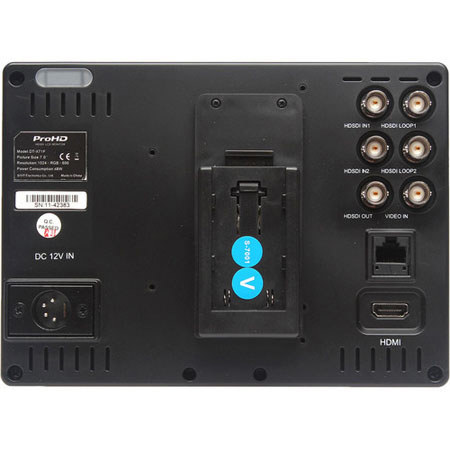

• Multiple Inputs: 2 x HD/SD-SDI, 1 x HDMI; 1 x Composite
• Loop Through Outputs: Each of the 2 input HD/SD-SDI has a loop through output
• DSLR Scale Zoom In: The Canon DSLR outputs the CMOS sensor ratio HDMI and this zoom in mode can make the effective image scale full screen on the monitor
• User Definable Function Keys: There are 3 function keys on the monitor front panel that users can save shortcuts to
• HDMI Converted to SDI Output: Supported HDMI formats: 480i / 576i / 720p (50, 59.95, 60) / 1080i (50, 59.94, 60) / 1080p (23.98, 24, 25, 29.97, 30) and the output SDI will embed the audio (48kHz) from HDMI
• Vector Scope: The displayed vector scope pattern is available under both SDI and HDMI, represents saturation as distance from the center of the circle and hue as the angle, in standard position, around it
• Histogram (R, G, B): The histogram is a bar graph that shows the distribution of luminance values in the picture. There are R, G, B histograms that can be simultaneously displayed, under both SDI and HDMI
• 16-Channel Audio Meter: Under HDSDI, it displays 16 channel audio bars, under SDSDI or HDMI, it displays 2 channel audio bars. The audio bar is green will turn yellow when audio exceeds -20dB and it will turn red when it exceeds -10dB
• SDI Timecode: Under SDI input, it can display the SMPTE timecode, which is used extensively for synchronization and for logging and identifying material in recorded material
• Peaking Focus Assist (Red/Blue Switch): The peaking focus assist function marks the sharpest edges of the image with red or blue, so users can check if the subjects are in focus
• Zebra Stripes: Zebra Stripes are used to check if the image is over exposed or not by showing black and white lines on the monitor. It is considered over-exposed when luminance value exceeds 90%
• False Color: The false color is used to aid in the setting of camera exposure. Under false color mode, there's a false color key on the bottom of the screen for reference
• Blue Only: Under the Blue Only Mode, only the blue pixels are used to generate the image, because hue and saturation can be adjusted quicker and more accurately
• G-Sensor Auto Flip: Enable the G-sensor auto flip, the image will rotate automatically when the monitor is bottom up
• Underscan/Overscan Switch: The DT-X71F features an underscan/overscan switch
• User Editable Video Title: The user can edit a video title for the current camera and the title will display on the top of the screen
• Front and Rear 3-Color TALLY Light: 2 TALLY lights give "live" signals to people in front of the camera, as well as to the camera operator behind. TALLY lights are accessed through an RJ-45 rear panel connector
• Power: The DT-X71F is powered via a 4-pin XLR 12VDC connector or a snap-on JVC BN-VF823USP 7.2V battery (optional)
