Used JVC DT-X71HI 7" On-Camera Field Monitor, 1024x600 Resolution, 900:1 Contrast Ratio, 2 SDI Input with 1 Loop-Out, 1 HDMI, RCA L/R Audio Input

SKU: US2011176 MFR: DT-X71HI
Earn VIP Reward Points

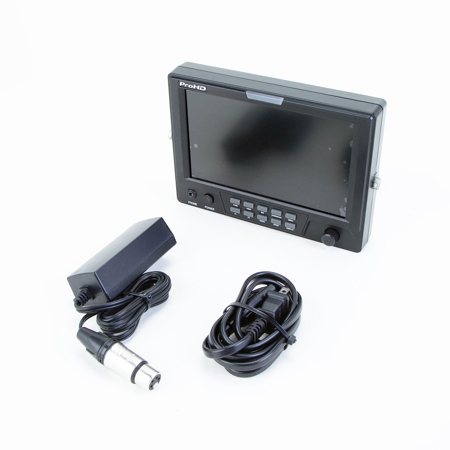

What`s in the box:

  • JVC DT-X71HI 7" On-Camera Field Monitor
  • AC Adapter
  • Hood
See more

Key Features

  • Experience sharp visuals on the 7" JVC field monitor with its detailed 1024x600 resolution.
  • Achieve optimal viewing with a 900:1 contrast ratio, ensuring deep blacks and bright whites on screen.
  • Connect various devices using dual HD/SD-SDI inputs and HDMI for versatile video monitoring.
  • Enjoy flexible audio input with RCA L/R, perfect for on-camera monitoring during shoots.
  • Utilize the loop-through output to chain multiple monitors, streamlining your video production setup.
  • Lightweight at 1.3lbs, this 7" monitor is ideal for on-location shoots, offering portability.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

JVC DT-X71HI Specifications

  • Screen Size

    7" LCD (17.8 cm)

  • Resolution

    1024 x 600

  • Brightness

    400 nit

  • Contrast

    900:1

  • Viewing Angle

    160deg./160deg.

  • Aspect Ratio

    16:9 / 4:3

  • Colors

    16.7M

  • Input

    2x HD/SD-SDI
    1x HDMI
    1X Composite on BNC
    1x RCA L/R audio
    1x Headphone jack

  • Output

    1x HD/SD-SDI loop-output
    1x Composite BNC loop-output

  • Signal Format

    HD-SDI: 1.485 Gbps (supports 1080i60/50, 720p60/50, 1080p30/25/24
    SD-SDI: 270 Mbps (supports 576i / 480i)
    HDMI: 1080p60/50/30/25, 1080p24, 1080i60/50, 720p60/50, 576p/i, 480p/i
    Composite: PAL/NTSC/SECAM

  • Power Input

    XLR-4P

  • Working Voltage

    DC 12 V / 2 A or 6.5 - 17 V battery

  • Rated Power

    15W max

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium ion

  • Battery Quantity

    1

  • Battery Type

    Non universal

  • Dimensions

    7.55x5.47x1.85" (19.17x13.89x4.69cm)

  • Weight

    1.3lbs (0.58kg)

About JVC DT-X71HI 7" On-Camera Field Monitor, 1024x600 Resolution, 900:1 Contrast Ratio, 2 SDI Input with 1 Loop-Out, 1 HDMI, RCA L/R Audio Input

A robust and high-quality addition to your video recording setup, the DT-X71HI 7" On-Camera Field Monitor delivers superior image clarity with its 1024x600 resolution. This portable monitor offers a wide H/V viewing angle of 160/160, ensuring consistent image quality from all perspectives. With a high contrast ratio of 900:1, it provides vibrant colors and sharp contrasts, enhancing your viewing experience.

Equipped with front and rear dual TALLY lights, this user-friendly monitor ensures optimal visibility in various lighting conditions. It features a Canon DSLR scale zoom-in and video flip function, providing flexibility and control over your video output. The monitor also allows for custom video title editing and safety mark display, adding a layer of personalization and safety to your recordings.

The DT-X71HI stands out for its versatility, accepting two HD/SD-SDI, one HDMI, and one Composite video input. It also includes a stereo audio input, allowing you to integrate audio seamlessly into your video setup. With an HD/SD-SDI loop-through output, this monitor facilitates easy and efficient signal routing.

Powering the DT-X71HI is a breeze, thanks to its 4-pin XLR 12V DC connector. Alternatively, it can be powered using a snap-on 7.4V IDX SSL-JVC50 battery (optional), the same battery compatible with the GY-HM600/650 cameras. This makes the DT-X71HI a perfect companion for on-the-go videographers and photographers who require a reliable, high-resolution monitor for their professional needs.

JVC DT-X71HI 7" On-Camera Field Monitor, 1024x600 Resolution, 900:1 Contrast Ratio, 2 SDI Input with 1 Loop-Out, 1 HDMI, RCA L/R Audio Input Features

  • Two SDI inputs and a loop-output
  • HDMI input
  • Composite BNC input with loop-output
  • RCA L/R audio input
  • 1024 x 600 resolution
  • 400 nit brightness
  • 900:1 contrast ratio
  • 160deg. viewing angle
  • Front and rear 3-color TALLY lights (RJ-45 on the rear)
  • 3 assignable function buttons

Warranty Information

This used item has a FREE 180-day warranty. See details.

Key Features

  • Experience sharp visuals on the 7" JVC field monitor with its detailed 1024x600 resolution.
  • Achieve optimal viewing with a 900:1 contrast ratio, ensuring deep blacks and bright whites on screen.
  • Connect various devices using dual HD/SD-SDI inputs and HDMI for versatile video monitoring.
  • Enjoy flexible audio input with RCA L/R, perfect for on-camera monitoring during shoots.
  • Utilize the loop-through output to chain multiple monitors, streamlining your video production setup.
  • Lightweight at 1.3lbs, this 7" monitor is ideal for on-location shoots, offering portability.
