JVC GY-HM170 Specifications

  • Image Sensor

    1/2.3-inch Back Side Illuminated CMOS Total 12.4M pixels

  • Synchronizing

    Internal synchronization

  • Stabilizer

    Optical image stabilizer

  • Shutter speed

    1/4 - 1/10000

  • Lens

    F1.2 (wide) to F3.5 (tele)
    f=4.67mm to 56.04mm
    35mm equivalent: 29.5mm to 354mm

  • Filter diameter

    62mm

  • Gain

    0, 3, 6, 9, 12, 15, 18,21,24 dB, Lolux(30,36 dB), AGC

  • ND filter

    none , 1/4, 1/16

  • LCD display

    3.5-inch 920 k pixels, 16:9

  • Viewfinder

    0.24-inch 1.56 M pixel, 16:9

  • Recording media

    2x SDHC/SDXC memory card (4K:UHS-1 U3 HD:50Mbps Class10, MOV HDClass 6 AVCHD Class4)

  • Video recording - Video codec

    MPEG-4 AVC/H.264 (4K/HD) ,AVCHD(HD/SD)
    File format : MOV(H.264), MTS(AVCHD)

  • Video recording - 4K(H.264)

    NTSC setting: 3840 x 2160/29.97p, 23.98p
    PAL setting: 3840 x 2160/25p

  • Video recording - HD(H.264)

    NTSC setting: XHQ 422 mode:1920 x1080/59.94p.29.97p,23.98p(50Mbps), XHQ mode: 1920x1080/59.94p,29.97p,23.98p(50Mbps),1920x1080/59.94i,29.97p, 23.98p(35Mbps) 1280x720/59.94p(35Mbps)
    PAL setting: XHQ mode:1920 x 1080/50p(50Mbps) XHQ mode:1920x1080/50p,50i,25p(50Mbps),1920x1080/50i,25p(35Mbps), 1280x720/50p(35Mbps)

  • Video recording - AVCHD

    NTSC setting: Progressive mode(Max 28Mbps):1920 x 1080/59.94p, HQ mode(24Mbps):1920 x 1080/59.94i, SP mode(17Mbps):1920 x1080/59.94i LP mode(9Mbps):1440 x 1080/59.94i, EP mode(5Mbps):1440 x1080/59.94i
    PAL setting: Progressive mode(Max 28Mbps):1920 x 1080/50p, HQ mode(24Mbps):1920 x 1080/50i, SP mode(17Mbps):1920 x1080/50i LP mode(9Mbps):1440 x 1080/50i, EP mode(5Mbps):1440 x1080/50i

  • Video recording - SD(AVCHD)

    NTSC setting: 720 x 480/59.94i
    SD(H.264)
    NTSC setting: 720 x 480/59.94i

  • Video recording - Proxy(H.264)

    NTSC setting: HQ mode(3Mbps):960 x 540/29.97p, 23.98p, LP mode(1.2Mbps):480 x 270/29.97p, 23.98p
    PAL setting: HQ mode(3Mbps):960 x 540/25p, LP mode(1.2Mbps):480 x 270/25p

  • Audio recording

    LPCM 2ch, 48kHz/16-bit(4k/HD/SD MOV)), AC3 2ch(AVCHD), low 2ch(Proxy)

  • Video output

    AV output (3.5mm mini jack)
    SDI output (BNC)
    HDMI output

  • Audio input

    XLR x2 (MIC,+48V/LINE), 3.5mm mini jack

  • Audio output

    AV output (3.5mm mini jack)

  • Headphone

    3.5mm mini jack

  • Remote

    2.5mm mini jack x1

  • USB

    DEVICEx1(Mass storage)

  • Power

    DC 12V (AC adaptor), DC 7.2V (Battery)

  • Weight

    Approx. 1.11kg (including battery)

  • Dimensions

    153 mm(W) x 112 mm(H) x 299 mm(D)

Related Articles & Videos

NAB Show New York Roundup: Show Photos and New Products

NAB Show New York Roundup: Show Photos and New Products

The NAB Show New York, which until Wednesday was known as CCW 2015, has just wrapped up its trade show at the Javits Center in New York City. Covering TV, satellite, film, online video, live events, corporate A/V, production and post, this NAB-sponsored show gave content providers a chance to see...

Read more

About JVC GY-HM170U 4KCAM Compact Handheld Camcorder - (233 Hours) SKU#1697700

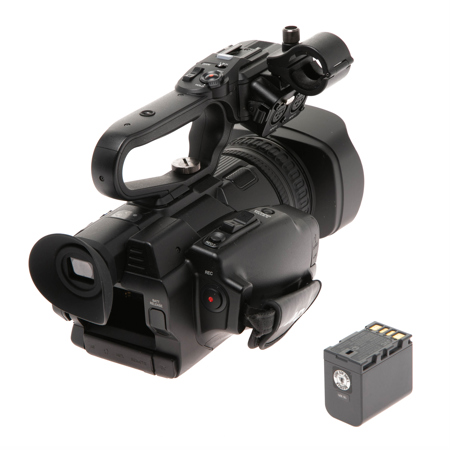

JVC GY-HM170U 4KCAM Compact Handheld Camcorder with Integrated 12X Lens
If you’re looking for a compact handheld camcorder that’s capable of shooting 4K, consider the JVC GY-HM170U. Don’t let its small size fool you, the JVC GY-HM170 is a fully functional high performance Ultra HD camcorder that’s capable of shooting 4:2:2 Full HD at 50Mbps. The JVC GY-HM170U has an integrated 12x Ultra HD lens with a 35mm equivalent zoom range of 29.5-345mm. The Dynamic Zoom combines optical zoom and pixel mapping to extend its zoom capabilities up to 24x in extended mode. The entire package powered by a 1/2.3-inch 12.4MP CMOS sensor. The JVC GY-HM170U also offers some advanced features including dual SDCH/SDXC card slots allowing you to option to simultaneously record to either cards or use relay recording to seamlessly record from card to another allowing you to have continuous shooting time that’s only limited by the number of cards you have available. The JVC GY-HM170U records in both Ultra HD, Full HD, or in compressed H.264 for web-ready files.

Key Features

  • Single 1/2.3-inch CMOS image sensor with 12.4 million pixels
  • High quality integrated 12x F1.2-3.5 zoom lens (35mm equivalent: 29.5-354mm)
  • Dynamic Zoom in HD mode
  • Combines optical zoom and pixel mapping to create seamless and lossless 24x zoom.
  • 4K Ultra HD recording (150 Mbps, 24/30p) to SDXC(UHS-I Speed class3) card
  • 4:2:2 Full HD (24-60p) recording at 50Mbps
  • Live 4K UHD output via HDMI connector
  • Built-in stereo microphone
  • Dual SDHC/SDXC slots
  • Dual, backup and continuous recording


If you’ve been looking for a future-proof handheld camcorder that was budget-friendly, the JVC GY-HM170U has all the right features at a price that’s hard to beat. With the ability to work in a variety of file formats including AVCHD and Quicktime, the JVC GY-HM170U has the flexibility to meet your editing demands.


From the Manufacturer

JVC GY-HM170U 4KCAM Compact Handheld Camcorder with Integrated 12x Lens
Don't let its small size fool you! The JVC GY-HM170 is a fully functional high performance 4K Ultra HD camcorder that's equally capable of shooting 4:2:2 Full HD at 50Mbps. Its integrated 12x optical zoom lens and 4K CMOS sensor, deliver razor sharp 4K Ultra HD recordings directly to SDHC/SDXC memory cards. It can even record on 2 cards simultaneously for instant backup or extended recording time. Output live 4K UHD camera signals through the built-in HDMI connector. And its tiny size allows you to shoot in venues that may be unfriendly to larger cameras.

Integrated 12x Ultra HD Lens, 1/2.3-inch CMOS Sensor
Ultra high quality imagery begins with a precision 12x F1.2-3.5 optical zoom lens (35mm equivalent: 29.5-354mm). JVC's 4K CMOS sensor with 12.4M pixels delivers high sensitivity and excellent performance over a wide range of lighting conditions. Details are crisp and accurate throughout the entire image plane. When shooting in the HD mode, Dynamic Zoom combines optical zoom and pixel mapping to create seamless and lossless 24x zoom. This allows the camera to have a long zoom range while retaining its small form factor. Shooters will also appreciate the convenient ND filter wheel: 0, 1/4th and 1/16th positions.

4K Ultra HD Recording at 150Mbps and Live Output
Working with 4K has never been easier! Insert an SDHC or SDXC (UHS-I Speed class3) memory card and record hours of 4K Ultra HD (3840 x 2160) material. Recordings are made using the Quicktime (.MOV) file format and are compatible with many popular editing systems. Connect a 4K Ultra HD monitor with a single HDMI cable, and view the camera's live 4K signal. You can also play back recorded files directly from the camera. The GY-HM170 also downconverts UHD signals to standard HD for output through the built-in HDMI connector.

4:2:2 Full HD recording at 50Mbps
The GY-HM170 records 4:2:2 HD signals up to 60p at 50Mbps making it an ideal camera for general HD production work. 50Mbps files are stored in the Quicktime (.MOV) format for easy editing. Conventional AVCHD (4:2:0) recording is also possible, providing wide editing compatibility in an array of standard HD and SD formats.

Dual SDHC/SDXC Card Slots
Dual SDHC/SDXC card slots make the GY-HM170 a truly versatile camcorder, offering such benefits as simultaneous recording and relay recording. In relay recording mode, you can shoot continuously and seamlessly over and automatically to the other card. And because cards are hot swappable, there is in effect no limit to the continuous shooting time in any mode, even with lower capacity cards.

Web Friendly (Proxy) file formats
Lower resolution H.264 files (480x270p and 960x540p) may be recorded simultaneously with full HD files. These files are significantly smaller than HD files, and thus are very suitable for immediate posting to the web. A file recorded in the 960 x 540 mode is approximately 1/10th the size of a full HD file recorded at 35 Mbps, and therefore takes a fraction of the time to post. The smaller files may be quickly imported to an iPad for easy editing using iMovie or Pinnacle Studio. Transporting video to the web or back to the studio has never been faster.

JVC GY-HM170U 4KCAM Compact Handheld Camcorder - (233 Hours) SKU#1697700 Features

  • Single 1/2.3-inch CMOS image sensor with 12.4 million pixels
  • High quality integrated 12x F1.2-3.5 zoom lens (35mm equivalent: 29.5-354mm)
  • Dynamic Zoom in HD mode combines optical zoom and pixel mapping to create seamless and lossless 24x zoom.
  • 4K Ultra HD recording (150 Mbps, 24/30p) to SDXC(UHS-I Speed class3) card
  • 4:2:2 Full HD (24-60p) recording at 50Mbps
  • Live 4K UHD output via HDMI connector
  • 2 position ND filter (1/4, 1/16)
  • Built-in stereo microphone
  • Dual SDHC/SDXC slots enable dual, backup and continuous recording
  • 3.5-inch color LCD display (920K pixel) with smart focus assist function
  • 0.24-inch color viewfinder (1.56M pixel) with smart focus assist function
  • Wired remote control supported
  • 9 user button assignable functions
  • Includes BN-VF823 7.2V Battery, AC Adapter

What's in the box:

  • JVC GY-HM170U 4KCAM Compact Handheld Camcorder
  • Battery (BN-VF823)
  • AC Adapter
  • Firmware: 0305-0182
