JVC GY-HM890U Specifications

  • Image Sensor

    1/3" 2.2M pixels progressive scan 3CMOS

  • Synchronizing System

    Internal/external synchronization

  • Stabilizer

    Optical image stabilizer

  • Shutter Speed

    1/4 to 1/10000

  • Gain

    -6dB, -3dB, 0dB, 3dB, 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, Lolux (30dB, 36dB), ALC

  • ND Filter

    Clear, 1/4, 1/16, 1/64

  • LCD Display

    4.3" 1.15M pixels

  • Viewfinder

    0.45" 1.22M pixels

  • Recording Media

    2x SDHC/SDXC memory card Class 4/6/10 (Class4 for AVCHD and H.264 SD/Web only)

  • Video Recording

    Video codec: MPEG-2 Long GOP (HD), AVCHD progressive, H.264

  • File Format

    MOV (HD/SD/WEB), MP4 (XDCAM EX)
    MTS (AVCHD progressive), MXF

  • NTSC Recording Mode

    MPEG-2 Long GOP
    NTSC setting: HQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p, 1440 x 1080/59.94i, 1280 x 720/59.94p, 29.97p, 23.98p
    SP mode: 1440 x 1080/59.94i, 1280 x 720/59.94p

  • PAL Recording Mode

    HQ mode: 1920 x 1080/50i, 25p, 1440 x 1080/50i
    SP mode: 1440 x 1080/50i, 1280 x 720/50p

  • AVCHD NTSC Setting

    Progressive mode (Max 28Mbps): 1920 x 1080/59.94p
    HQ mode (24Mbps): 1920 x 1080/59.94i
    SP mode (17Mbps): 1920 x 1080/59.94i
    LP mode (9Mbps): 1440 x 1080/59.94i
    EP mode (5Mbps): 1440 x 1080/59.94i

  • AVCHD PAL Setting

    Progressive mode (Max 28Mbps): 1920 x 1080/50p
    HQ mode (24Mbps): 1920 x 1080/50i
    SP mode (17Mbps): 1920 x 1080/50i
    LP mode (9Mbps): 1440 x 1080/50i
    EP mode (5Mbps): 1440 x 1080/50i

  • HD (H.264)

    NTSC setting: XHQ mode: 1920 x 1080/59.94p, 59.94i, 29.97p, 23.98p (50Mbps)
    UHQ mode: 1920 x 1080/59.94i, 29.97p, 23.98p (35Mbps)
    PAL setting: UHQ mode: 1920 x 1080/50p, 50i, 25p (50Mbps), 1920 x 1080/50i, 25p (35Mbps)

  • SD (H.264)

    NTSC setting: 720 x 480/59.94i (GY-HM850U/HM890U only)
    PAL setting: 720 x 576/50i (GY-HM850E/HM890E only)

  • Web (H.264)

    NTSC setting: HQ mode (3Mbps): 960 x 540/29.97p, 23.98p
    LP mode (1.2Mbps): 480 x 270/29.97p, 23.98p
    PAL setting: HQ mode (3Mbps): 960 x 540/25p
    LP mode (1.2Mbps): 480 x 270/25p

  • Audio Recording

    LPCM 2ch/4ch, 48kHz/16-bit (MPEG-2 Long GOP/H.264), AC3 2ch (AVCHD), ½-law 2ch (Web)

  • Video Input

    SDI input (BNC x1) (GY-HM890 only)

  • Video Output

    Composite output (BNC x 1), 3G SDI output (BNC x 1), HDMI output x 1

  • Audio Input

    XLR 3-pin x 2, (MIC,+48V, LINE)/f3.5mm stereo mini jack x 1

  • Audio Output

    RCA x 2

  • Headphone

    3.5mm mini jack x 2

  • Genlock Input

    BNC x 1

  • Time Code Input/Output

    BNC x each 1

  • Remote

    DIN 6-pin x 1/f2.5mm mini jack x 1

  • USB

    HOST x 1 (Network connection)/DEVICE x 1 (Mass storage)

  • DC Input

    XLR 4-pin x1

  • Power

    DC 12V (10.5V-17V)

  • Power Consumption

    Approx. 28W

  • Operating Temperature

    -20½C to 50½C (14½F to 122½F)

  • Operating Humidity

    35% to 80%

  • Storage Temperature

    -20½C to 50½C (14½F to 122½F)

  • Storage Humidity

    Under 85%

  • Dimensions (LxWxH)

    20.5 x 9.1 x 9.5" (521.0 x 231.0 x 242.3mm)

  • Weight

    Without battery: Approx. 8.9 lbs (4.0kg)
    With battery: Approx. 10.6 lbs (4.8kg)

Related Articles & Videos

NAB Show New York Roundup: Show Photos and New Products

NAB Show New York Roundup: Show Photos and New Products

The NAB Show New York, which until Wednesday was known as CCW 2015, has just wrapped up its trade show at the Javits Center in New York City. Covering TV, satellite, film, online video, live events, corporate A/V, production and post, this NAB-sponsored show gave content providers a chance to see...

Read more

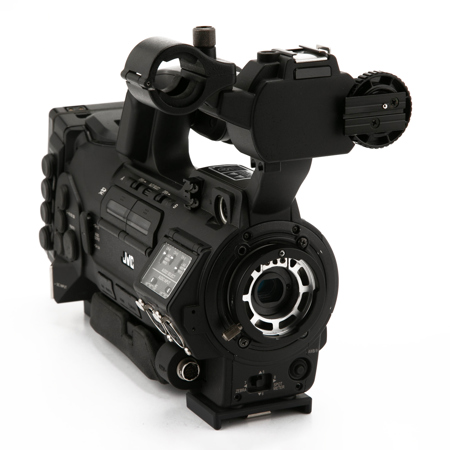

About JVC GY-HM890U ProHD Shoulder Mount Camera - BODY ONLY (6372 Hours) SKU#1689531

How does the JVC GY-HM890U ProHD Compact Shoulder Mount Camera stand out in the world of professional video recording This high-quality, advanced camera is designed with a 3-CMOS system that delivers pristine HD images directly to solid-state memory while simultaneously streaming via Wi-Fi or a plug-in LTE modem.

The GY-HM890U is not just a camera; it's a versatile tool for professional videographers. It features four channels of audio and dual memory card recording at up to 50 Mbps. It also includes an external HD-SDI pool feed input, making it the most feature-rich HD camera JVC has ever offered.

Designed with a well-balanced shoulder-mount form, this camera is perfect for use as an HD studio camera or for multi-camera field production. It's compatible with a full range of studio components, including custom studio sled, zoom and focus controls, CCUs, and an 8.4-inch LCD viewfinder.

The GY-HM890U is equipped with three, 1/3-inch 2.07 effective megapixel CMOS sensors, capturing full 1920x1080 images. With 12-bit processing, F12 sensitivity (50Hz), and an excellent signal-to-noise ratio, this camera ensures superior color reproduction.

This camera supports a variety of file formats including Final Cut Pro (.MOV), XDCAM Ex (.MP4), AS-10 (.MXF), AVCHD (.MTS), or H.264 (.MOV) files, ensuring compatibility with most major NLE systems. It also offers dual codecs for simultaneous recording of a full HD file on one memory card and smaller, web-friendly H.264 files on the other.

The GY-HM890U is also equipped with JVC's exclusive dual codec design, allowing the camera to transmit live HD footage or transfer files in the background while users continue to record footage in their normal workflow. When paired with a GSM modem or Wi-Fi adapter, the camera transmits footage to a facility in real time, maximizing your efficiency.

For broadcasters who use metadata, a built-in GPS allows location information to be recorded. Plus, metadata can be edited on a smartphone or tablet and transferred to the camera via Wi-Fi. The camera is also compatible with Advanced Streaming Services, powered by Zixi, for reliable live content delivery.

The JVC GY-HM890U ProHD Compact Shoulder Mount Camera is a durable, professional-grade tool designed to meet the demands of today's videographers. With its high-definition resolution, interchangeable lenses, and advanced features, it's the perfect choice for those seeking to produce high-quality video content.

JVC GY-HM890U ProHD Shoulder Mount Camera - BODY ONLY (6372 Hours) SKU#1689531 Features

  • 1/3-inch 12-bit CMOS sensors (1920 x 1080 x 3)
  • F11 Sensitivity
  • Compact shoulder design with interchangeable lens options
  • Dual SDHC/SDXC Memory Card Recording (HD+HD, HD+SD, HD+web, etc.)
  • Multiple File Formats for Native Workflows -
    XDCAM EX (.mp4)
    Final Cut (.mov)
    AS-10 (.mxf)
    AVCHD (.mts)
    H.264 (.mov)
  • Virtually lossless H.264 50Mbps recording
  • 4 Position ND Filter (Clear, 1/4, 1/16, 1/64)
  • 0.45-inch LCOS Viewfinder
  • High-Resolution 4.3-inch LCD Monitor
  • Histogram Display and Expanded Focus Functions
  • Focus Assist Function
  • 12 assignable user buttons
  • Variable Frame Rate Recording (Over Cranking, Under Cranking)
  • Wired Remote Control Operation
  • Genlock Input and TC Input/Output
  • HD/SD-SDI external input for recording and streaming (pool feed)
  • 4-Channel Audio System
  • Full complement of Fiber or Multicore studio accessories
  • Secure FTP File Transfer from Shooting Location
  • Tablet or Smartphone Camera Control and monitoring
  • Metadata Editing via Network
  • Advanced Streaming and Cloud Services
  • Delivers reliable HD streams without a backpack or microwave link
  • Single modem (unbonded) plugs directly into camera
  • Camera processor optimizes stream bandwidth
  • Advanced content-aware error correction (up to 30% packet loss)
  • Streamconfidence provides stream and LTE status in VF
  • Compatible with ProHD Broadcaster powered by Zixi

What's in the box:

  • JVC GY-HM890U ProHD Compact Shoulder Mount Camera
  • Anton Bauer Battery Plate
  • Item Note: Missing Shotgun Microphone; Viewfinder
