Used Kino Flo Interview Select LED 20 DMX 2-Light Kit (Univ 120U), Includes 2x LED-150X Select LED 150 DMX Controller, 2x MTP-BC41 Mount with 16mm Baby Receiver Curve, 2x X12-25 25' Extension Cable & KAS-SL22 Ship Case

The Select LED's have the versatility and unique features which make it the perfect imaging tool for use in any studio production or on location. The detachable controller can operate the fixtures remotely with a 25ft (8m) extension cable. For further flexibility, the controller can be attached to the back of the fixture or mounted onto a stand using the ballast mount (MTP-BAL)) accessory. Slim in profile at only 3.5 inches, the portable lightweight fixture can be rigged in tight places or screwed onto a wall or ceiling through its eyelets.

The Select LED lights include dial-in variable color temperature control, full-range dimming and programmable 2700K to 6500K presets. The Select LED's soft white light is flicker-free and does not shift color temperature when dimmed. Light levels are consistent throughout the Kelvin range.

In addition, Kino Flo introduces a Green/Magenta control to match the spectral sensitive curves of the most popular cameras and other light sources. With built-in DMX and Lumen Radio receivers, the Select LED's can be controlled by DMX and/or DMX wireless. Wireless capability is an alternative to DMX cables. Rounding out the Select LED's attributes is the ability to run on universal input from 100-240VAC or 24VDC with as little 1.3A, 120VAC.

LED Controller
• Kelvin presets & custom settings, 2700K-6500K.
• Universal input 100VAC-240VAC or 24VDC.
• Remote Controller.
• Manual & DMX Dimming w/ Auto Terminate.
• DMX wireless (Lumen Radio).
• Green/Magenta control.
• Flicker-free, dead quiet operation.

Select LED Fixture
• Built-in Barndoors
• Removable Honeycomb Louver
• Twist-on, locking Center Mount

Select LED Features
• Kelvin presets
• Dial-in color temperature control between 2700-6500K
• Can use preset buttons to store custom Kelvin settings
• Light levels do not change when selecting Kelvin settings
• Color-correct with high color rendering index (CRI 95)
• Universal Input 100VAC-240VAC or 24VDC
• Energy efficient, draws 1.3A, 120VAC and 7A, 24VDC
• Flicker-free, dead quiet operation
• Full range onboard and DMX dimming
• DMX wireless link (Lumen Radio)
• DMX Auto Terminate
• Green/Magenta control
• No color shift while dimming
• Remote fixture with built-in barndoors
• Fixture includes 90deg. Honeycomb Louver
• Honeycomb louver also available in 60deg.
• Removable Center Mount
• Mounts to stand, light enough to be hand-held

Select LED System
The Select LED System consists of four components: Select LED Fixture, Mounting Plate, Select LED 150 DMX Controller and Extension Cable. It was designed in this manner to allow the greatest flexibility in lighting solutions for challenging situations.

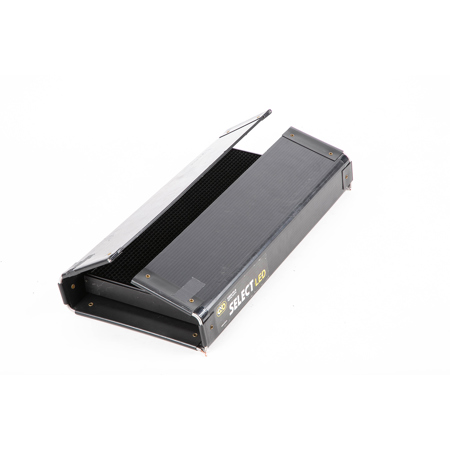

Select LED 20 Fixture
The Select LED fixture includes a removable 90deg. Louver. The fixture has a twist-on mating plate to accept a removable twist-on Center Mount. The remote Controller can also be attached to the back of the fixture with Velcro.

Mounting
One of the design features of the Select LED Fixture is the twist-on removable Center Mount. When it's on, the fixture mounts easily to a light stand; when it's off, the fixture is flat and can be hand-held or hidden in a space too small to place a stand-mounting fixture. When the mount is removed, the grommet holes along the edge of the fixture are designed to allow the fixture to be screwed to a wall or ceiling through its eyelets.

The standard mount comes with a Baby Mount that mounts onto a baby stand. The ball and socket mount allows the fixture to be oriented in a broad range of angles. There is also a short version and mount w/ 3/8" pin (see below) available as accessories . The yellow wire loops are there to provide attachment points for a safety chain.

MTP-BC41 Mount with Baby Receiver Curve (16mm);

The Select LED 150 DMX Controller
The Select LED 150 DMX Controller includes state of the art features with dial-in variable color temperature control, full-range dimming and programmable 2700-6500K presets. It operates flicker-free and does not shift color temperature when dimmed. Light levels are consistent throughout the Kelvin range. The controller can be used remotely with a 25ft extension cable or can easily be attached to the back of the Select LED fixture with Velcro.

With built-in DMX and Lumen Radio receivers, the Select LED's can be controlled by DMX and/or DMX wireless with DMX auto terminate. In addition, the Select LED 150 DMX Controller features a Green/Magenta adjustment to match the spectral sensitive curves of the most popular cameras and other light sources. The energy efficient Select LED 150 DMX Controller runs on universal input voltage from 100-240VAC at only 1.3A (120VAC) (Select LED 30) or can also operate 24VDC using only 7A.

DMX Note:
Each Select LED 150 DMX Controller has an "AUTO TERMINATE" feature. The last fixture that does not have an XLR cable attached to the DMX "Out" port will automatically terminate.

The Select LED 150 Extension cable
Up to 50 feet (2 x 25ft) of extension cable can be used between the fixture and the Controller.

Case
The metal valence ship case (KAS-SL22) is recommended for transport by sea or air. The ship case holds two Select LED systems, two medium duty stands and space for two additional louvers.
